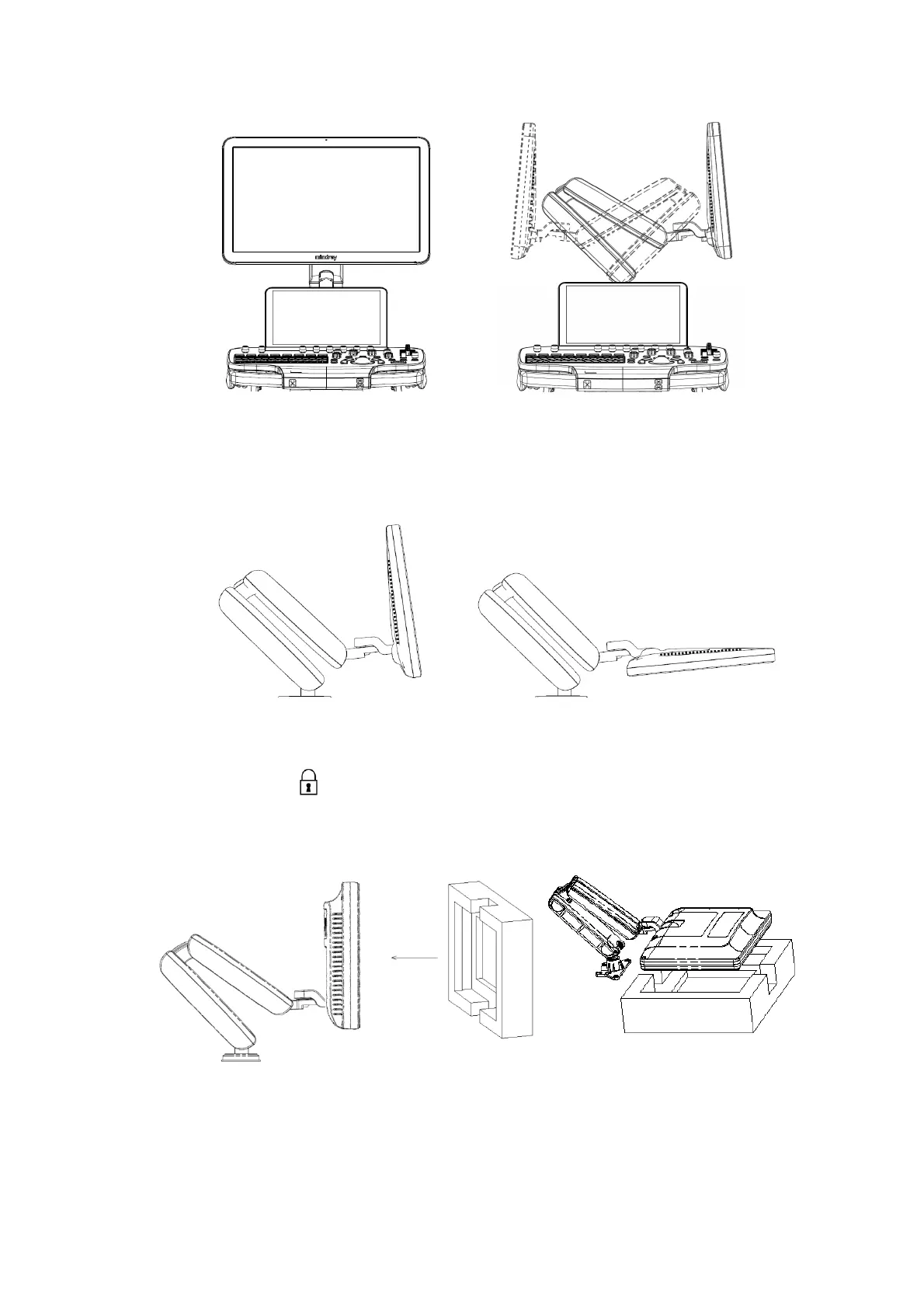

7-2 Adjustments
Tilt the monitor
When positioned vertically, the monitor can be tilted 20° backward and can be tilted forward to
a horizontal position. When transporting or moving the system, keep the monitor in the
horizontal position, as shown below:
Lock the monitor
To move the machine a short distance, install the protective foam (provided in the packaging)
onto the monitor, adjust the monitor and supporting arm to the middle position, and then lock
the locking lever to
state to avoid movement.
