Structure and Assembly/Disassembly 9-43

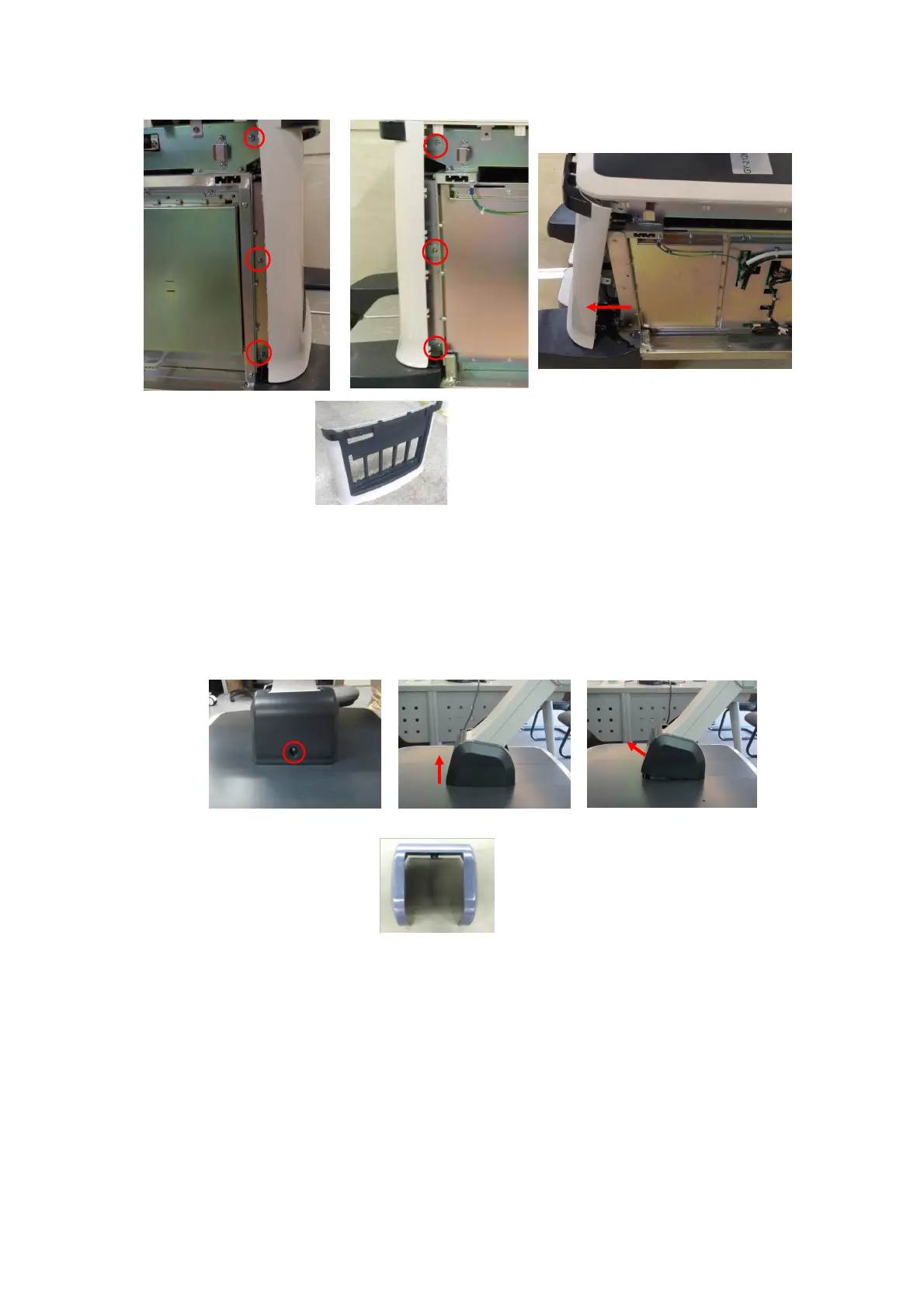

9.3.20 Turbine Cover
The disassembly tool: cross-headed screwdriver (M3, M4).
Unscrew 1 M4 X12 cross panhead screwdriver with the screwdriver (M3, M4) to lift the turbine cover
up towards the arrow in the figure 2, and then remove the turbine cover towards the arrow in figure
3.
9.3.21 Turbine Protective Shell Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.20 Turbine Cover for details.
2. Unscrew 2 M4 X 12 cross panhead screws on both left and right side with screwdriver (M3, M4)
to remove it.
Figure 1
Figure 2
Figure 3
Turbine cov
er
Main unit front cover assembly
