9-44 Structure and Assembly/Disassembly

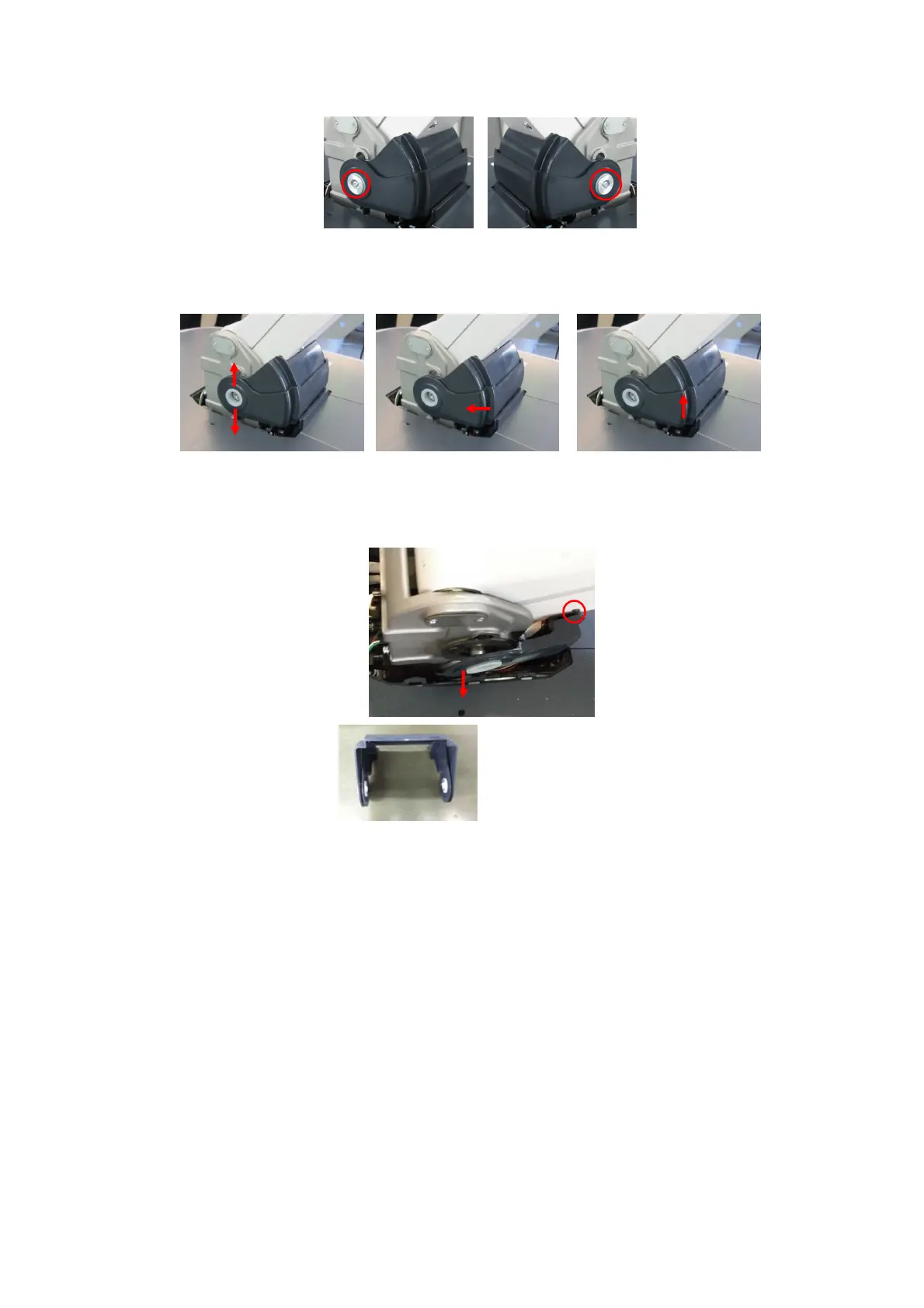

3. Open the pivot of the turbine cover towards the arrow’s direction in figure 1; pull the turbine
cover inside towards the arrow’s direction in figure 2; remove the turbine cover towards the
arrow’s direction in figure 3.
4. Open the pivot of the turbine cover towards the arrow’s direction gently. The stand column of
the turbine cover falls off. Then, remove the turbine cover (FRU).
9.3.22 Main Unit Top Cover/Main Unit Top Cover Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16, 9.3.17, 9.3.18, 9.3.19 and 9.3.20 for details.
2. Unscrew 2 M4 X 12 cross panhead screws with screwdriver (M3, M4) to remove the front cover
of the main unit.
Lift column
Turbine cover assembly (FRU)
Figure 1
Figure 2
Figure 3
