9-42 Structure and Assembly/Disassembly
9.3.19 Main Unit Front-top Cover Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.17 and 9.3.18 for details.

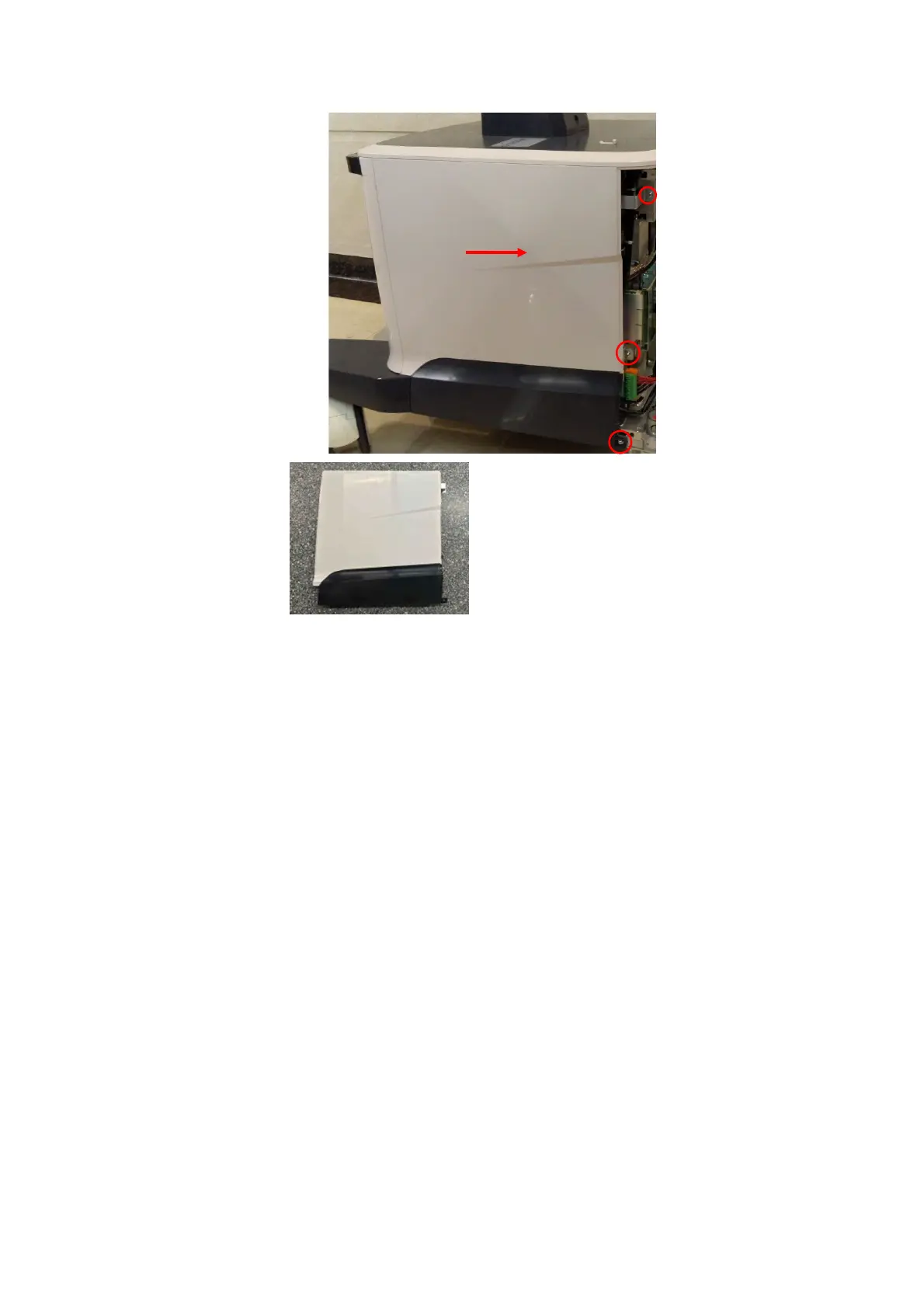

2. Unscrew 6 M4 X 12 cross panhead screws with the screwdriver (M3, M4) to remove the front
cover of the main unit (do not scratch the right/left brake-pedal).
Main unit right cover assembly
