Mindray Eagus R9 User Manual

9-40 Structure and Assembly/Disassembly
9.3.17 Main Unit Left Cover Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16 for details.

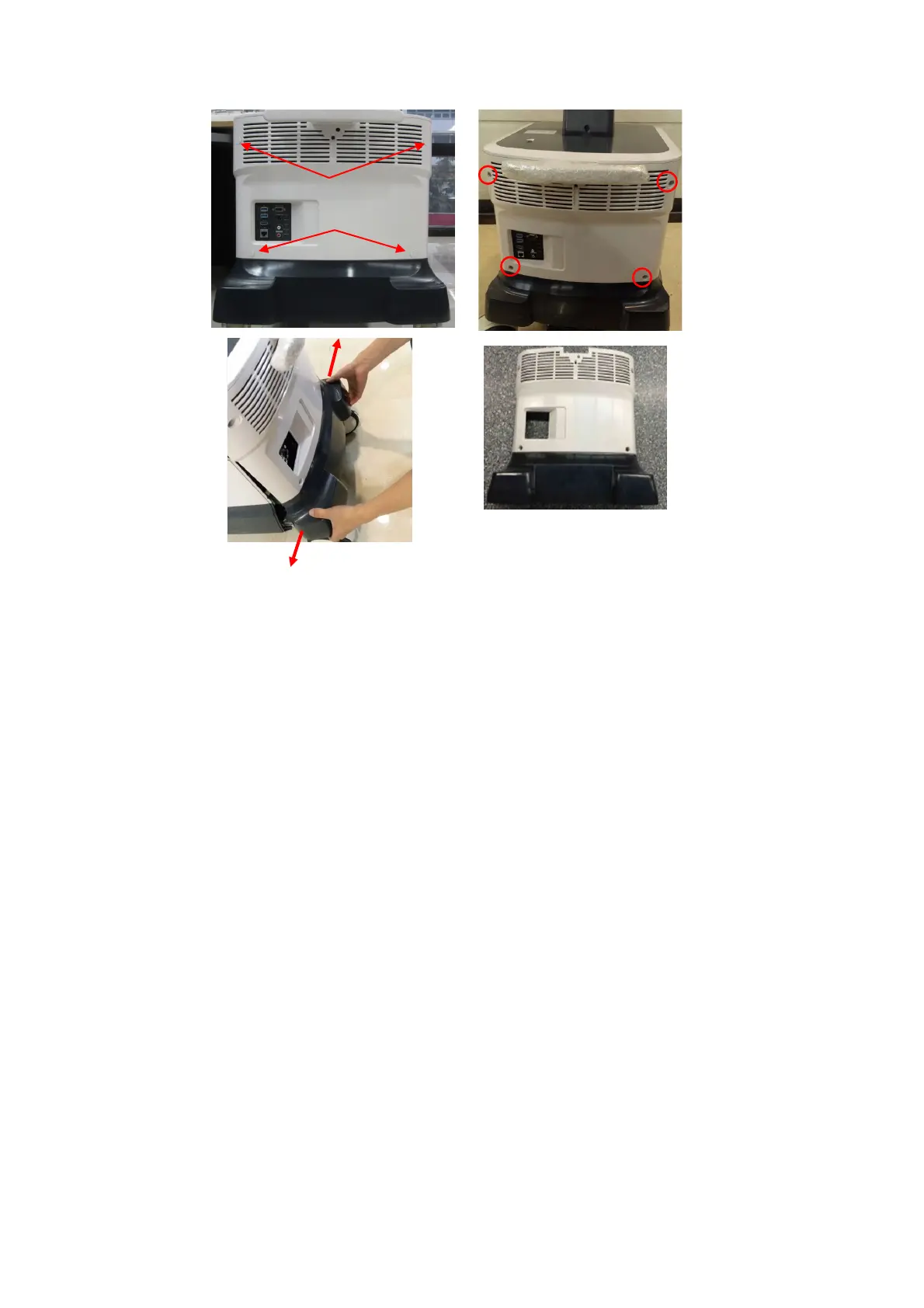

2. Unscrew 3 M4 X 12 cross panhead screws on the left cover with screwdriver (M3, M4) to
remove the left cover of the main unit.
Main unit back cover assembly (FRU)
S
crew pad B
Screw pad C
