Mindray Eagus R9

To Next Page

To Previous Page

Field Replaceable Unit 8-25

No.

Order Number

Part Name

Qty.

Remark

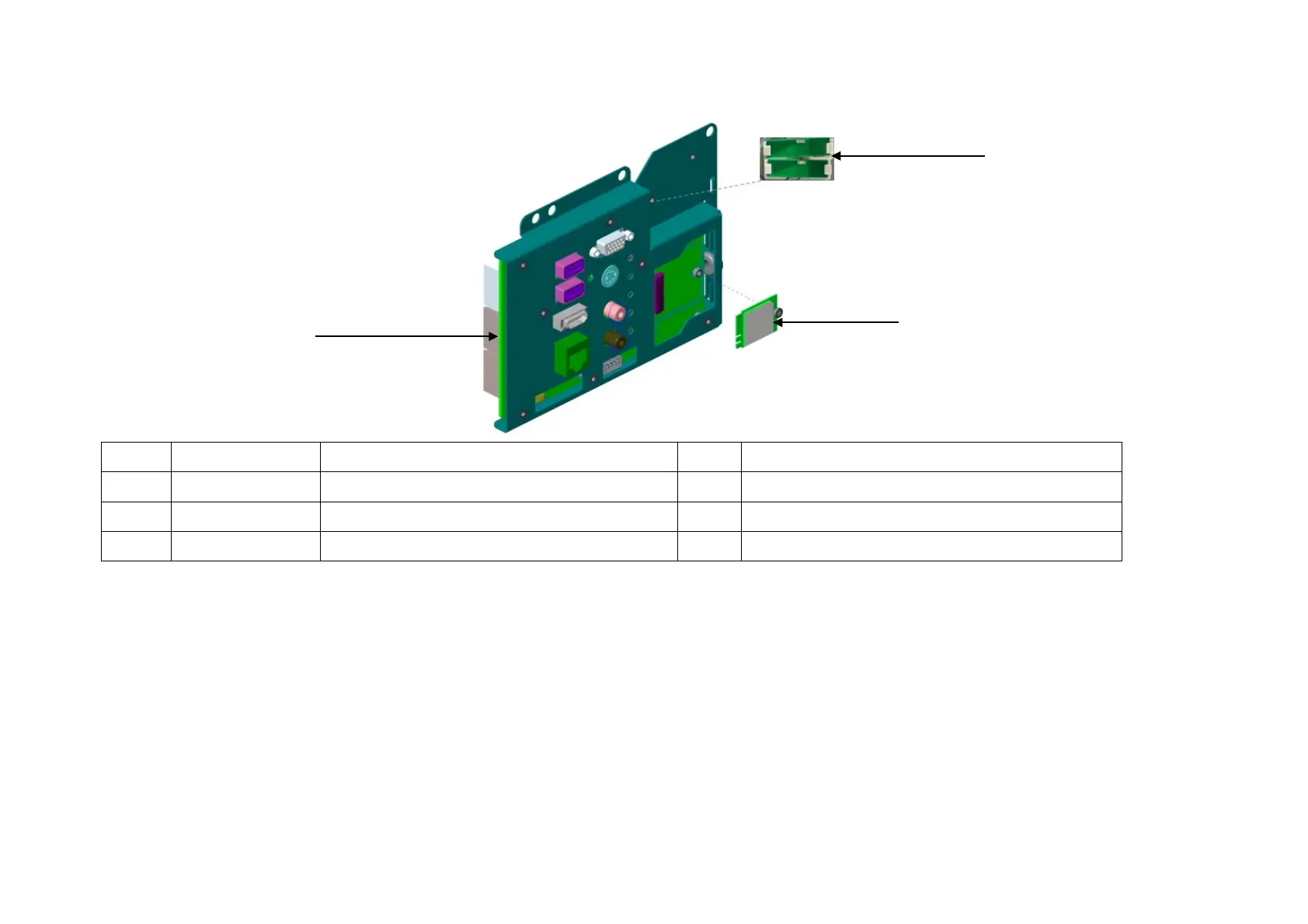

E16-1 115-065482-00 IO Board Assembly(FRU) 1

E16-2

115-051210-00

WIFI Module Kit

E16-3

024-000965-00

M.2 port wifi antenna

E16-3

E16-2

E16-1
