9.3.6.8 General Encoder Board
1. See 9.3.6 Control Panel and 9.3.6.2 for details.
2. Wear the anti-electrostatic glove. Unplug one signal control wire from the general encoder
board and the control panel board.
3. Wear the anti-electrostatic glove. Unscrew 6 PT4X10 panhead tapping screws with the
screwdriver (M3, M4) to remove the single-encoder board (FRU).
eneral encoder caps

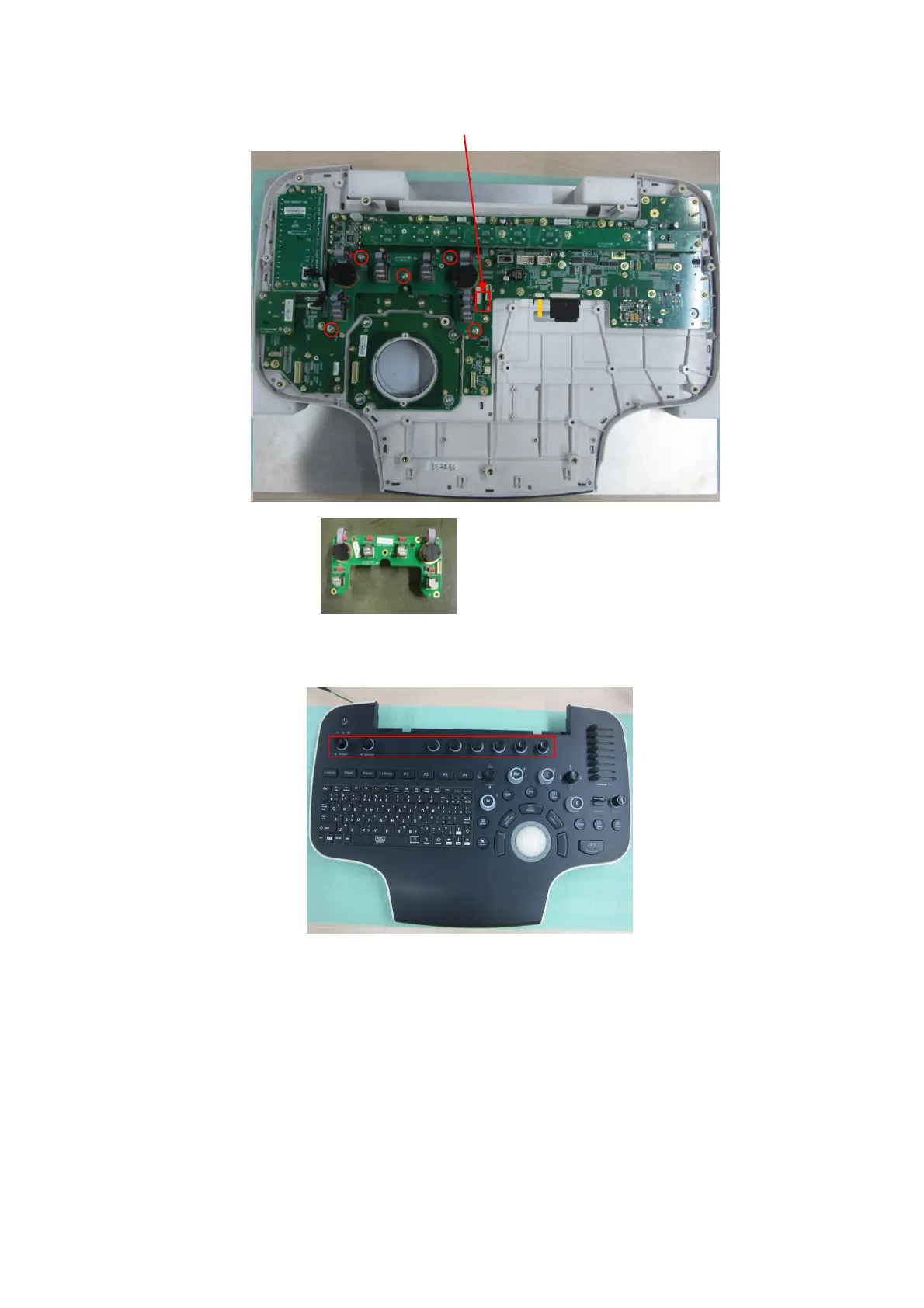

Signal control wire of multi-functional encoder board
ulti-functional
PCBA
