9-52 Structure and Assembly/Disassembly

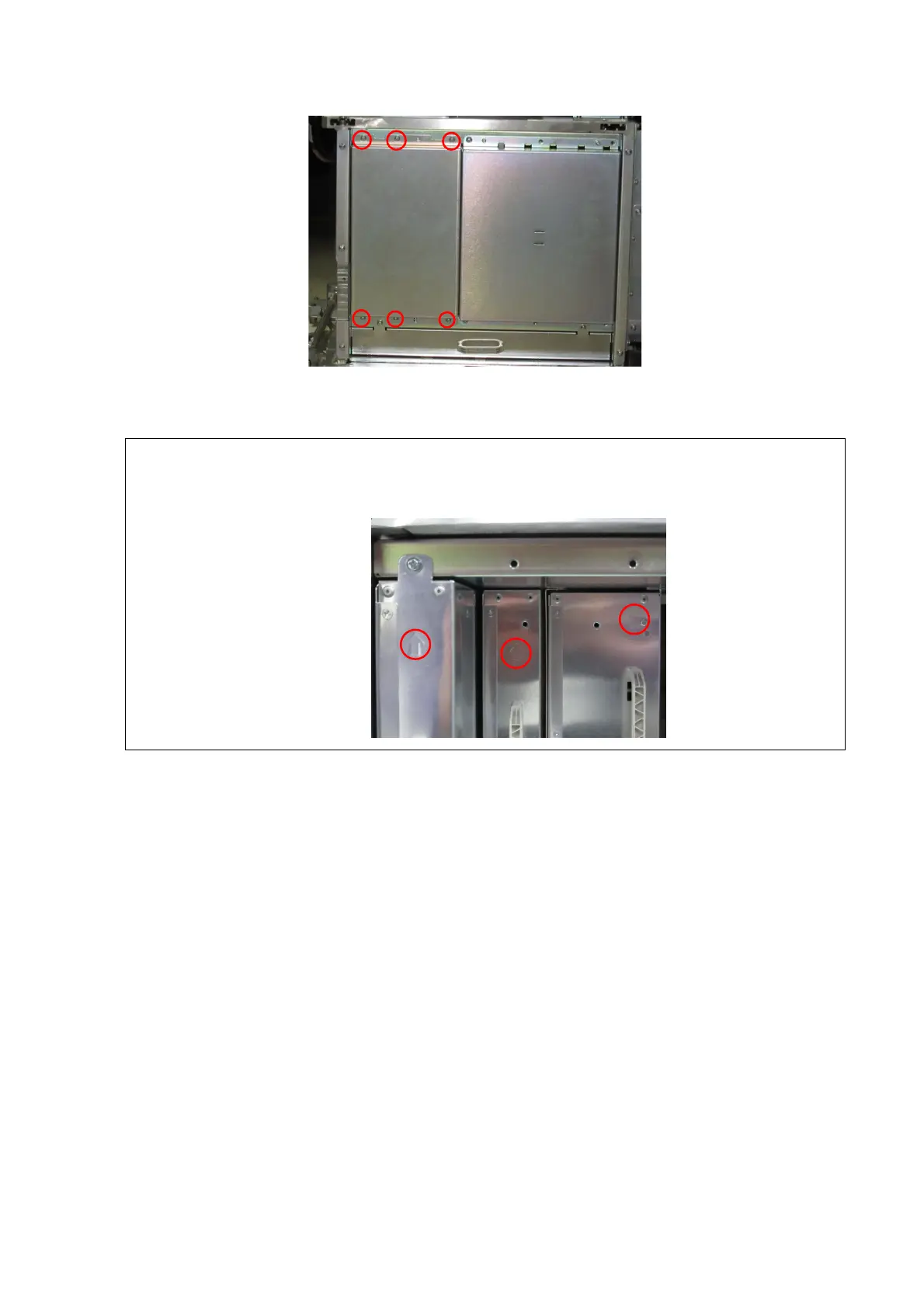

3. Unscrew two small pan-head screws (M4*12) from PHV box assembly with the screwdriver
(M3, M4) to pull the PHV box assembly out (FRU). Unscrew four small pan-head screws
(M4*12) from chassis plate to remove it. Then, pull the DC box assembly (FRU).
Note:
 In case of the distortion of the pin, pull DC box assembly and PHV box assembly out
without shaking.
 The arrow should face upwards when installing.
