Mindray Eagus R9 User Manual

9-66 Structure and Assembly/Disassembly

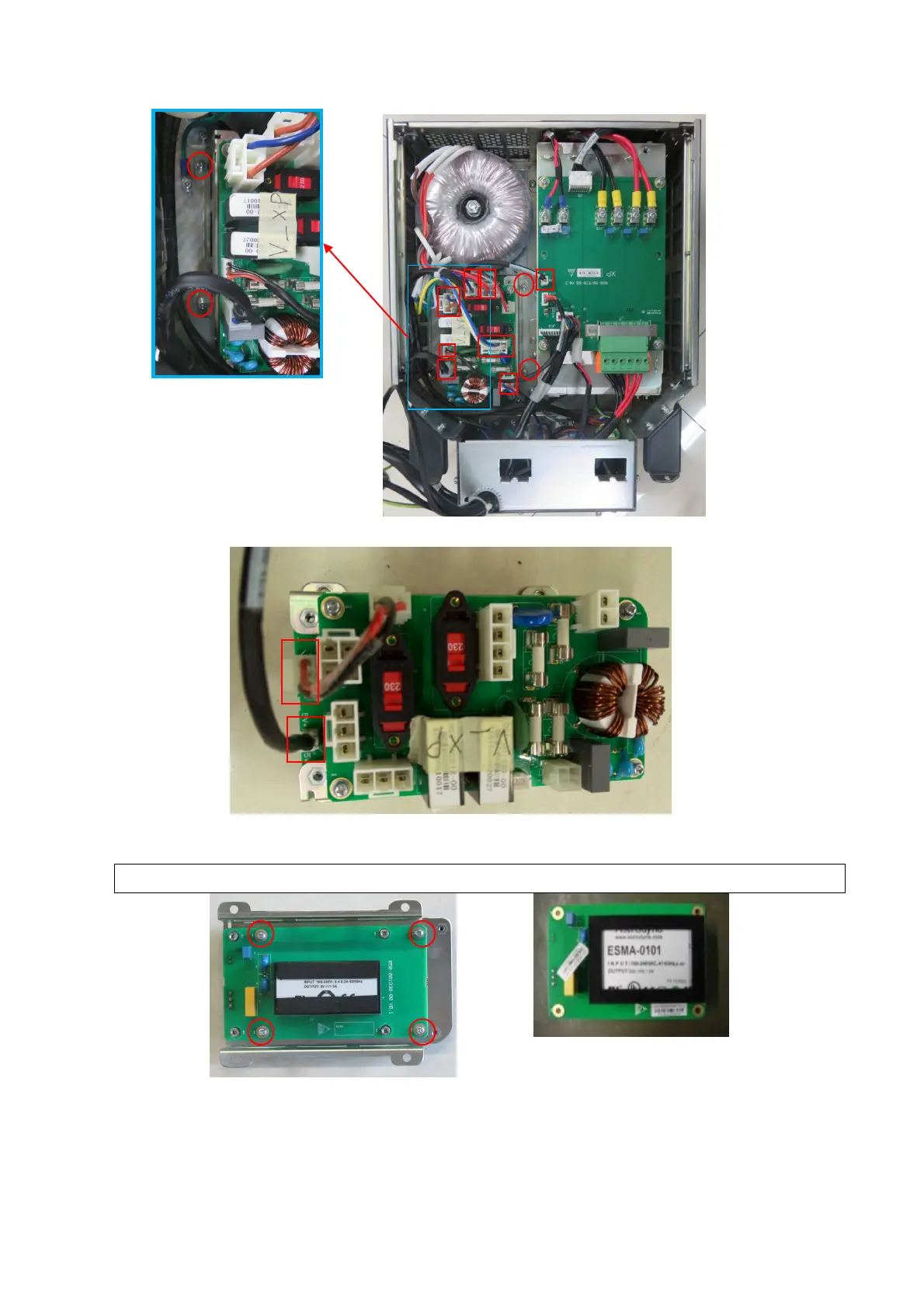

3. Unplug 2 plugs from the 5V board assembly.
4. Unscrew 4 M3 X 8 cross panhead screws with screwdriver (M3, M4) to remove 5V assembly
(FRU).
NOTE
Place the socket according to the figure below when installing in reverse.
9.3.31.4 AC Power Assembly
1. See Chapter 9.3.31 for details.
5V board assembly (FRU)

Mindray Eagus R9 Specifications

General

Brand	Mindray
Model	Eagus R9
Category	Diagnostic Equipment
Language	English
