Structure and Assembly/Disassembly 9-73

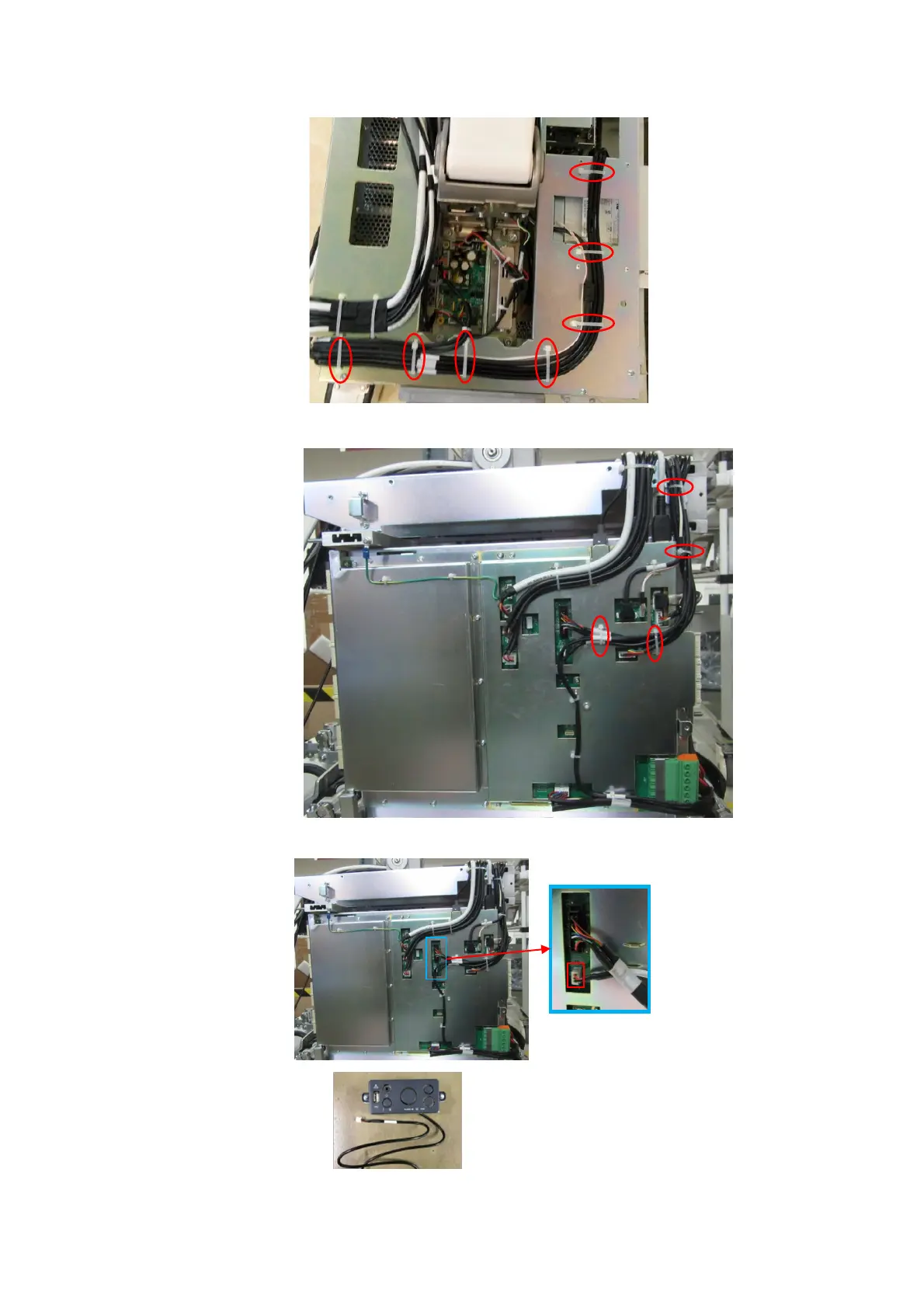

5. Cut 4 tie cables CHS-3X100 with diagonal cutting pliers.

6. Unplug MIC signal cable from the right mother board to remove the output board.

MIC signal cable

ront in assembly

Table of Contents3
