10-10 Installing Options

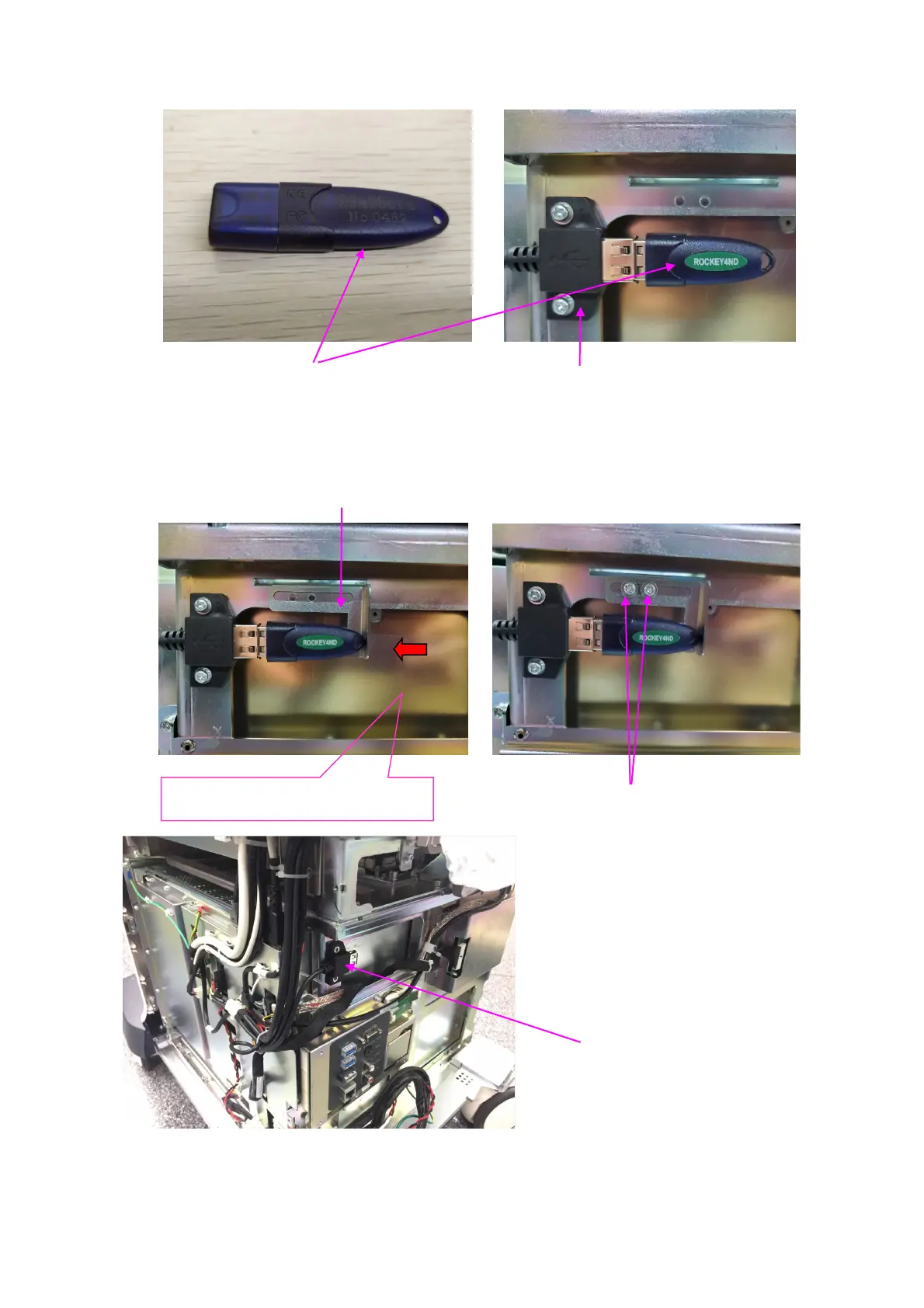

2. Hang the backup plate on the open slot hole, and move it to the left until the flange of the
backup plate is close to the Dongle and there is a tiny gap. Use two M3X8 cross panhead
combination screws to fix the backup plate.
USB port of the ECG module signal
cable on the mother board
M3X8 cross panhead combination screw
(2 pcs)
Backup plate
The flange of the backup plate is close to
the Dongle and there is a tiny gap
USB port of the ECG
module signal cable on the
mother board
