Part II General Information
Structure and Assembly/Disassembly 177

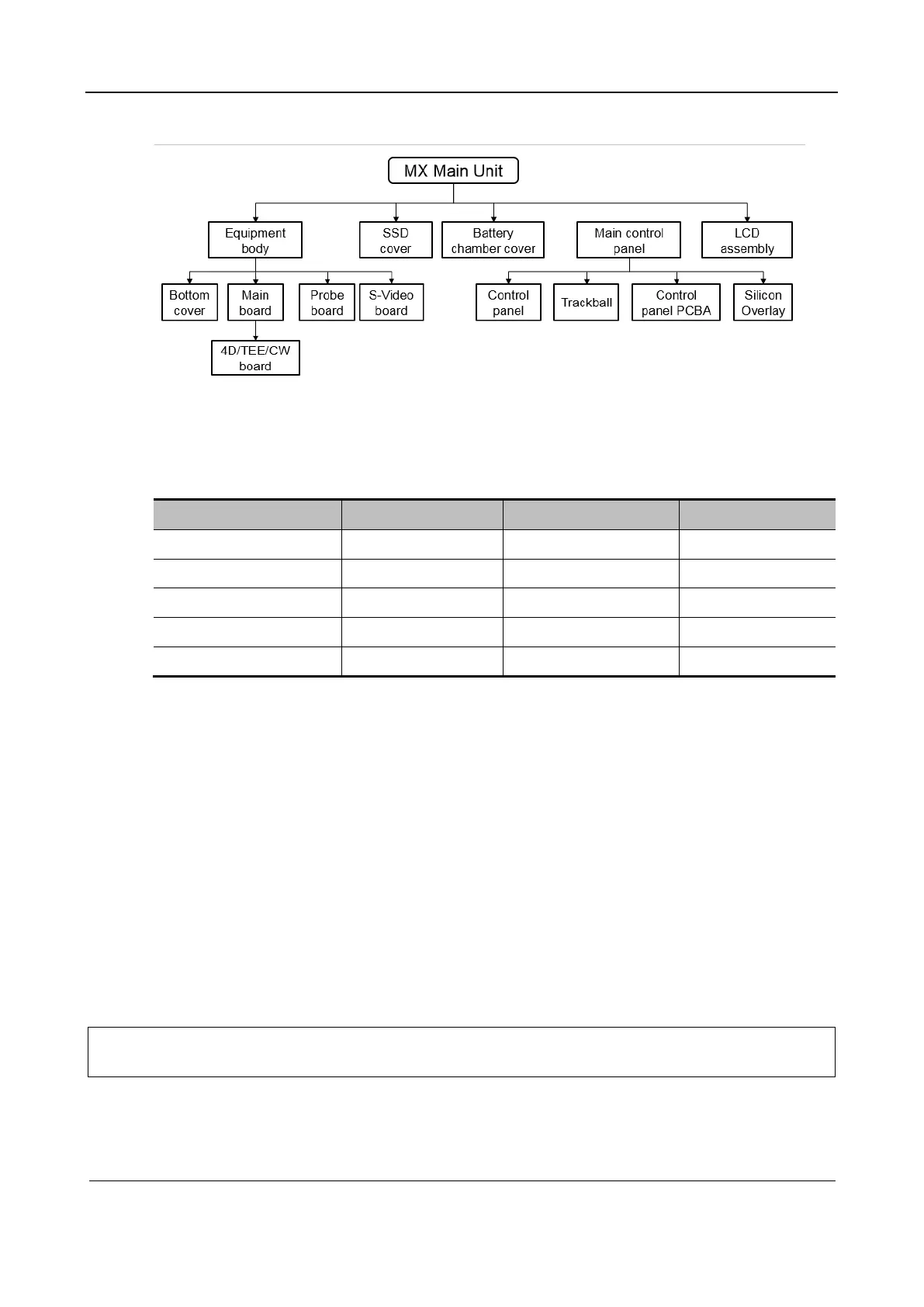

Figure 5-3 Assembly/Disassembly process
5.2.1 Preparations
5.2.1.1 Tools Required
Name Type No. Remarks
Crosshead screwdriver 107 × 75 / M2
Crosshead screwdriver 107 × 75 0000-10-10884 M3
Flathead screwdriver No. 56Φ6.0X200 095-000074-00
Diagonal cutting pliers N-206S 095-000077-00 /
ESD gloves: 1 pair / / /
5.2.1.2 Personnel Requirement
Only technical professionals from Mindray or engineers authorized by Mindray after training can
perform maintenance and check.
5.2.1.3 Disassembly Requirements
Make the following preparations before disassembling the ultrasound equipment.
1. Stop scanning and image capture, shut down the system, disconnect the AC power supply, and
remove the AC power cable.
2. To avoid scratching the surface of the equipment, prepare a soft workbench that is clean without
sundries.
3. Prepare the tools required.
5.2.2 Battery
Note:
You are advised to remove the battery first, and then remove other parts when the
power is down.
1. Remove an M3X8 Nylok screw from the battery compartment cover and then take off the battery
compartment cover along the direction indicated by the arrow.
