Part II General Information
Structure
and Assembly
/Disassembly
178
2.

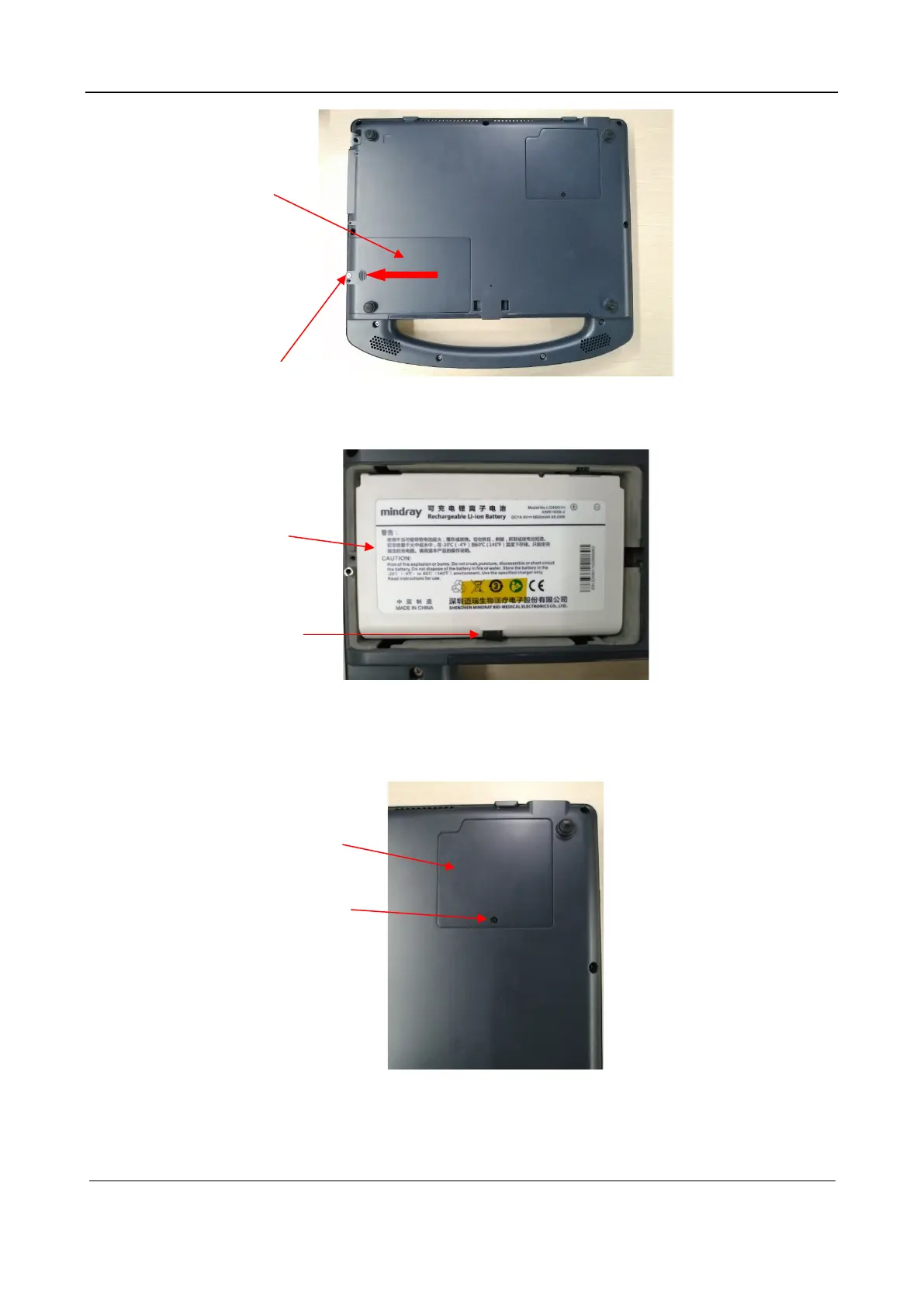

Pull the battery pull tab and take out the
battery
.
5.2.3
SSD C
ard
1.
Re
move the
M2.5X4 plus flat
-
head s
crews from
the SSD cover plate, and then
take off the SS
D
cover plate.
2.
Pull up the 4G and network adapter antenna b
uckl
es.
M3X8 Nylok screw
Battery compartment cover
Battery pull tab
Battery
SSD cover plate
M2.5X4 plus flat
-
head screw
194
196
Table of Contents
Default Chapter
3
Table of Contents
3
Revision History
6
Intellectual Property Statement
7
Statement
8
Warranty Statements
9
Customer Service Department
10
Conventions
11
Safety
12
Meaning of Signal Words
12
Symbols
12
Warning Labels
13
General Symbols
13
Safety Precautions
15
Electric Safety
16
Mechanical Safety
16
Personnel Safety
17
Others
17
Part I Service Scenarios
18
Installation
19
Site Preparations
19
Installation
25
Maintenance
60
Check
68
Software Maintenance
72
Repair
96
System Diagnosis and Support
96
Troubleshooting
107
Update
121
Upgrading the Operating System and Ultrasound Application Software
121
Upgrading Software Functions
121
Upgrading Hardware Functions
124
Upgrading the Probe and Biopsy Bracket
133
Part II General Information
134
Product Specifications
135
Product Overview
135
Technical Specifications
137
Product Principle
139
General Structure of Hardware System
139
Main Board
140
Probe Board
143
Tee/Cw
144
Magnetic Connection Board and IO Interface Board
144
Control Panel
144
Main Display Unit
146
Probe Expansion Board
147
ECG Module
147
Trolley Power Supply
148
Power-Up Process of the Main Unit
152
Probe and Needle-Guided Bracket
154
Probe
154
Needle-Guided Brackets
160
Field Replaceable Unit
177
Explosive View
178
Assembly Explosive View
179
Structure and Assembly/Disassembly
192
System Structure
192
Assembly/Disassembly of the Main Unit
193
Disassembling the Trolley
215
Function and Performance Check
236
Description
236
Checking System Status
236
General Check
237
Function Check
239
Performance Test
246
Part III Appendix
253
Electrical Connection Diagram
254
Description of Self-Test Items
255
Z0101 Test of Communication between PC Module and MF FPGA
255
Z0102 CPU Temperature Test
255
Z0201 DDR Full-Space Read/Write Test
256
Z0202 FPGA Pressure Test
257
Z0203 AFE Test Mode Test
257
Z0204 Power Management Module Communication Test
257
Z0205 Power Status Test
258
Z0206 Communication Monitoring Test
258
Z0207 Network Port Test
259
Z0208 RF Chip SPI Test
259
Z0209 PHV Module Communication Test
259
Z0210 Program-Controlled Power Voltage Test for the PHV Module
260
Z0211 Fixed High Voltage Test for PHV Module
260
Z0212 FPGA Temperature Test
261
Z0301 Fan Speed Test
261
Z0302 Fan Speed Adjustment Test
261
Z0401 Speaker Test
262
Z0501 Wireless Function Test
262
Z0601 4G Module Communication Test
263
Z0701 Control Panel USB Communication Test
263
0702 Function Self-Test for Keys, Encoder, and Trackball
264
Z0703 Key and Trackball LED Self-Test
265
Z0801 Parameter Board I2C Communication Test
266
Z0802 Parameter Board Data Check Test
267
Z0803 Bright Control Test for the Main Display
267
Z0804 Backlight Control Test for the Main Display
268
Z0805 Secondary Screen Board Communication Test
268
Z0806 Optical Sensor Test
269
Z0901 Touch Screen Communication Test
270
Z0902 Brightness Control Test for the Touch Screen
270
Z0903 Backlight Control Test for the Touch Screen
271
Z0904 Touch Function Test for the Touch Screen
271
Z10014D/TEE/CW Board In-Position Test
272
Z1002 TEE Temperature Signal Test
273
Z1003 TEE Angle Signal Test
273
Z1004 CW Mode Pressure Test
273
Z1101 Battery Communication Test
274
Z1102 Battery Health Status Test
274
Z1201 ECG Board Information Test
274
Z1202 ECG Board Self-Test
275
Z1301 File System Test
275
Electrical Safety Maintenance
276
Phantom Usage Illustration
289
Ultrasound Phantom Model KS107BD
289
Ultrasound Phantom Model KS107BG
290
