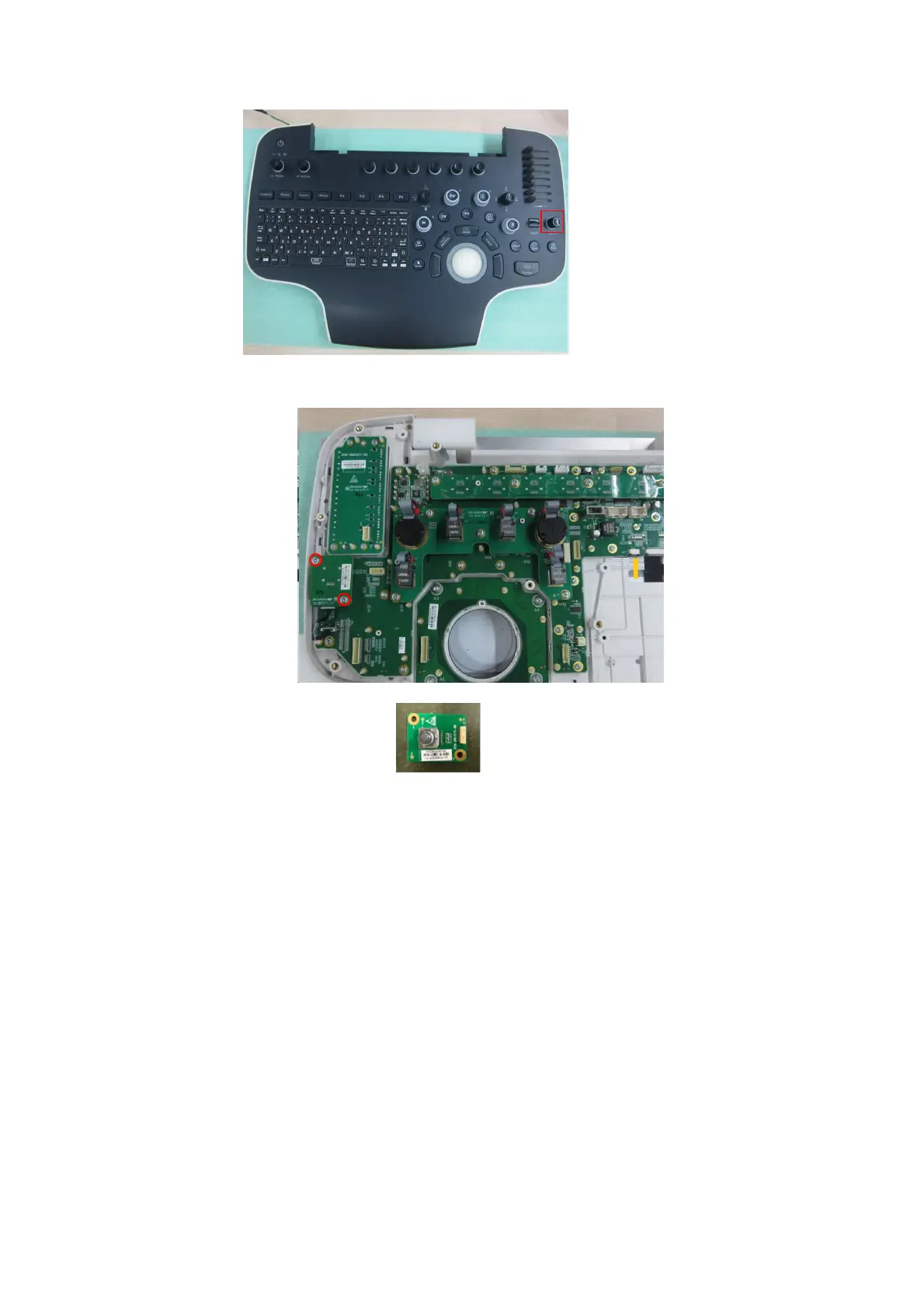

9-14 Structure and Assembly/Disassembly
2. Wear the anti-electrostatic glove. Unscrew 2 PT4X10 panhead tapping screws with the
screwdriver (M3, M4) to remove the single-encoder board.
9.3.6.7 Multi-functional Encoder Board
1. See 9.3.6 Control Panel and 9.3.6.2 for details.
2. Wear the anti-electrostatic glove. Unplug the signal control wire from the multi-functional
encoder board and the control panel assembly. Unscrew 5 PT4X10 cross panhead tapping
screws with the screwdriver (M3, M4) to remove the multi-functional encoder board PCBA.
Single encoder board PCBA
General
encoder cap
