Mindray Nuewa R9 Elite User Manual

Structure and Assembly/Disassembly 9-15

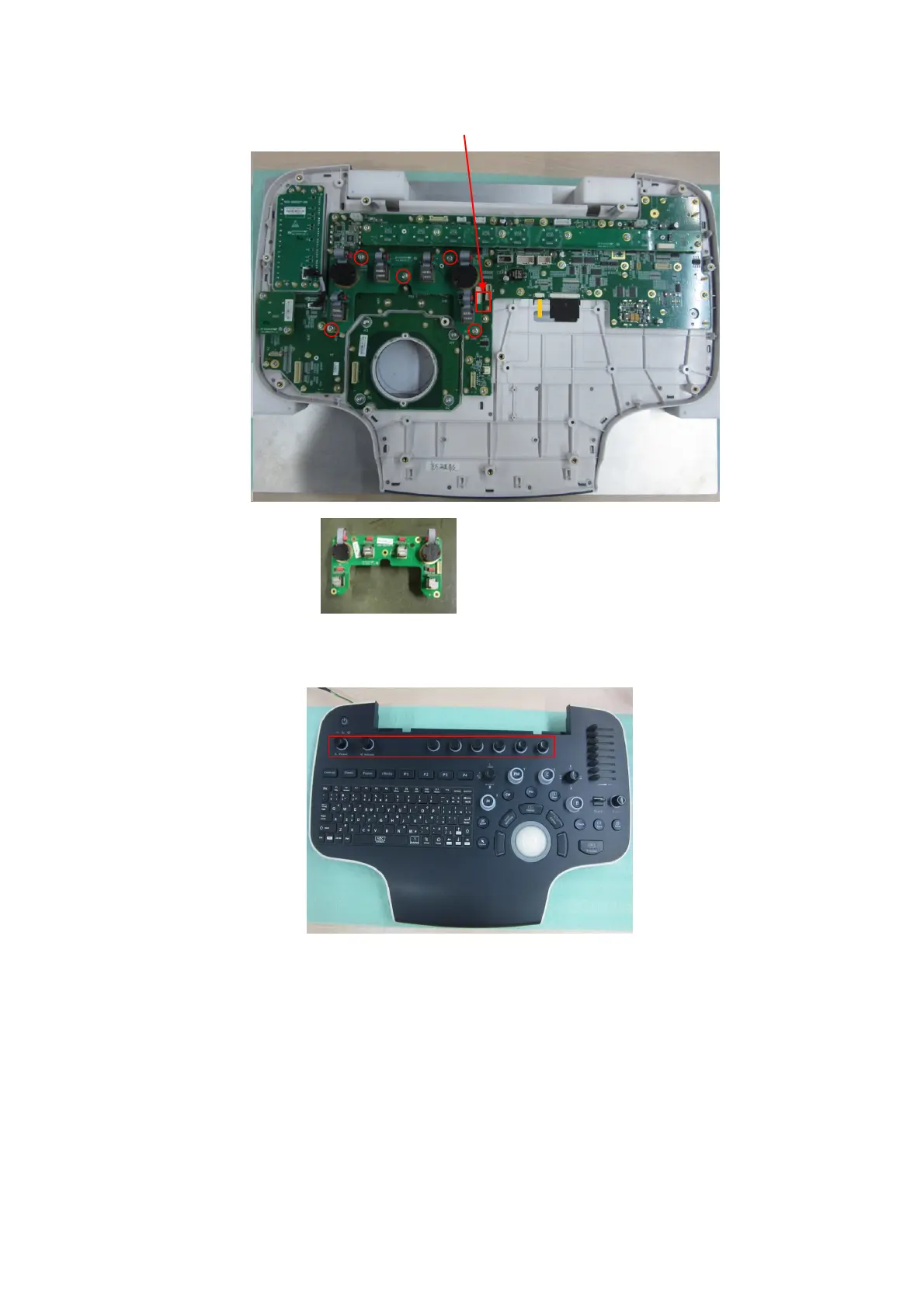

9.3.6.8 General Encoder Board
1. See 9.3.6 Control Panel and 9.3.6.2 for details.
2. Wear the anti-electrostatic glove. Unplug one signal control wire from the general encoder
board and the control panel board.
3. Wear the anti-electrostatic glove. Unscrew 6 PT4X10 panhead tapping screws with the
screwdriver (M3, M4) to remove the single-encoder board (FRU).
G
eneral encoder caps
Signal control wire of multi-functional encoder board
M
ulti-functional
encoder board
PCBA

Mindray Nuewa R9 Elite Specifications

General

Brand	Mindray
Model	Nuewa R9 Elite
Category	Diagnostic Equipment
Language	English
