9-16 Structure and Assembly/Disassembly
9.3.6.9 Keypad
1. Refer to 9.3.6 Control Panel Assembly for details.

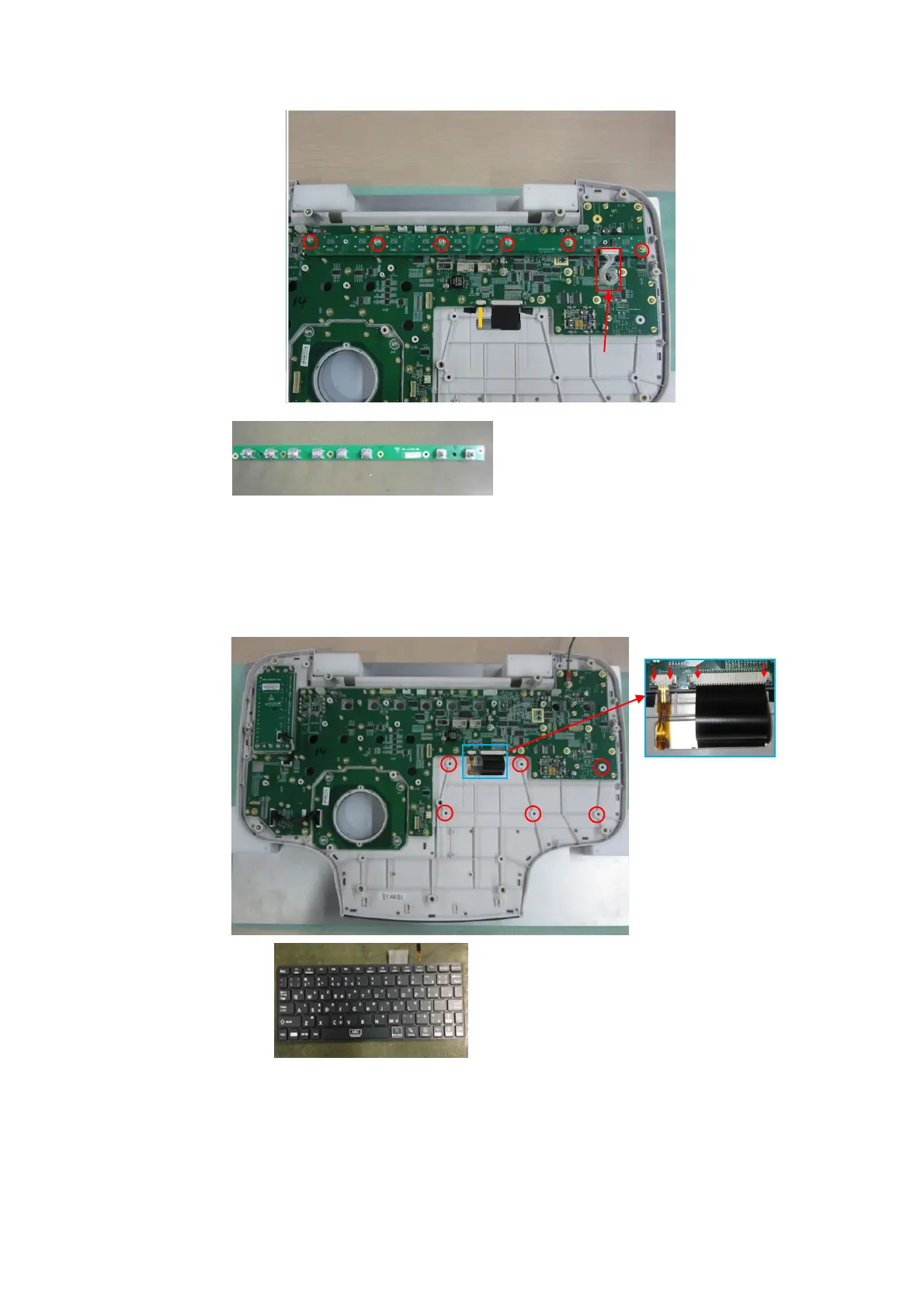

2. Wear the anti-electrostatic glove. Push the clip of the keypad out towards the arrow’s direction,
and pull the wire out. Unscrew 6 M3 X 8 cross panhead screws from the control panel
assembly with screwdriver (M3, M4) to remove the keypad.
9.3.6.10 TGC Board
1. Refer to 9.3.6 Control Panel Assembly for details.
mall keyboard (FRU)
Signal control wire of multi-functional encoder board
General encoder board (FRU)
