9-88 Structure and Assembly/Disassembly

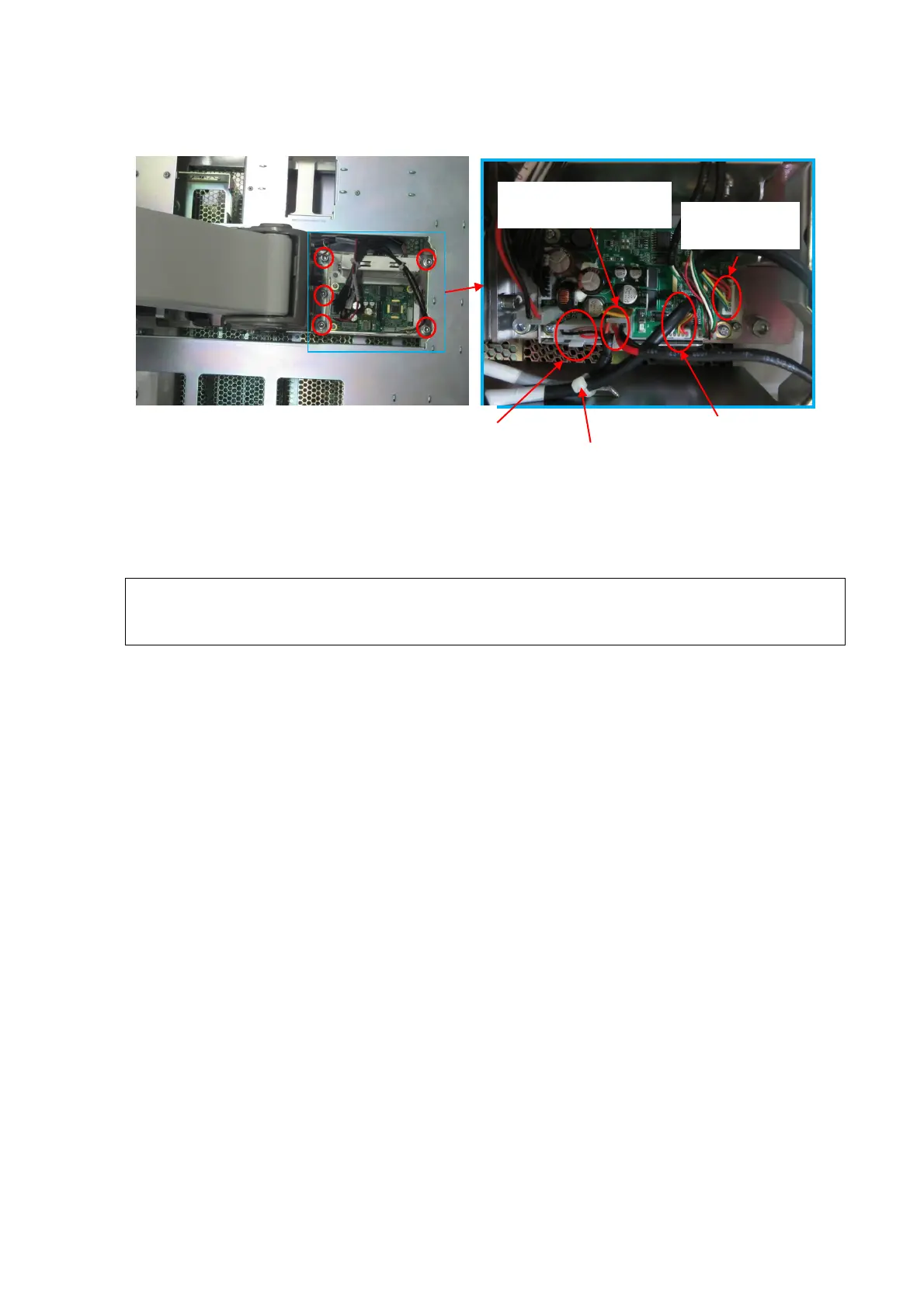

3. Cut the cable tie CHS-3X100 with the diagonal cutting pliers. Unplug 4 plugs from the
descending control panel.
4. Unscrews 7 M6 X 20 round inner head screws (with the pad) with the M6 spanner to remove
the motor-driven lift mechanical assembly (equipped with the position signal cable,
Motor-driven lift mechanical assembly and the lift control PCBA assembly), power transmitting
cable of the magnet and control signal cable of the gliding.
Insert 7 M6 X 20 round inner head screws (with the pad) into fixing hole of
motor-driven lift mechanical assembly when installing in reverse, and then install
the electrical ascending/descending assembly.
able tie CHS-3X100
nterrupt control
Control signal cable
of the gliding
ower transmitting
AC_DC 24V power
output cable
