1.2.1.2 WMTS (608 MHz) Telemetry

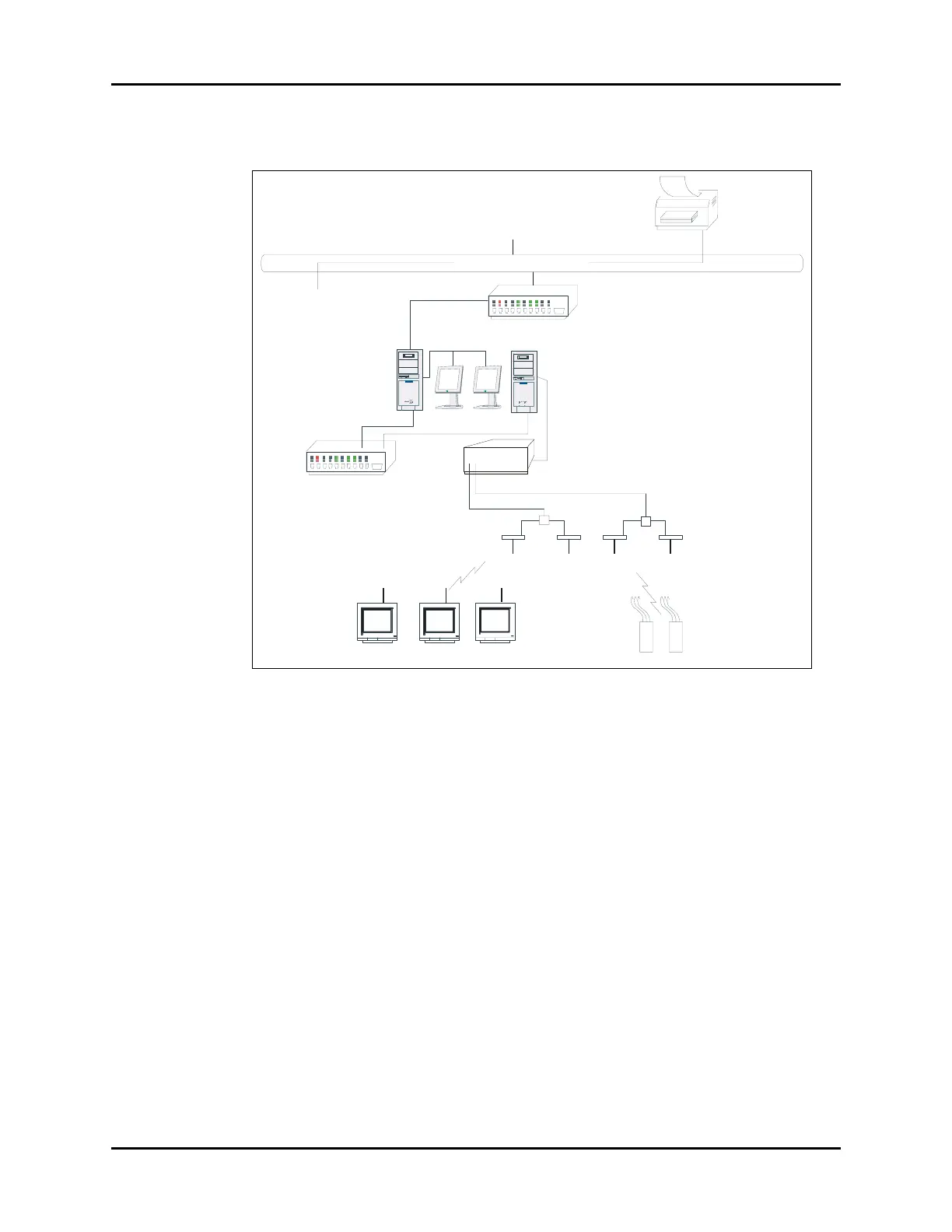

FIGURE 1-3 Panorama Patient Monitoring Network (WMTS)
Printer
Switch
Wireless
Tele me tr y
Server
Server Server
Panorama
Central
Station
16 Patient
Switch
Panorama Wireless Transceiver
Coax
Cable
RF Antenna
Network
RF
Splitter
RF
Splitter
Coax
Cable
Panorama
Antenna
Passport 2 Passport 2 Spectrum -
Telepack
Panorama Central Network C-LAN
