Panorama® Service Manual 0070-10-0634 6 - 3
Connections and Configuration Introduction
Use the following figure as a reference for proper component connection to the Central
Station.

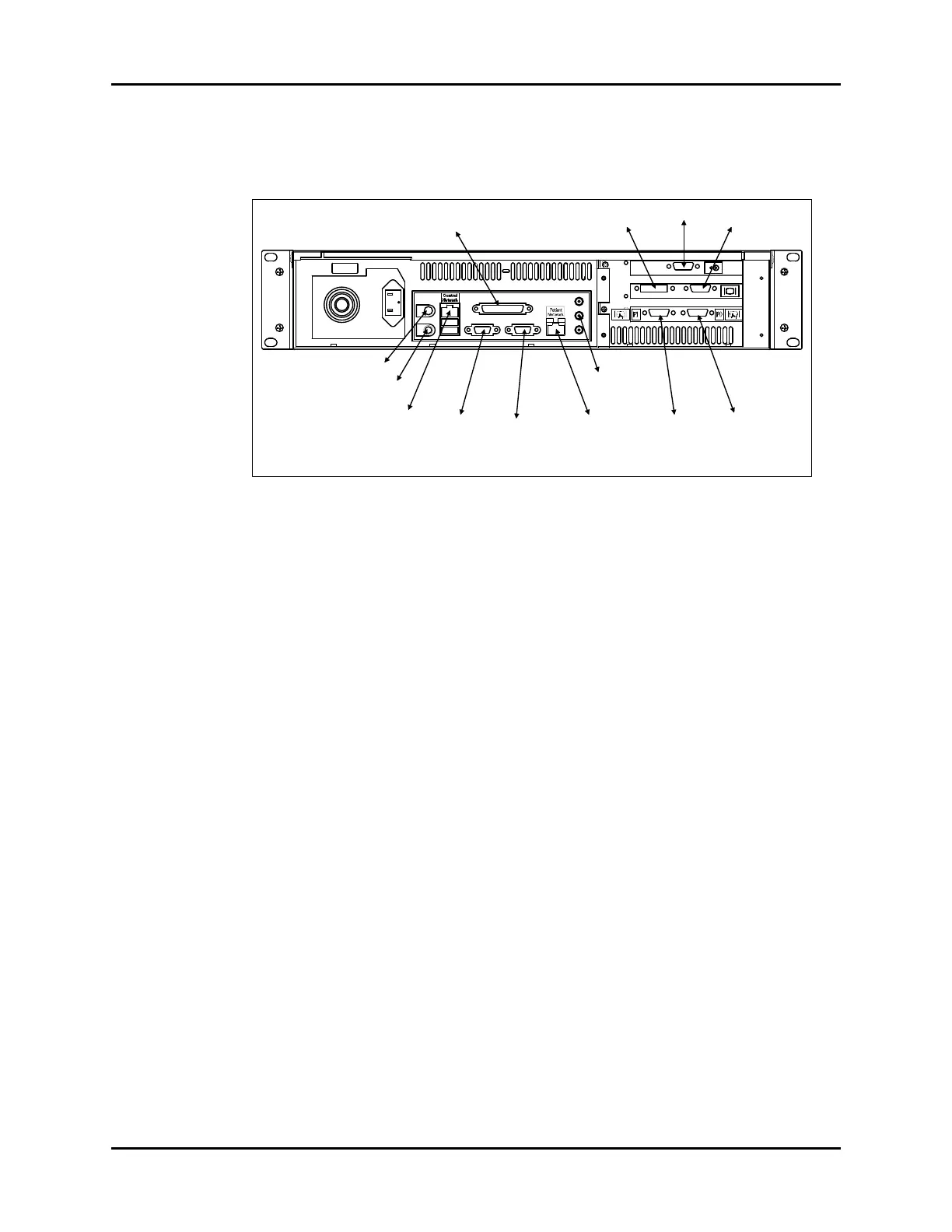

FIGURE 6-1 Panorama Central Station (2U 0998-00-0700-01)
6.1.3 2.4 GHz - ISM Telemetry Installation (Wireless)
The Panorama Wireless Telemetry Server can be located at the nurses’ station along with the
Central Station or in a remote location such as a closet.
• Panorama Wireless Telemetry Server
• Instrument Transceivers
• 24 Port switch for Wireless Telemetry Network
Along with the components listed above, the Telemetry components required are:
• Wireless Network
• Access Points
•Antenna
• CAT 5 Cable (STP)
• DC Power Distribution System
6.1.4 608MHz WMTS Telemetry Installation (Wireless)
• Panorama Wireless Telemetry Server
• Antenna Network
•Antenna
• RG/RG11 Coax
• RF Splitter
Keyboard
Mouse
Audio
Touch
Screen1
(PO)
Touch
Screen2
(P1)
Monitor 1
Monitor 2
Licensing Key
Not Used
(VGA)
Serial Port1
(Comm Port 1)
ESD Protector and
ProgrammingCable
Not Used
C-LAN
E-LAN
