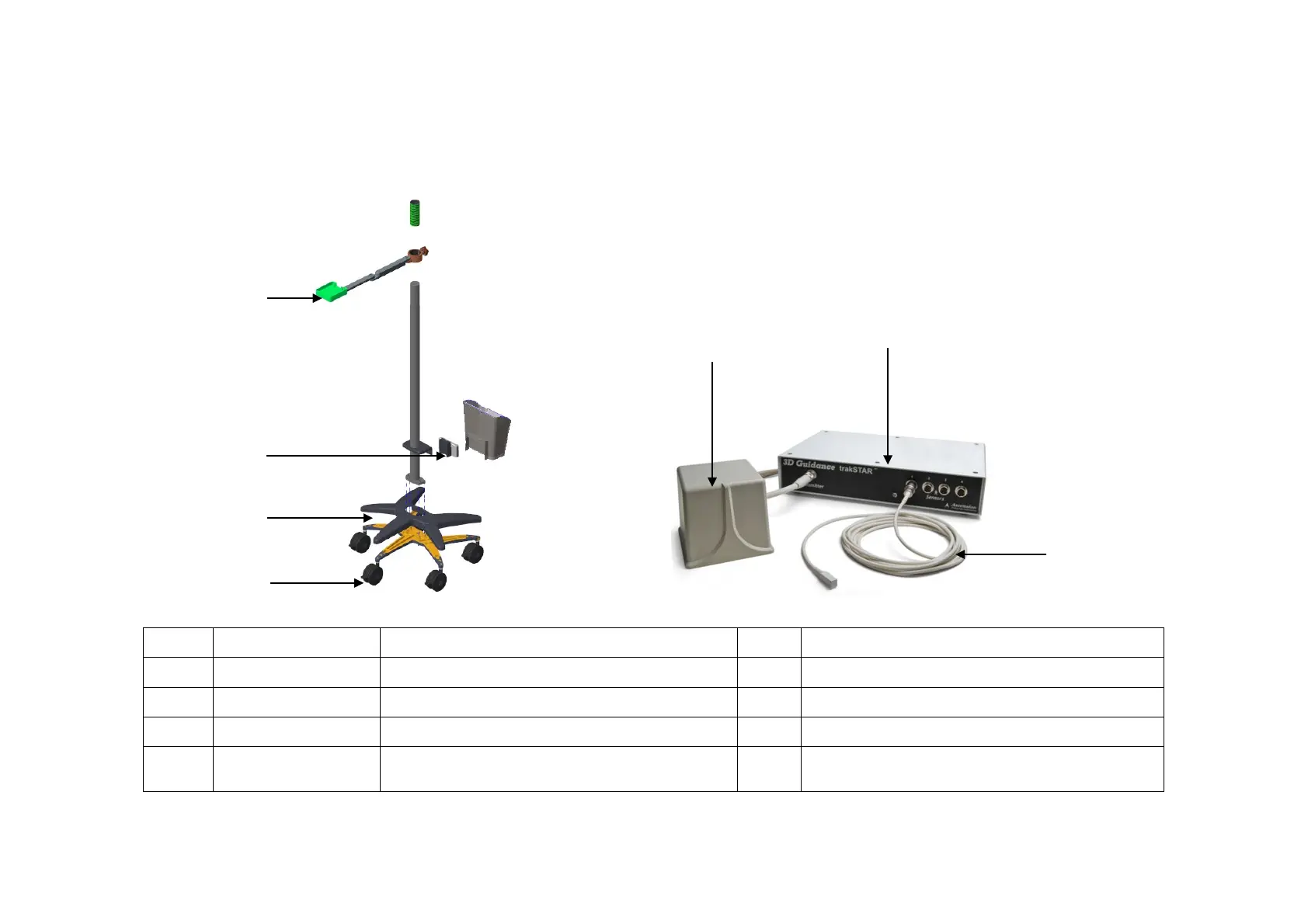

8-32 Field Replaceable Unit

8.2.9 Fusion Imaging Assembly (I0)

No.

Order Number

Part Name

Qty.

Remark

115-034852-00

cantilever assembly

I2 115-040847-00 Connect Base Assembly 1

I3 043-006786-00 Base Cover(Transport) 1

I4 801-1112-00003-00 UMT-160 Trolley Caster and Spanner(FRU) 1
