Mindray Resona R9 Service Manual

10-4 Installing Options
No. Material No.
Material
Description
Material and pictures Remarks
Installation
reference
7.
115-046246-00
Signal
Cable
ASSY for
Pen Probe
Optional 10.2.3
8.
115-069336-00
iClear+
Dongle Kit
Optional

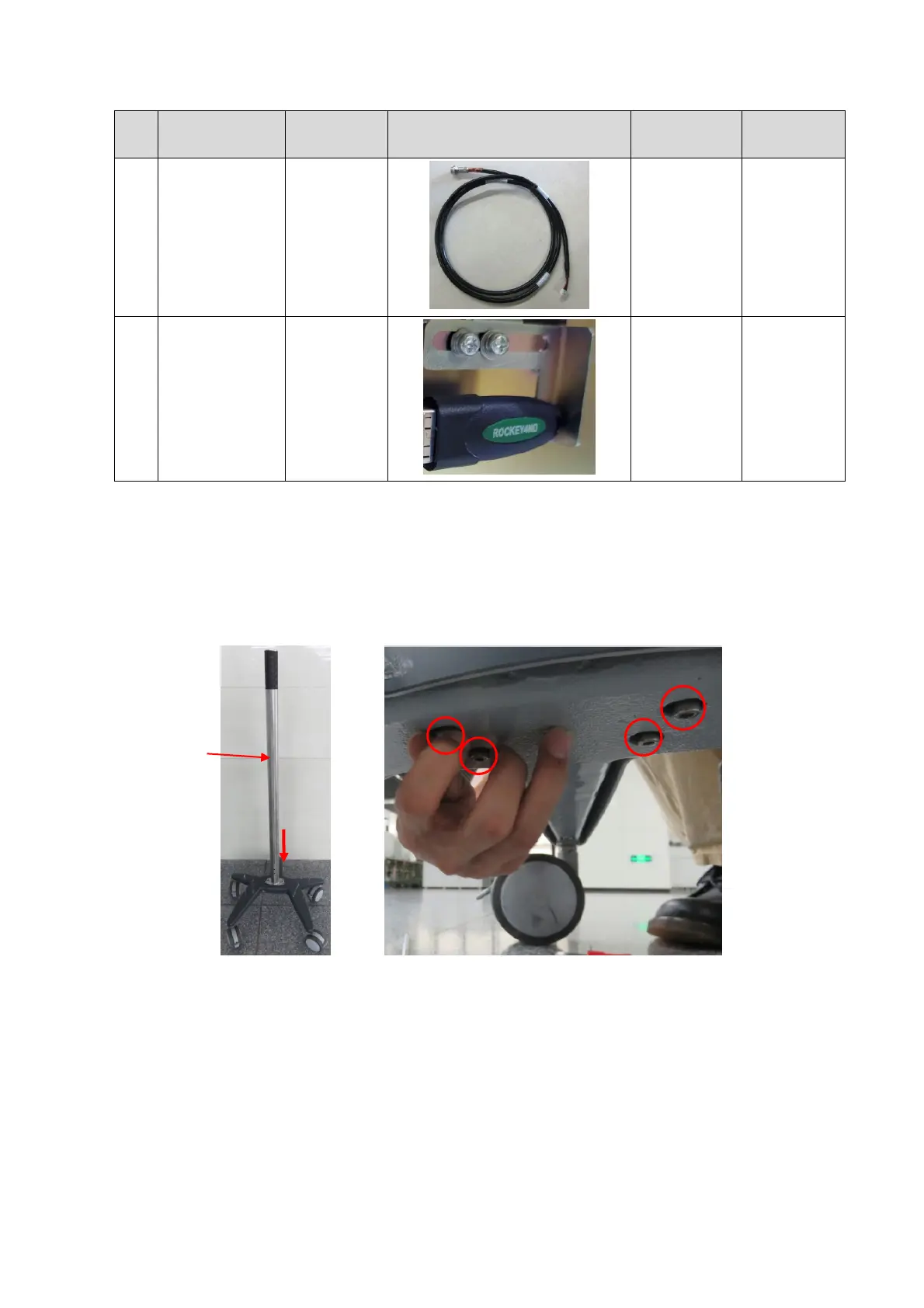

10.2.1 Magnetic Transmitter Trolley Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex spanner (M6).
1. Lay the column onto the base assembly. Hold the column with one hand and use the other
hand to screw the M6X40 (*4) screws(with flash/ elastic washer) into the Endeavour base
assembly tightly with M6 inner hex spanner.
2. Cover the column with protective shield downwards.
Column
