Mindray Resona R9 Service Manual

Structure and Assembly/Disassembly 9-35
9.3.15 Control Panel Moving Mechanism Assembly
Note: the ultrasound system can be disassembled only for the system equipped with the moving
mechanism.
The disassembly tool: cross-headed screwdriver (M3, M4), flat-headed screwdriver, inner hex
spanner (M3, M5).
1. See Chapter 9.3.6, 9.3.8 and 9.3.9 for details.

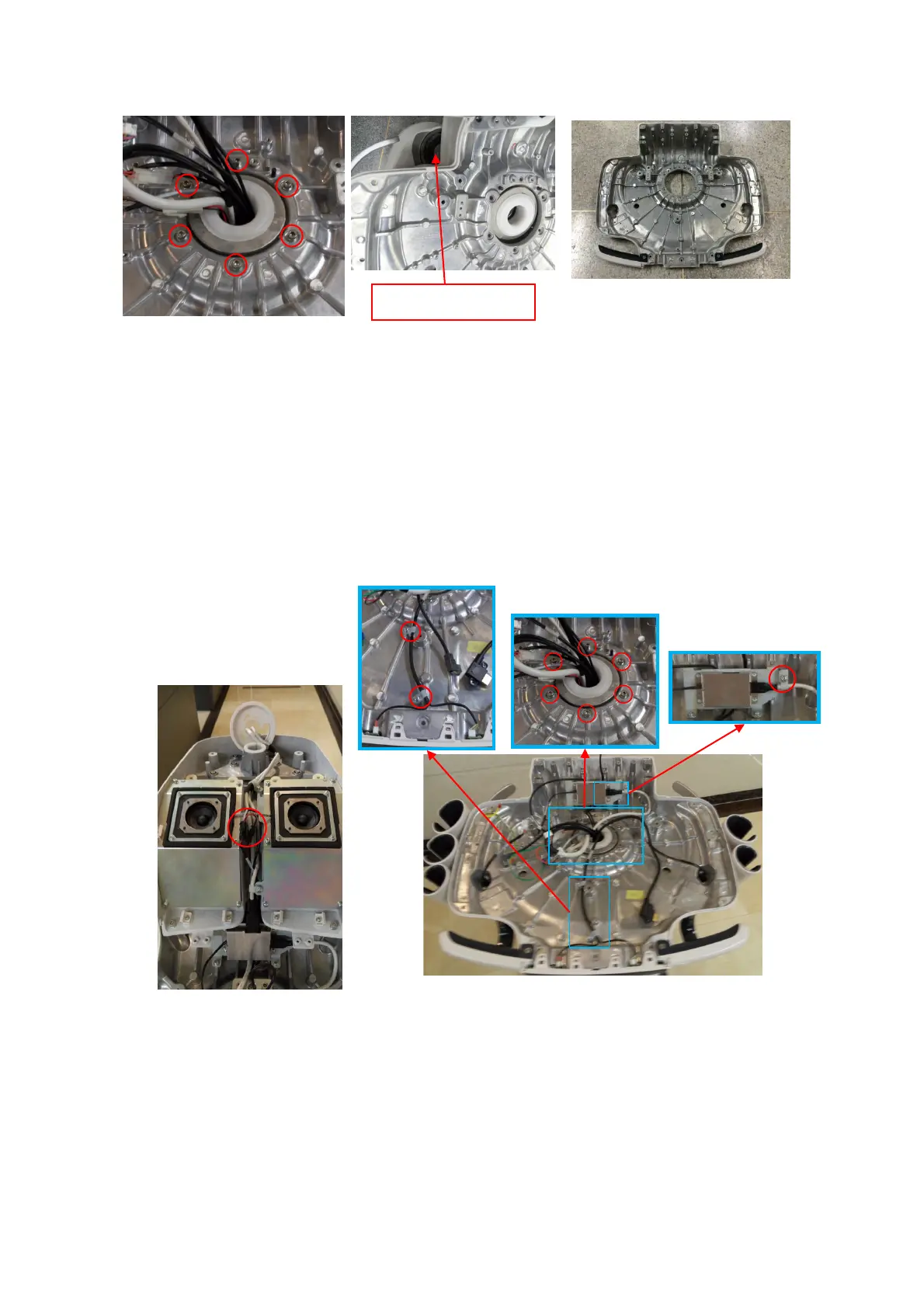

2. Unscrew the screws in the following figures, and unplug the cables. See Chapter 9.3.13 for
details.
3. Unscrew 4 M4 X 12 cross panhead screws on both left and right side with screwdriver (M3, M4)
to remove the cover of the support arm.
B
ase assembly
(FRU)
Electrical magnet
