Mindray Resona R9 Service Manual

Structure and Assembly/Disassembly 9-41
9.3.18 Main Unit Right Cover Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16 for details.

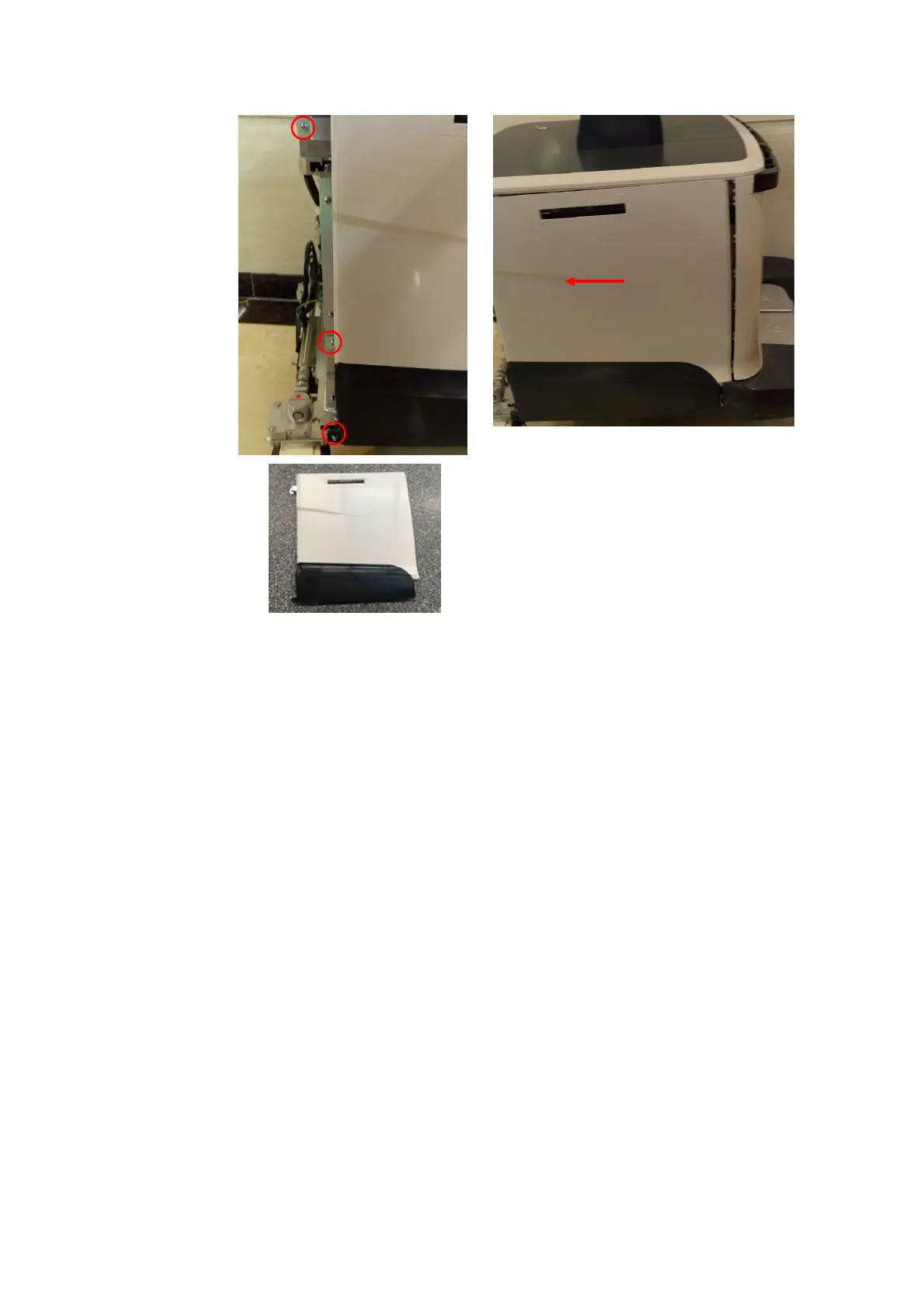

2. Unscrew 3 M4 X 12 cross panhead screws on the right cover with screwdriver (M3, M4) to
remove the right cover of the main unit.
Main unit left cover assembly
