Mindray Resona R9 Service Manual

Structure and Assembly/Disassembly 9-17

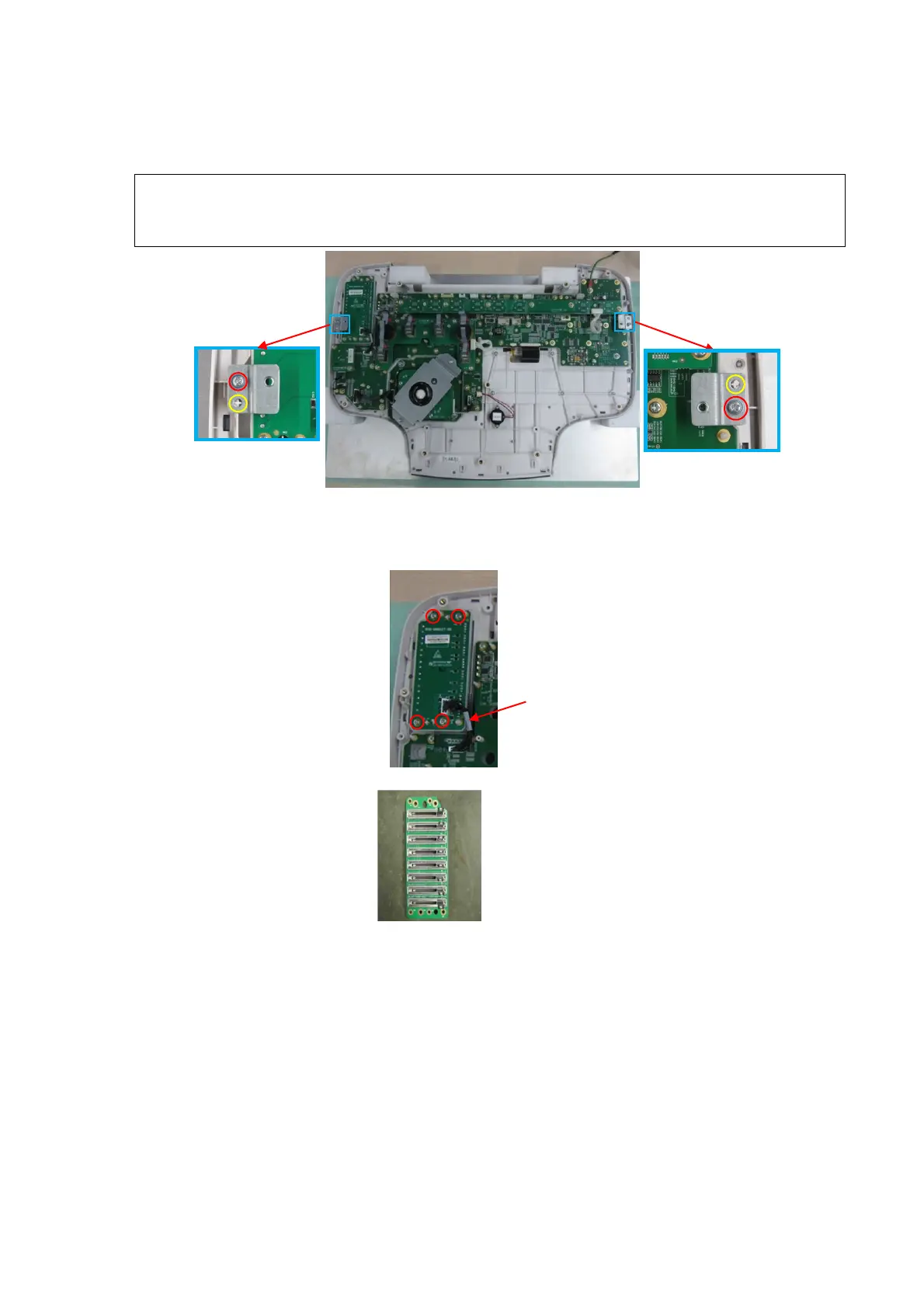

2. Wear the anti-electrostatic glove. Place the control panel assembly on the tool. Unscrew 2 M3
X8 cross panhead screws (red circle) on the keyboard connection plate with cross screwdriver
(M3, M4), and then remove 2 connection plates of the keyboard cover.
Note:

If there is no tool available, place the book besides the control panel assembly.

Align the keyboard connection plate with the positioning holes when installing
anticlockwise (yellow circle.
3. Wear the anti-electrostatic glove. Unplug one TGC signal control wire (009-004567-00) from
the TGC board and the control panel. Unscrew 4 PT3X10 cross panhead tapping screws from
TGC board with screwdriver (M3, M4) to remove the TGC board (with the silicon).
TGC signal
control wire
TGC
board
PCBA
