Mindray Resona R9 Service Manual

Structure and Assembly/Disassembly 9-47
Note:
Installing in reverse:
 If machine only contains one CW assembly, only the middle one (position 2) of three
TR64 boards can be installed with CW Assembly.
 Three TR64 boards are exactly same. If machine is equipped with three CW board,
the order of the installment is not enforced,
 Close the clips for TR64 boards.

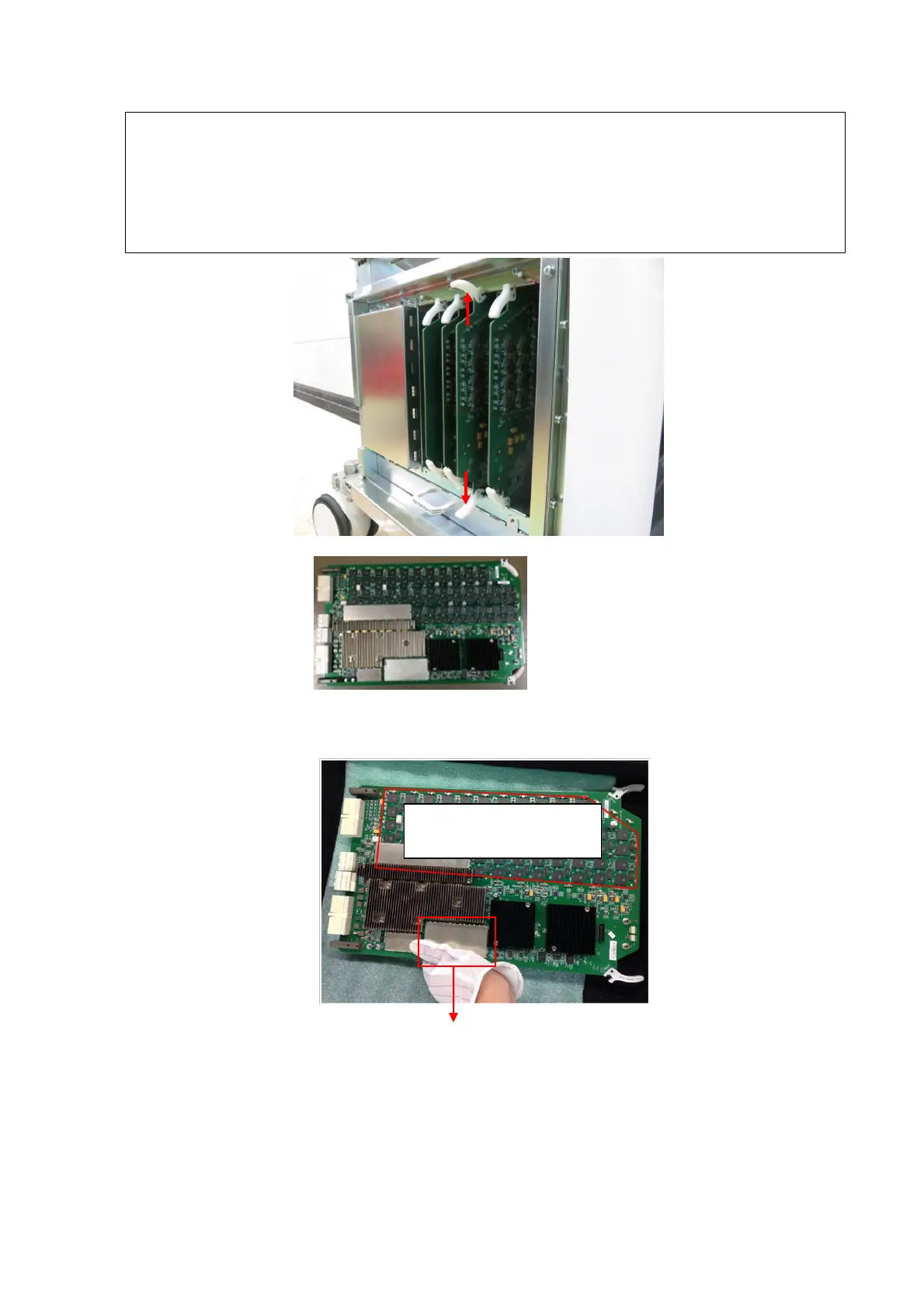

 Notes for TR64 board assembly/disassembly:
a) Hold the radiator shield cover and lift the board up. See the figure below.
b) Hold the board bottom on one hand, and hold the board clip on the other hand. See the
figure below.
Radiator shield cover
Do not touch the clip
inside the red rectangle.
1
2
3
TR64
board PCBA (FRU)
