Mindray Resona R9 Service Manual

9-66 Structure and Assembly/Disassembly

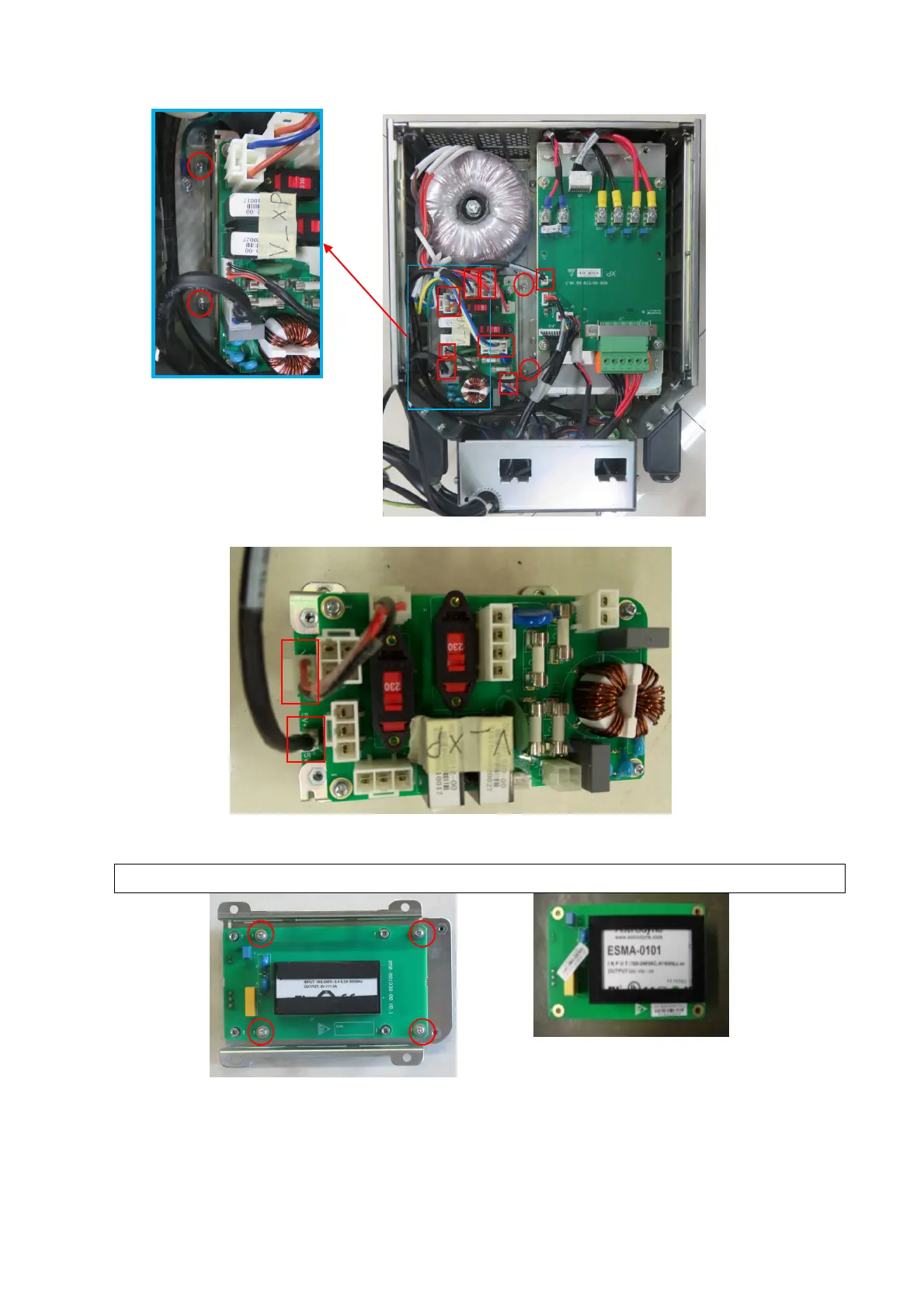

3. Unplug 2 plugs from the 5V board assembly.
4. Unscrew 4 M3 X 8 cross panhead screws with screwdriver (M3, M4) to remove 5V assembly
(FRU).
NOTE
Place the socket according to the figure below when installing in reverse.
9.3.31.4 AC Power Assembly
1. See Chapter 9.3.31 for details.
5V board assembly (FRU)
