Mindray Resona R9 Service Manual

Structure and Assembly/Disassembly 9-85
a) See 9.3.16, 9.3.17, 9.3.18, 9.3.19, 9.3.20, 9.3.21 and 9.3.22 for details.

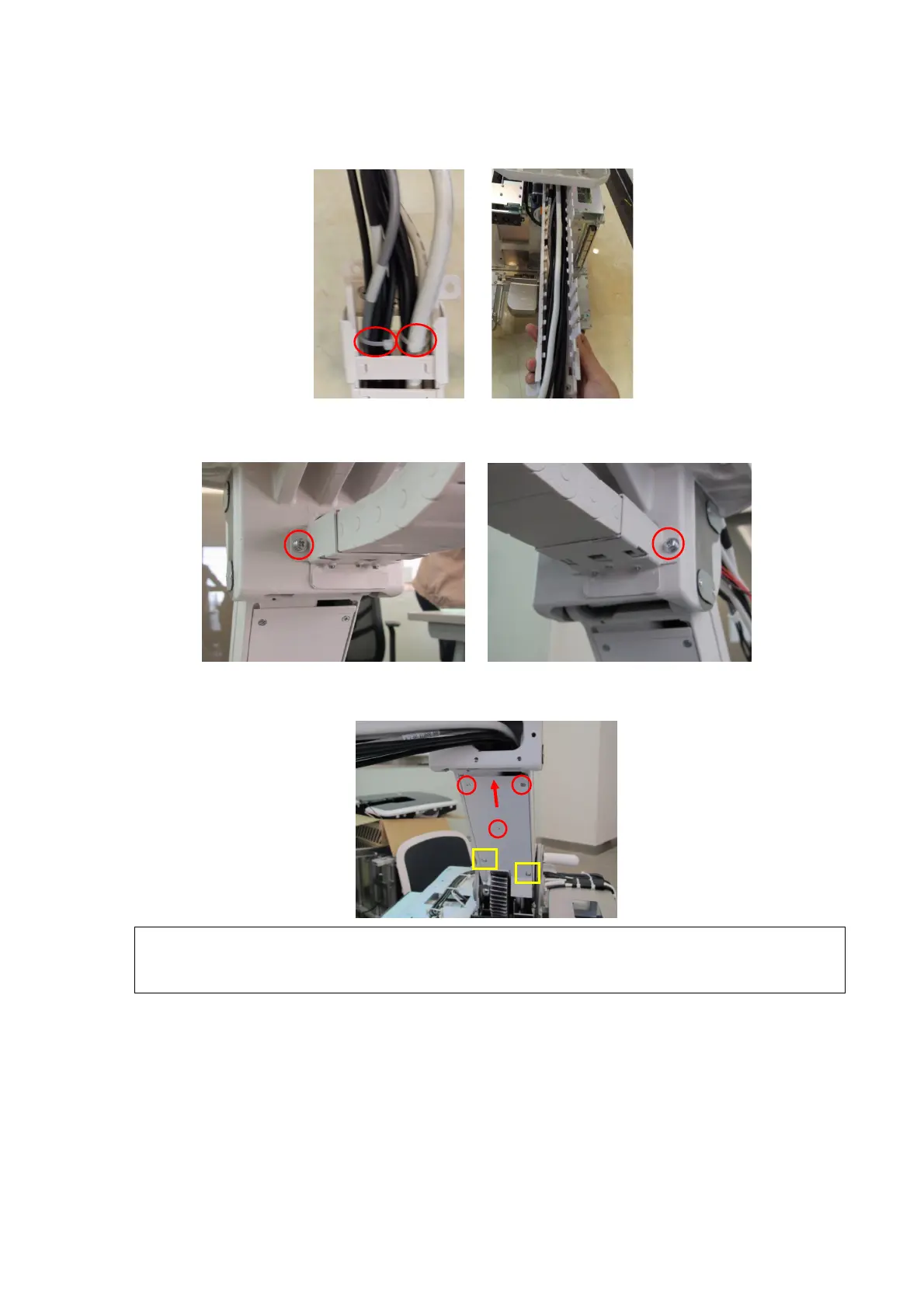

b) Cut 2 tie cables CHS-3X100 off with the diagonal cutting pliers, and open the cover of one side.
c) Unscrew 2 M4 X 12 cross panhead screws on both sides with screwdriver (M3, M4) to the drag
chain and the bracket.
d) Unscrew 3 M3 X 8 cross panhead screws with screwdriver (M3, M4) to remove the cable shield
cover.
NOTE
The cable shield cover can be removed without untightening two screws marked
with the square. It may produce the circuit risk if the pads of two screws fall into the
internal.
e) Take the cables out of the hole from the lower stand column, and then take the cables out of
the hole from the stand column base.
