Structure and Assembly/Disassembly 9-89

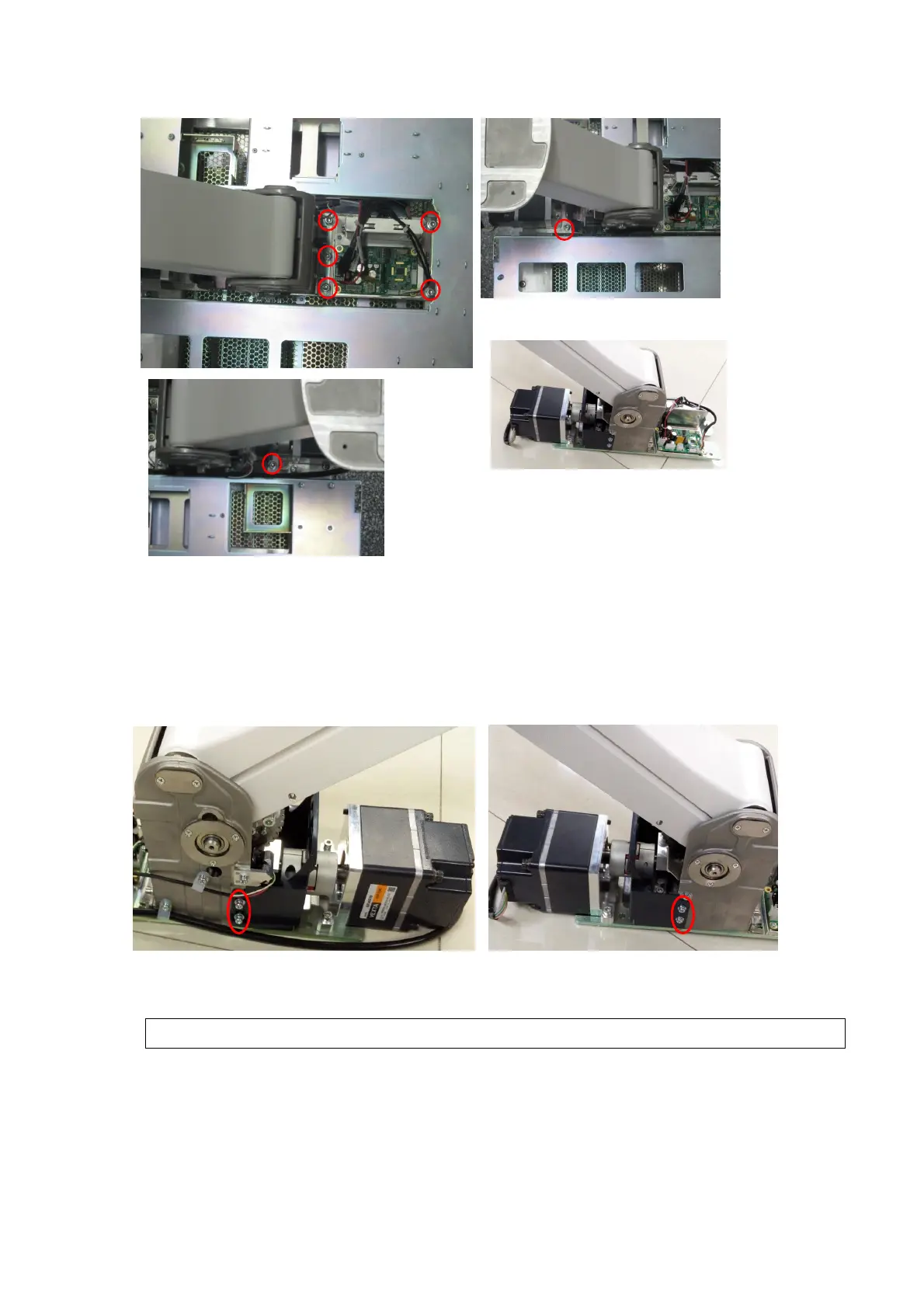

5. Unscrew 4 M4 X 12 cross panhead screws with screwdriver (M3, M4) to remove turbine
support bracket.
6. Unscrew 2 M4 X 12 cross panhead screws on UC-1.5 and UC-0.5 fixing knob with the
screwdriver (M3, M4)to cut off the tie cable CHS-3X100mm from the position signal cable. Pull
the position signal cable and the brushless DC motor from the lift control PCBA assembly.
Let the position signal cable through the bales when installing.
The motor-driven lift mechanical assembly
(equipped with the position signal cable, the
m
otor-driven lift mechanical assembly and
the lift control PCBA assembly
, turbine
).
To Next Page
