System Installation 3-5

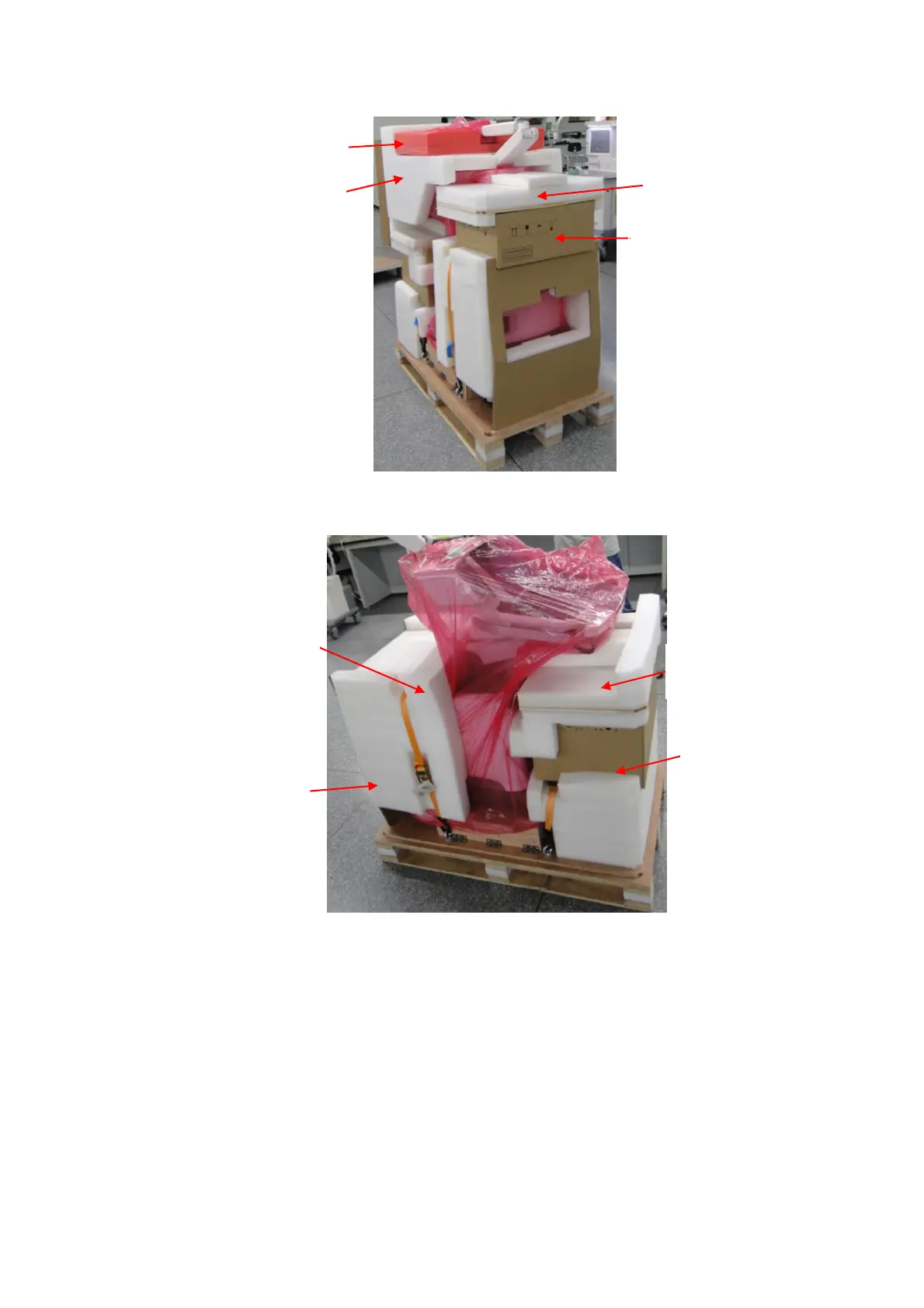

5. Remove "support arm foam", "big accessory carton", release the buckle, and remove

"front foam", "handle foam".

6. Pull the machine out along the slope.

Front foam

LCD protect foam

Small accessory carton

Back foam

Support arm

foam

Large accessory

carton

Front foam

Handle foam
