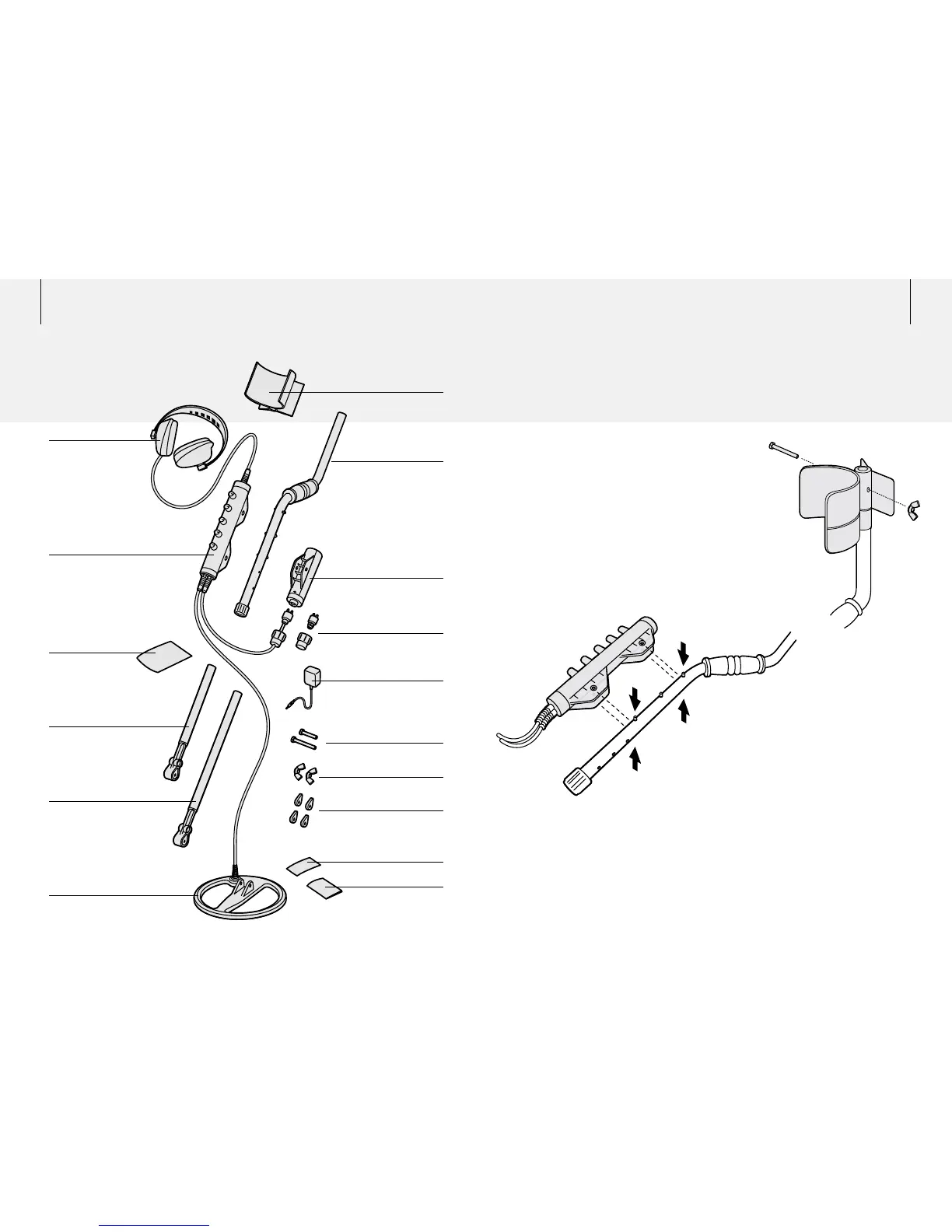

6 7List of Parts
Instruction Manual
Long Lower Shaft
Short Lower Shaft
(Useful for diving)
Upper Shaft
Control Cylinder
Battery Pod
(includes NiMH cells)
Slimline Coil (8” or 10”)
(with Skidplate)
Armrest
Headphones
Rubber Washers (4)
Wingnuts (2)
Nylon Bolts (2)
Finds Bag
(US, UK & Europe only)
Mains Charger
Charger Adaptor Plug
and Cap
Warranty Card
Assembly
Attaching the Control Cylinder to the Upper shaft:
If not already clipped to the shaft:
1 Compress the lower spring loaded pin of the
upper shaft.
2 Ensure that the coil cable of the control cylinder is
pointing downwards. Slide the control cylinder onto
the upper shaft until both pins are compressed and
they reach the adjustment holes. The pins will spring
out and clip into place.
Attaching the Armrest to the Upper Shaft:
If not already bolted to the upper shaft:
1 Ensure that the cup of the armrest is pointing in
the same direction as the handle. Slide the armrest
onto the end of the upper shaft aligning the shaft
and armrest holes.
2 Insert the short bolt through the armrest and
upper shaft holes.
3 Fasten the wing-nut onto the bolt.
To Next Page
