6 7
Assembly

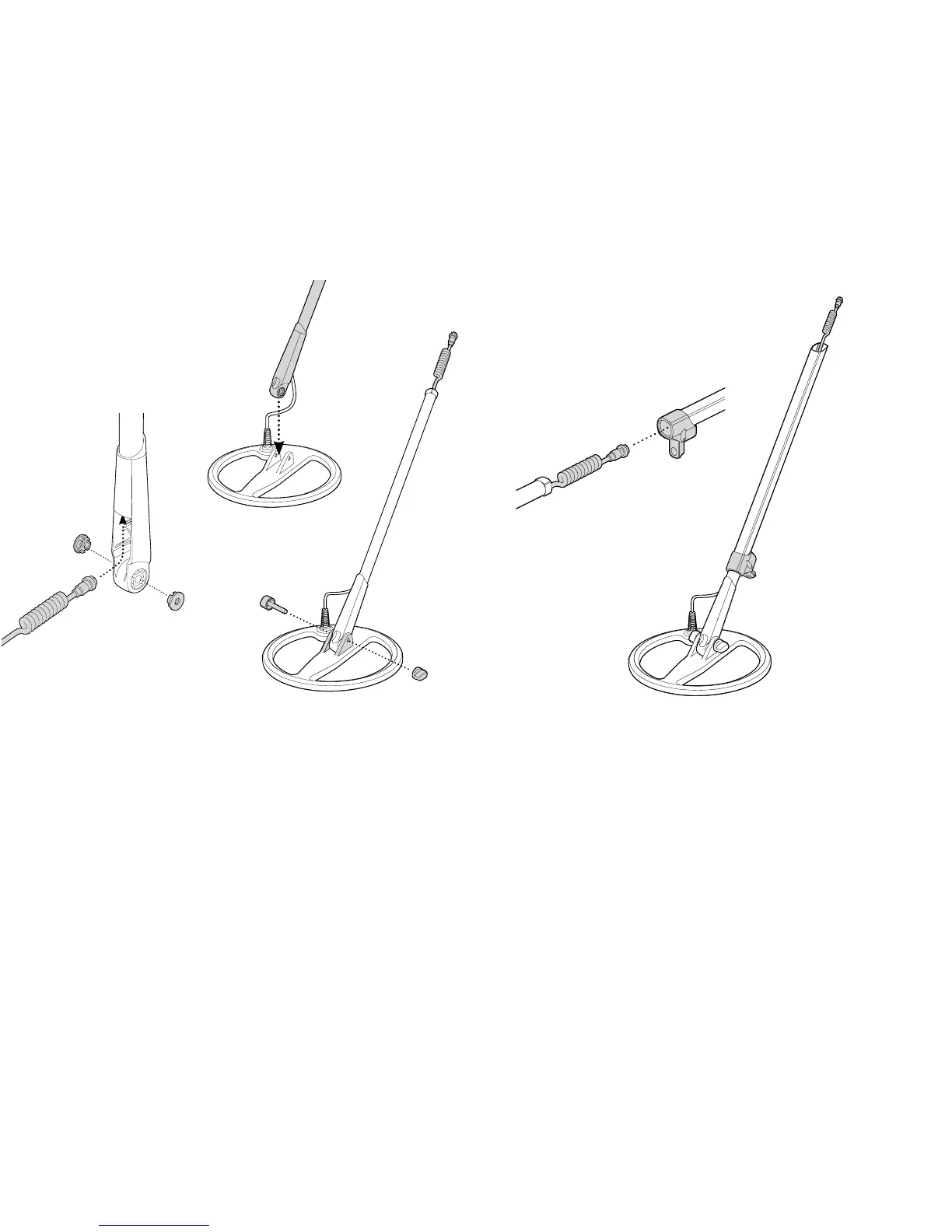

Attaching the Coil to the Lower Shaft:
1 Plug the two rubber washers into the
holes on either side of the lower shaft.
2 Feed the coil cable up through the
inside of the lower shaft.
3 Place the coil on a flat surface.
4 Slide the lower shaft into the bracket on
top of the coil. Ensure that the open side
of the lower shaft faces the ground.
Attaching the Lower Shaft to the
Upper Shaft:
1 Fully unlock the upper shaft camlock by
releasing the lever from the shaft.
2 Feed the coil cable up through the
inside of the upper shaft.
3 Ensuring that the camlock side of the
shaft is facing the ground, slide the
upper shaft over the lower shaft, so that
the coil cable appears out the top.
5 Insert the bolt through the lower shaft
and the bracket on top of the coil.
6 Fasten with the nut provided, being
careful not to damage the thread of the
nut by over-tightening. This will need to
be loosened later to adjust the coil to a
comfortable detecting angle.
7 Ensure that the coil cable appears out
the top of the lower shaft.
The coil cable is directly wired into the
coil and is not removable. Any attempt to
remove this cable will void your warranty.
