• Unscrew and disconnect the coil connector.
• Remove the pin coil cable from the upper end of the upper shaft. Turn the pin
clockwise then pull to remove.
• Remove the two screws (Nylon 14mm) from the cap shaft on the lower shaft as
indicated in Figure 49.

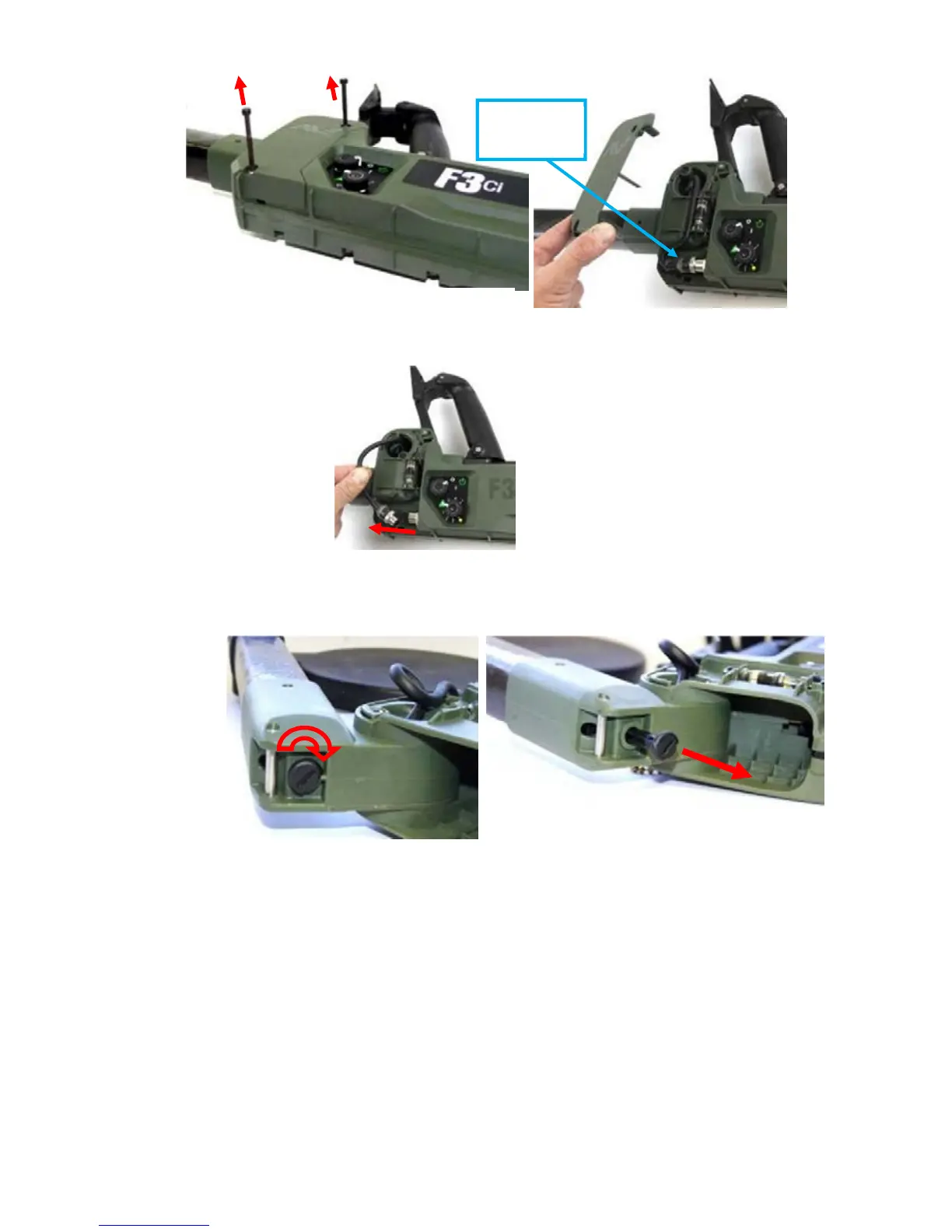

Figure 48: Removing Pin Coil Cable
Figure 46: Remove Hinge Cover
Coil
C
onnector
Figure 47
: Disconnecting Coil Connector
