F3Ci Service Manual
_______________________________________________________________________________________________________________________
16
c
. The body of the detector is now opened revealing the internal components which can
now be replaced as required.
3.2 Closing the Detector Body
a
. The following procedure outlines the steps involved in closing and resealing the detector
body:
•
Ensure all parts are present, in good working order and lay the detector body on its
left side.
•
Thread the coil cable through the detector hinge and position the upper shaft into
the detector body.
•
Carefully turn the detector body over so that it is on its right side. Check the coil
connector nut is tight.
•
Attach the coil connector to the socket and tighten the coil connector as tight as
possible with fingers. Figure 17.

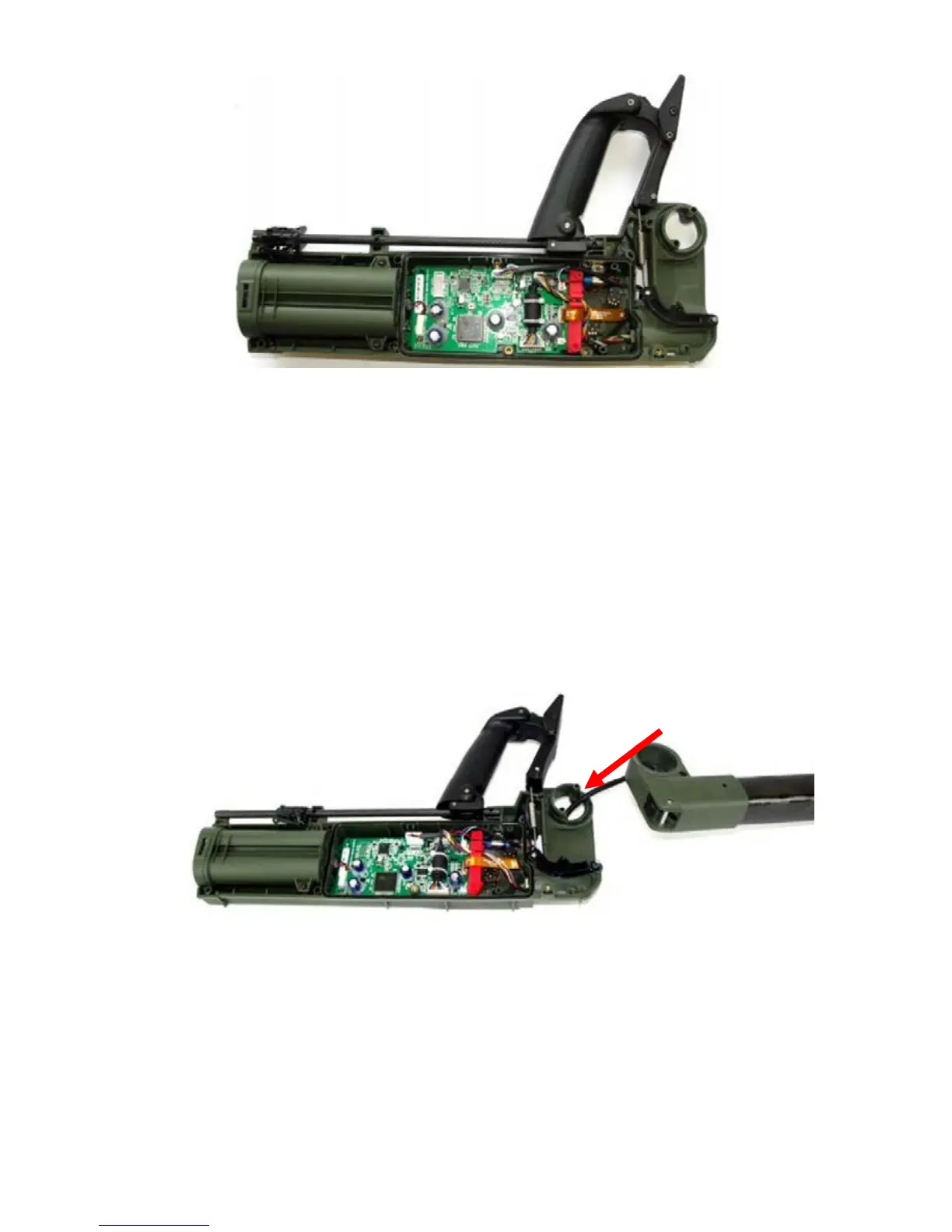

Figure 16: Threading Coil Cable and Attaching Shafts
