F3Ci Service Manual
_______________________________________________________________________________________________________________________
17
•
Fit the coil cable into the cable router and check that the loop of coil cable within the
shaft hinge is positioned so that it will not be trapped when the detector body is
closed. Refer to Figure 20.
•
Fit the hinge cover but
Do Not
fit the two hinge cover screws. Turn the detector body
over so it is on its left side.
•
Check the detector handle is correctly positioned on the detector as well as the
armrest slide. The rod detector slide must be positioned through the handle and
armrest slide. The holes in the rod detector slide must align with the holes in the
detector body.
•
Check that the latch hinge and spring latch hinge are correctly positioned into the left
side of the detector body with the latch connected to the spring.
Note

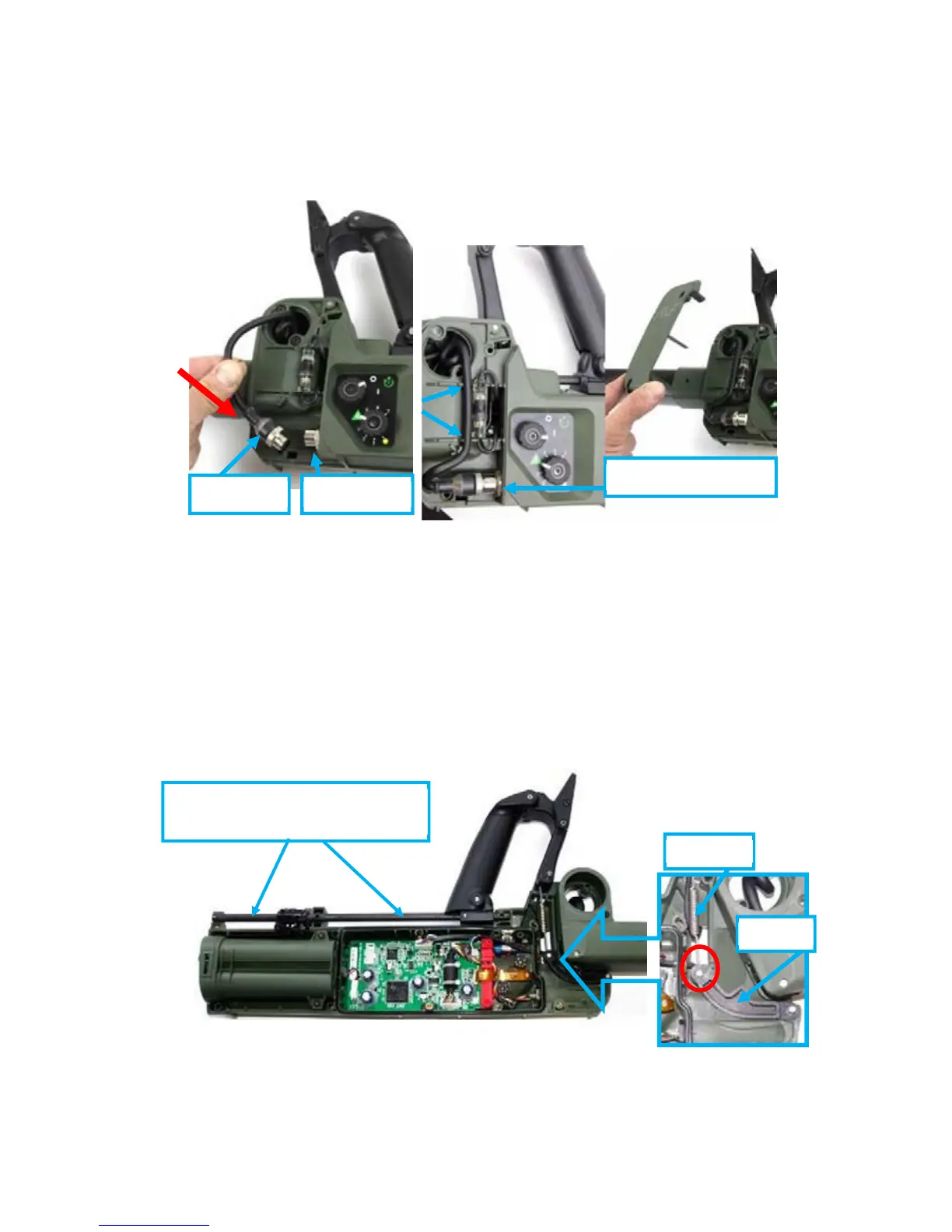

Figure 18: Latch Hinge and Spring Latch Hinge
Figure 17: Connecting Coil Cable and Removing Hinge Cover
Coil Connector Nut
Coil Socket Coil Plug
Latch
Spring
Rod Handle Slide passing through
A
rmrest Slide and Handle
To Next Page
