3.4.6
Fitting the Coil
a.
With practice and a pull through tool it is possible to fit the coil to the detector without
opening the detector body and removing the detector shafts.
•
Connect the coil cable pull-through to the coil connector. Alternatively, a piece of
string could be used to thread the coil cable into the shafts.
•
Extend the lower and middle shaft 2 cm (1 in) and position the shaft at 90 degrees to
the detector body.
•
Feed the coil cable pull-through into the coil end of the lower shaft and out through
the detector hinge. Feed the coil cable until the coil connector is exposed.
•
Insert the pin coil cable into the end of the upper shaft so that the pin engages into
the turns of the coil cable within the shaft. Turn the pin counter clockwise to lock it
into place.
•

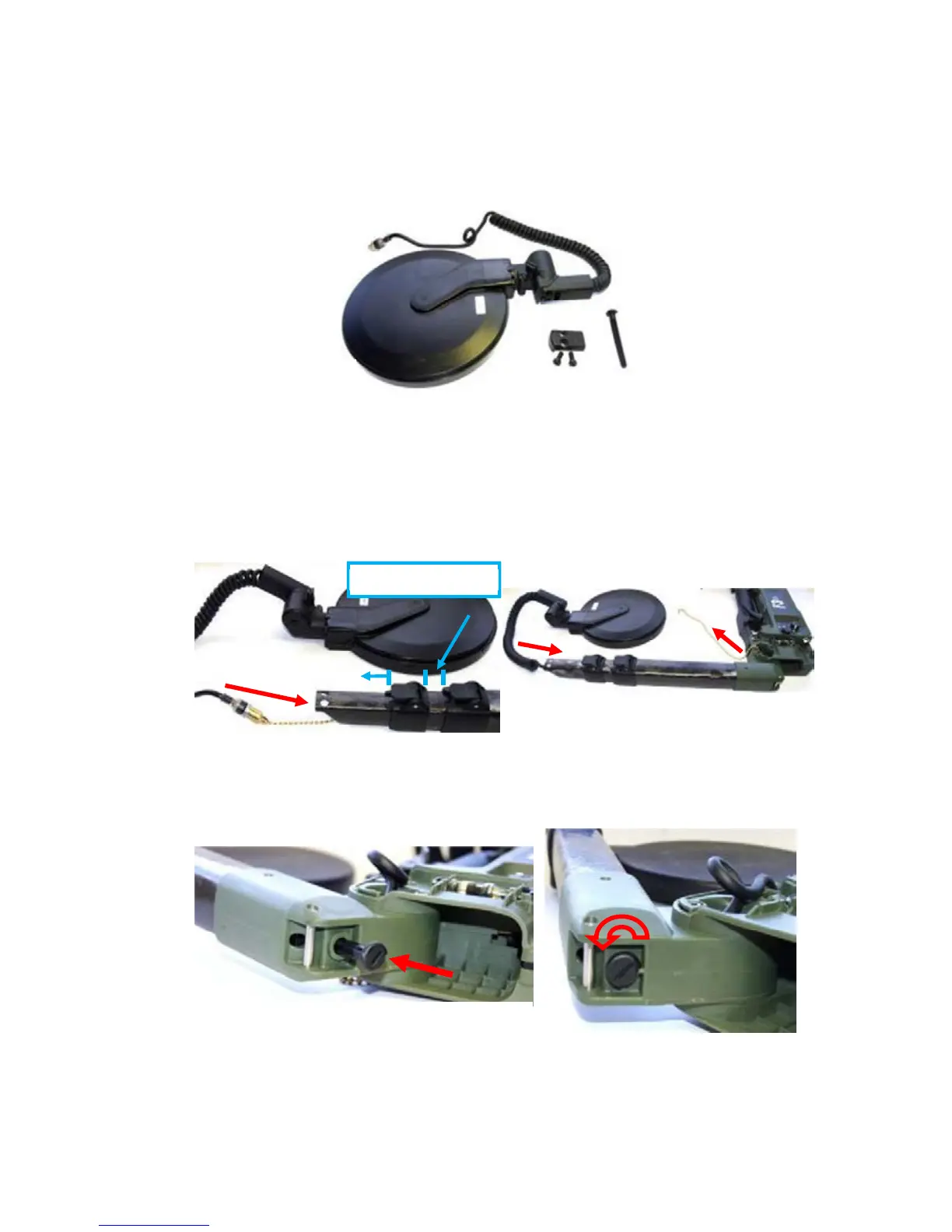

Slide the coil into the end of the lower shaft. Fit the cap shaft then fit the two screws
(14mm Nylon). Figure 65.
