F3Ci Service Manual
_______________________________________________________________________________________________________________________
37
the pivot and try again. D
o Not Use Excessive Force. Push the pin in with fingers and
click into place.
Note
The pin coil yoke must thread through five turns of the cable inside the pivot.
•
Check the movement of the pivot in both directions.
•
Fit the screw (Nylon M6x29) into the pivot coil yoke and then fit the thumb screw.
Tighten both screws until the movement of the coil starts to become firm.
Note
The thumb screw will adjust the friction of the coil tilt. The thumb screw must be tight enough to
stop the coil from drooping. The screw (Nylon M6x29) will adjust the friction of the coil rotation.
b.
Fit the coil to the shaft then fit onto the detector as described in Section 3.4.6 - Fitting the
Coil.

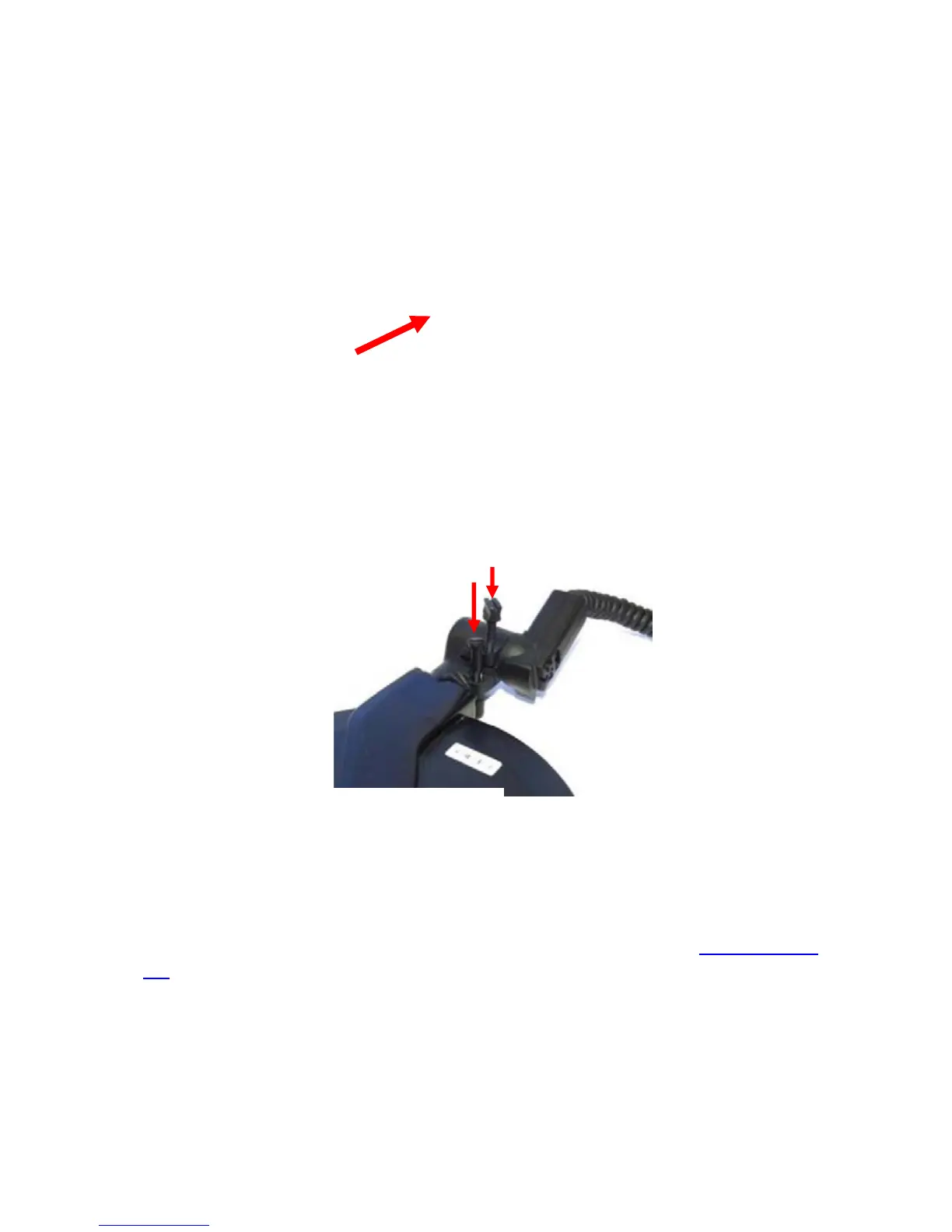

Figure 61: Fit Adjusting Screws
