b. The armrest assembly can now be replaced as an assembly. If the armrest slide assembly
must also be replaced then the detector body must be opened as described in Section 3.1 -
Opening the Detector Body.
• Reattach the armrest and fit the four screws (12mm)
• Check the armrest folds in and out correctly and also check that the armrest slides
backward and forward.
3.8 Battery Compartment
a. The battery compartment and the battery lid are line replaceable units and available as
service kits which include associated parts as shown in Figure 86.
1 3004-0051 Battery Compartment Kit, contains all items.
2 3004-0052 Battery Lid Kit
3 31-03512-982 Screw 3.5x12 skt head
4 31-23001-927 Washer M3 Nylon
5 8005-0070 Tether Battery Lid
6 4309-0075 O-ring Battery Lid

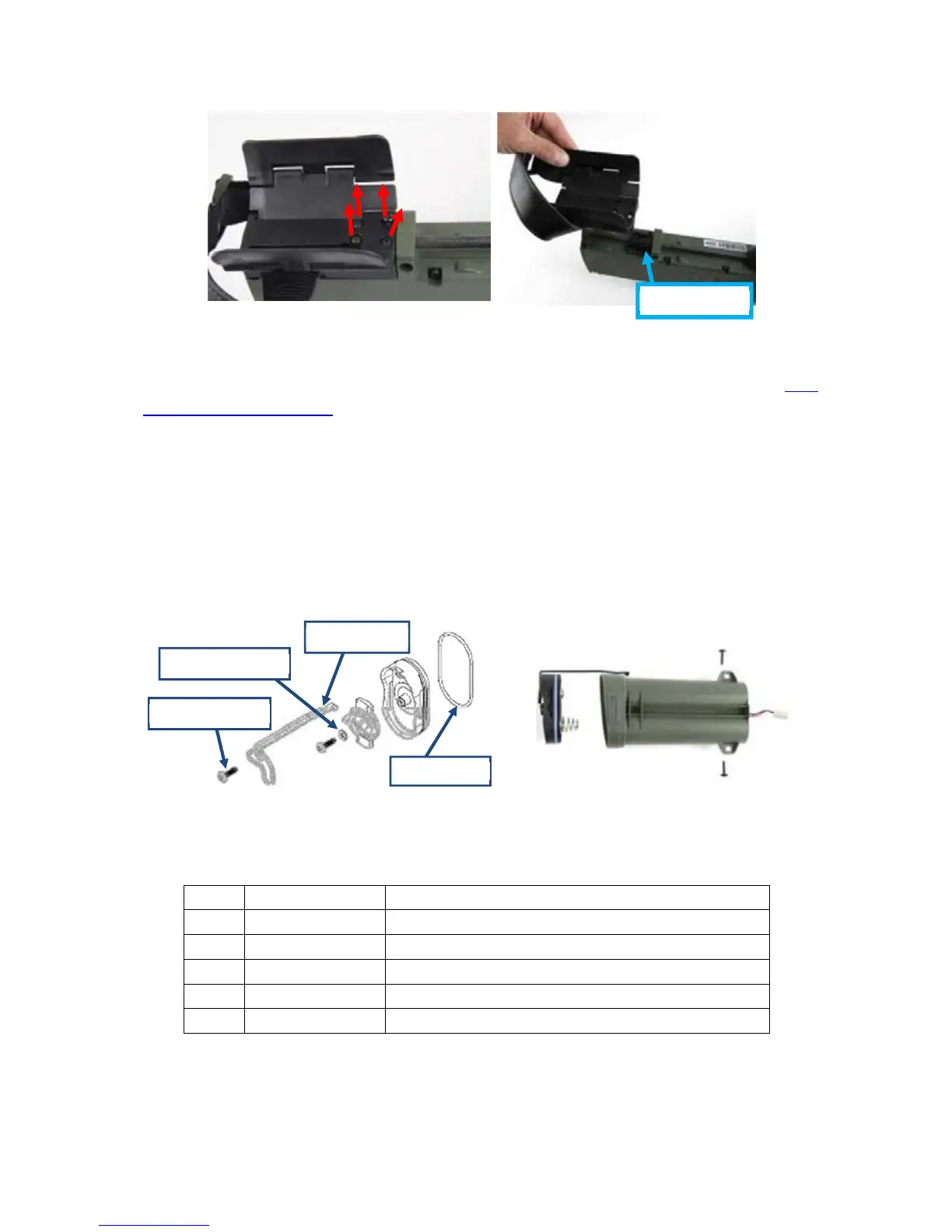

Figure 85
: Removing the Armrest
8005
-
0070
Table 6: Battery Compartment
3004-0052 Battery Lid Kit
Armrest Slide
3004-0051 Battery Compartment Kit
4309
-
0075
Figure 86: Battery Service Kits
31
-
23001
-
927
31
-
03512
-
982
