F3Ci Service Manual
_______________________________________________________________________________________________________________________
34

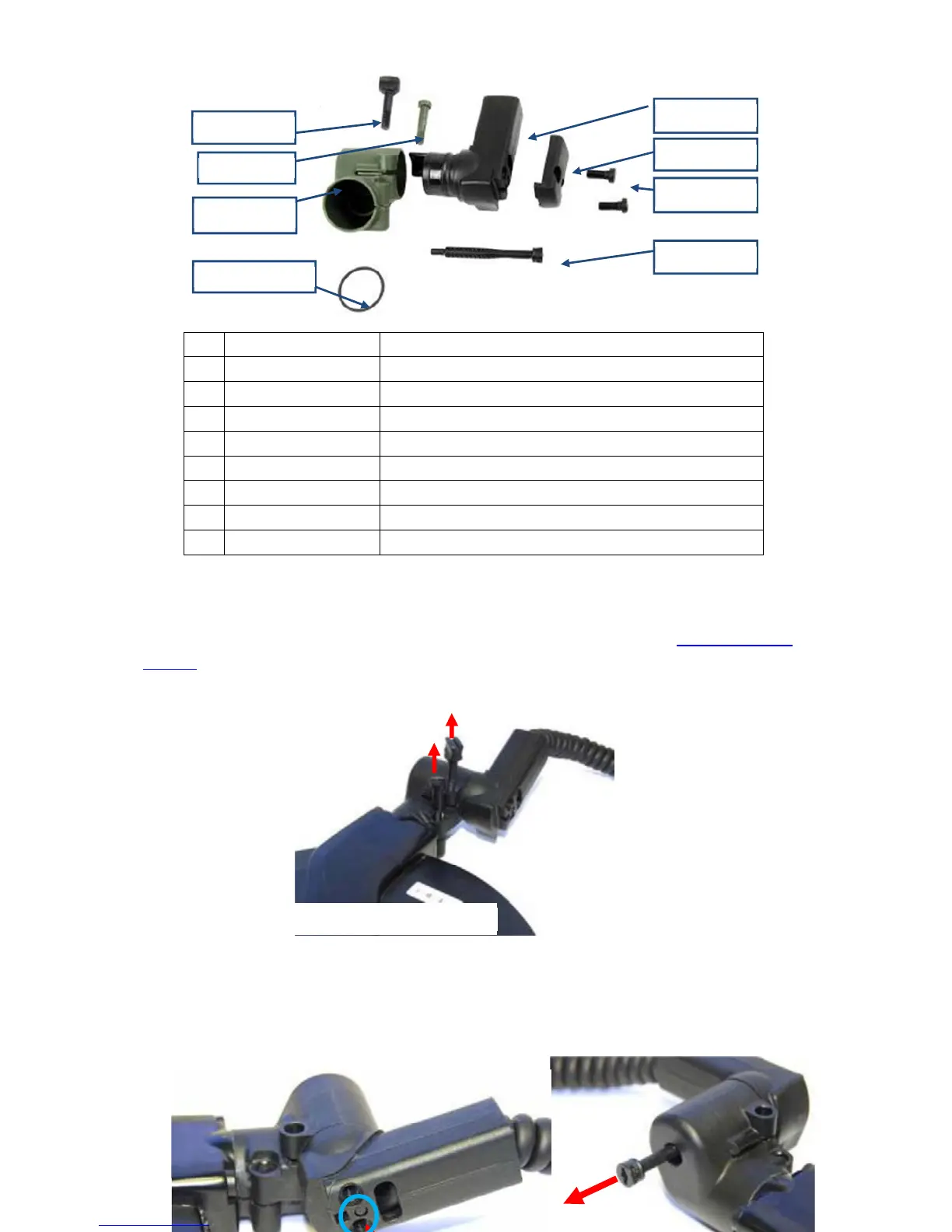

1 3004-0130 Coil Pivot Kit, contains all items in this Table
2 30-29011-514 O-Ring 25mm ID x2
3 4311-0090 Pivot Coil Yoke
4 4311-0086 Pivot Shaft
5 4003-0126 Screw Nylon M6x29
6 4003-0121 Thumb Screw Nylon 1/4BSW
7 4308-0030 Pin Coil Pivot
8 4003-0124 Screw Nylon M6x14
9 0703-0204 Cap Shaft
3.4.4
Removing Coil Pivot
a. To remove the coil pivot, first remove the coil as described in section 3.4.2 - Removing
the Coil.
Once completed:
•
Remove the thumb screw and screw (Nylon M6x29).
Note
The two screws can be used to adjust the friction of the coil pivot movement.
•
Push the pin coil pivot out with a pin punch or hex key driver and remove the pin coil
pivot.
Figure 53: Removing Two Screws
Figure 52: Coil Pivot Kit Parts
To Next Page
