The hinge cover holds the latch hinge and spring latch hinge in place. When the hinge cover
is removed the spring may unintentionally disconnect from the latch.
•
Ensure the battery lid is closed.
•
Connect the speaker cable to the connector on the main PCB. Check all other
connectors and cables are connected.
•
Check the O-ring in the detector body is clean, lightly greased and correctly
positioned.
•
Check all internal cables and wires are correctly positioned and will not be trapped.
•
The coil cable must be located within the shaft hinge so that it is not trapped or
damaged when the halves of the detector body are fitted together. In particular, the
coil cable must not be positioned above the hinge screw bosses.

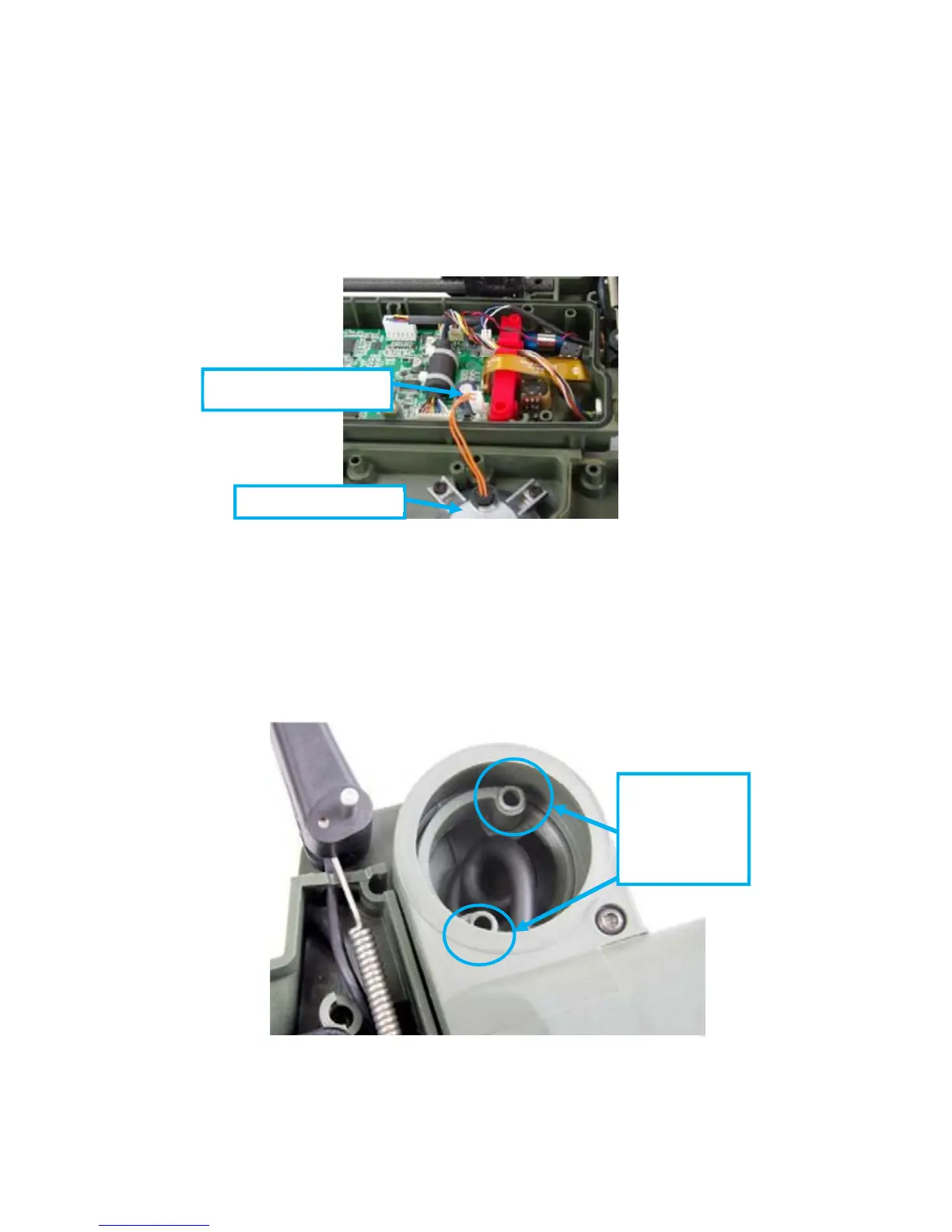

Speaker Connector
Figure 19: Connecting Speaker
