Test Solutions - User Guide Page 7
RCM Series Compact Modular Test Systems 4-Oct-17 (A3)
3.2. RCM-200 Series
Mini-Circuits’ RCM-200 Series multi-function switch systems are housed in the same compact
aluminum case measuring 8.25” wide x 4.25” high x 8.25” deep (210 x 108 x 210 mm). The front
panel is fabricated with three windows, each measuring 2.43” wide x 3.35” high (62 x 85mm),
which can be specified with the required RF switch components.
The rear panel of the unit includes inputs for a standard 24V DC power supply (AC mains
adapter included), USB and Ethernet connections for software control and a hardware power
switch. The identification sticker at the left edge contains the model name, serial number, and
control board number.
The modular chassis structure allows a variety of custom switch configurations to be built and
shipped to customers within 2 weeks or less. Each hardware window may be configured with
the user's choice of switch components, from:
1 or 2 mechanical SPDT switches (DC-18 GHz)
1 or 2 mechanical transfer switches (DC-18 GHz)
1 SP4T switch (DC-18 GHz)
1 SP6T switch (DC-12 GHz)

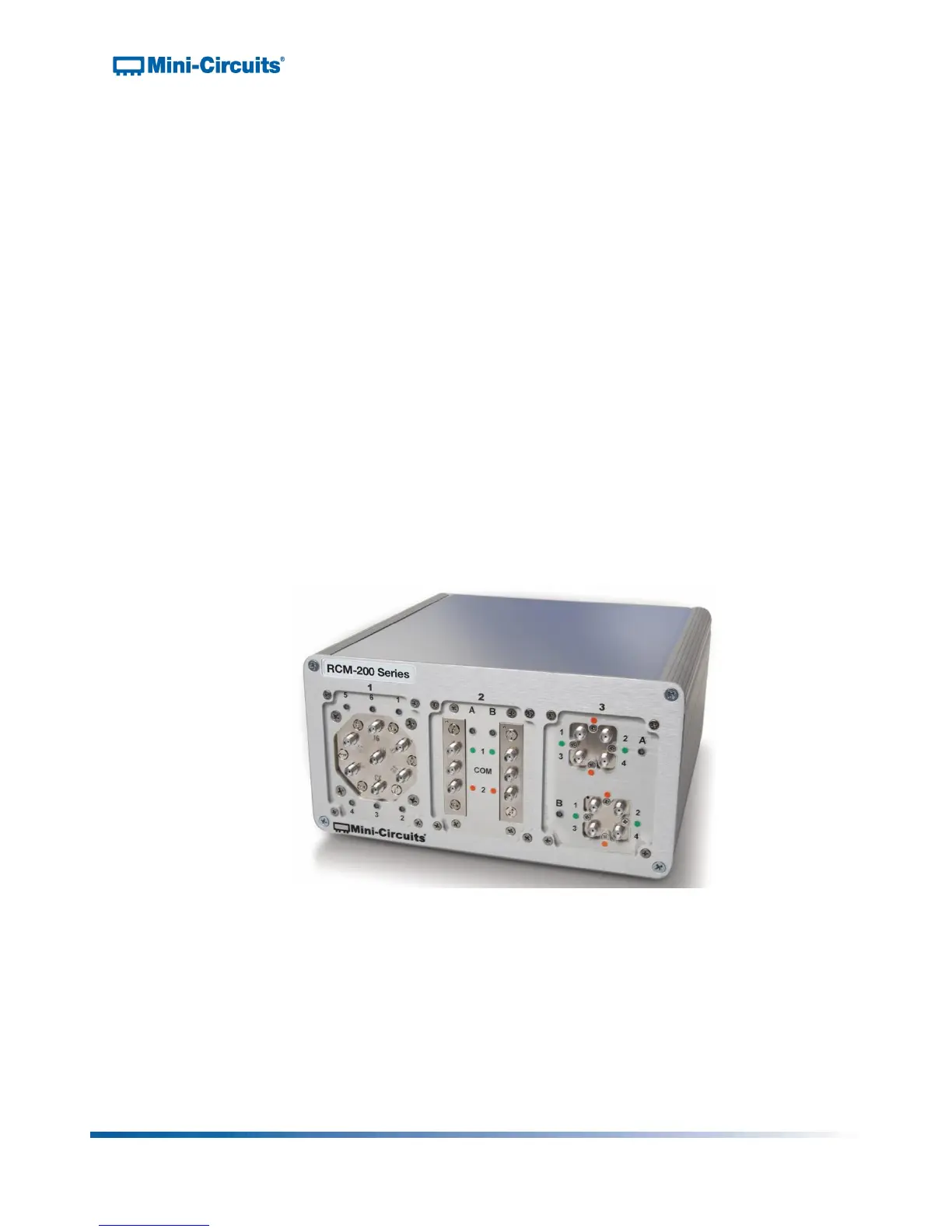

Figure 2: Front panel of RCM-200 Series multi-function switch system, configured with 1 x SP6T,
2 x SPDT, 2 x transfer switches
