3.3. RCM-200 Series (SP8T Switches)
The RCM-200 Series is also available in a configuration with either 1 or 2 SP8T switches
populated on the front panel. Since these switch components are larger than the standard RCM
Series windows, the SP8T switch models cannot be combined with other models.
The rear panel of the unit includes inputs for a standard 24V DC power supply (AC mains
adapter included), USB and Ethernet connections for software control and a hardware power
switch. The identification sticker at the left edge contains the model name, serial number, and
control board number.

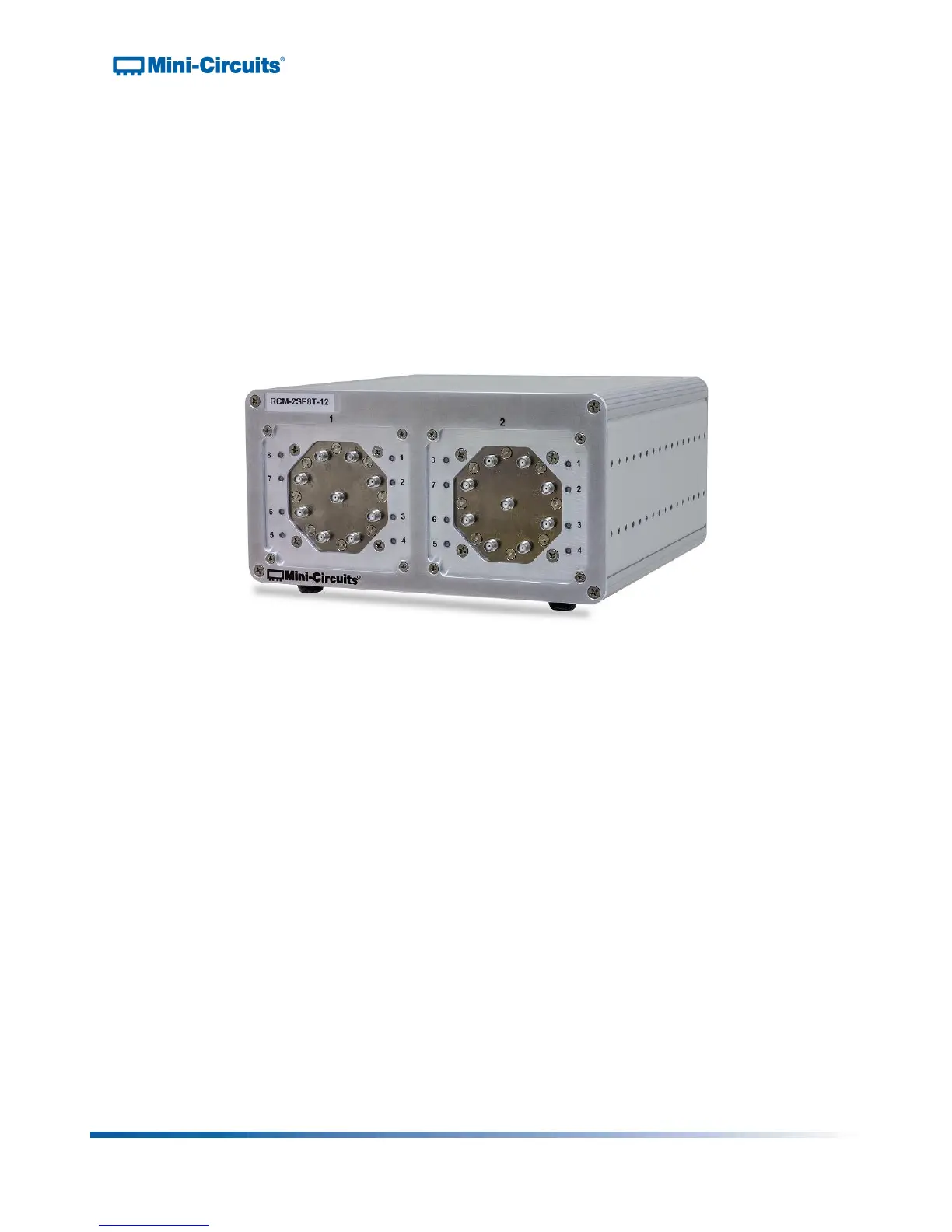

Figure 3: Front panel of RCM-2SP8T-12 with 2 x SP8T switches
