2 HARDWARE CONNECTIVITY
All connections to the DDRC-22D are made on the rear panel.
2.1 AUDIO INPUT AND OUTPUT CONNECTIONS
Digital inputs
Connect up to three digital sources: AES-EBU on XLR, S/PDIF on RCA, or optical (TOSLINK). These
sources can be selected between by using the front panel or an infrared remote (not included).
The digital inputs of the DDRC-22D accept sample rates from 20 up to 216 kHz.
Note: the digital inputs accept a stereo PCM digital signal only. They do not accept encoded or
multichannel digital audio (such as Dolby Digital or DTS).
Digital outputs
Connect one of the digital outputs to your DAC or other device with a digital input. All digital
outputs are simultaneously active, so multiple output connections can be made if necessary.
Note: the digital outputs of the DDRC-22D operate at 96 kHz sample rate. Any connected DAC
must support this sample rate. (The digital inputs of the DDRC-22D accept any sample rate up to
216 kHz.)

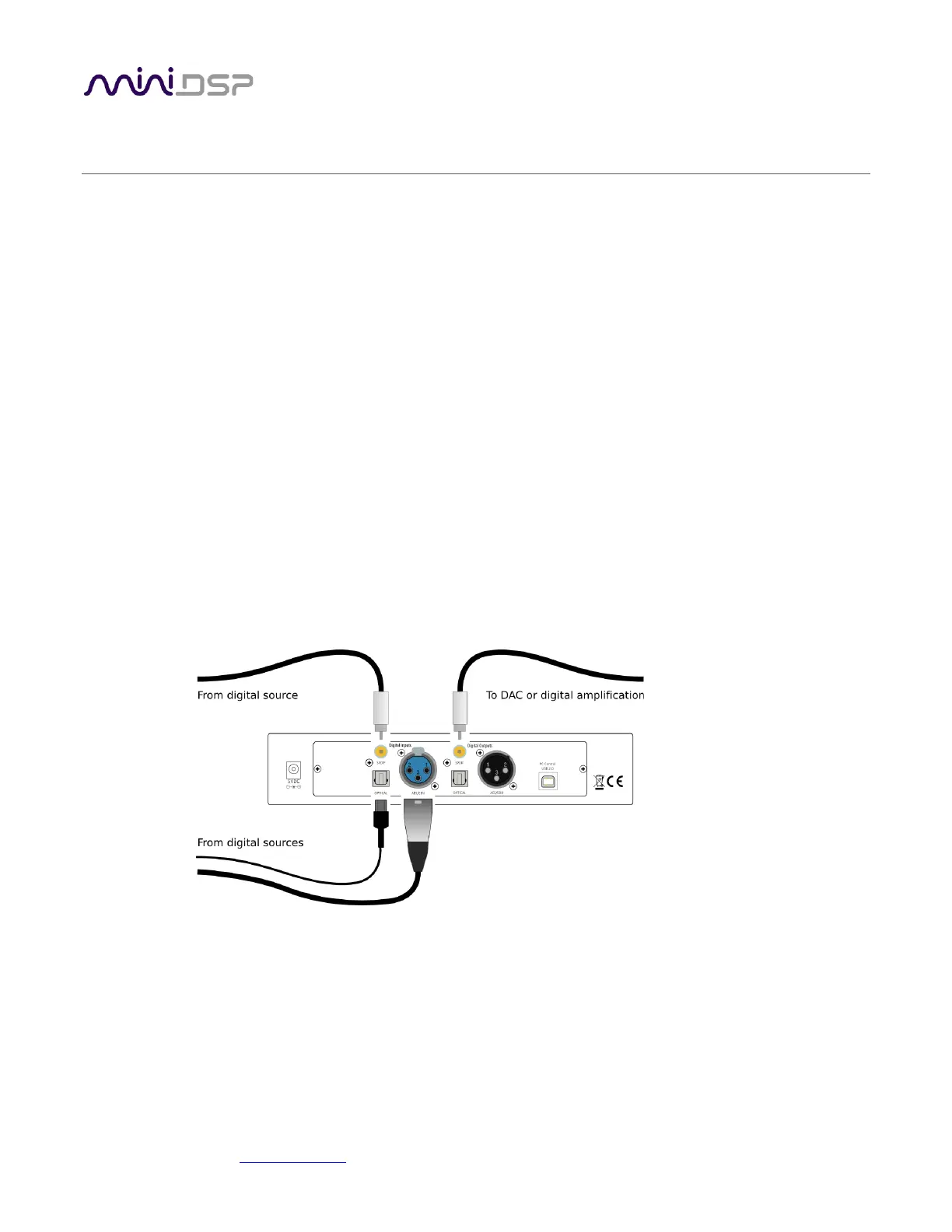

DDRC-22D connections
