2-4 CONNECTION TO THE DUST SUCTION SYSTEM
Connection to the dust suction system is compulsory for the right operation of the machine.
Always work with main dust exhaust system running.
If plastic tubes are used these must be flameproof.
Exhaust manifold must be fitted externally to dust suction hood to avoid chips jamming.

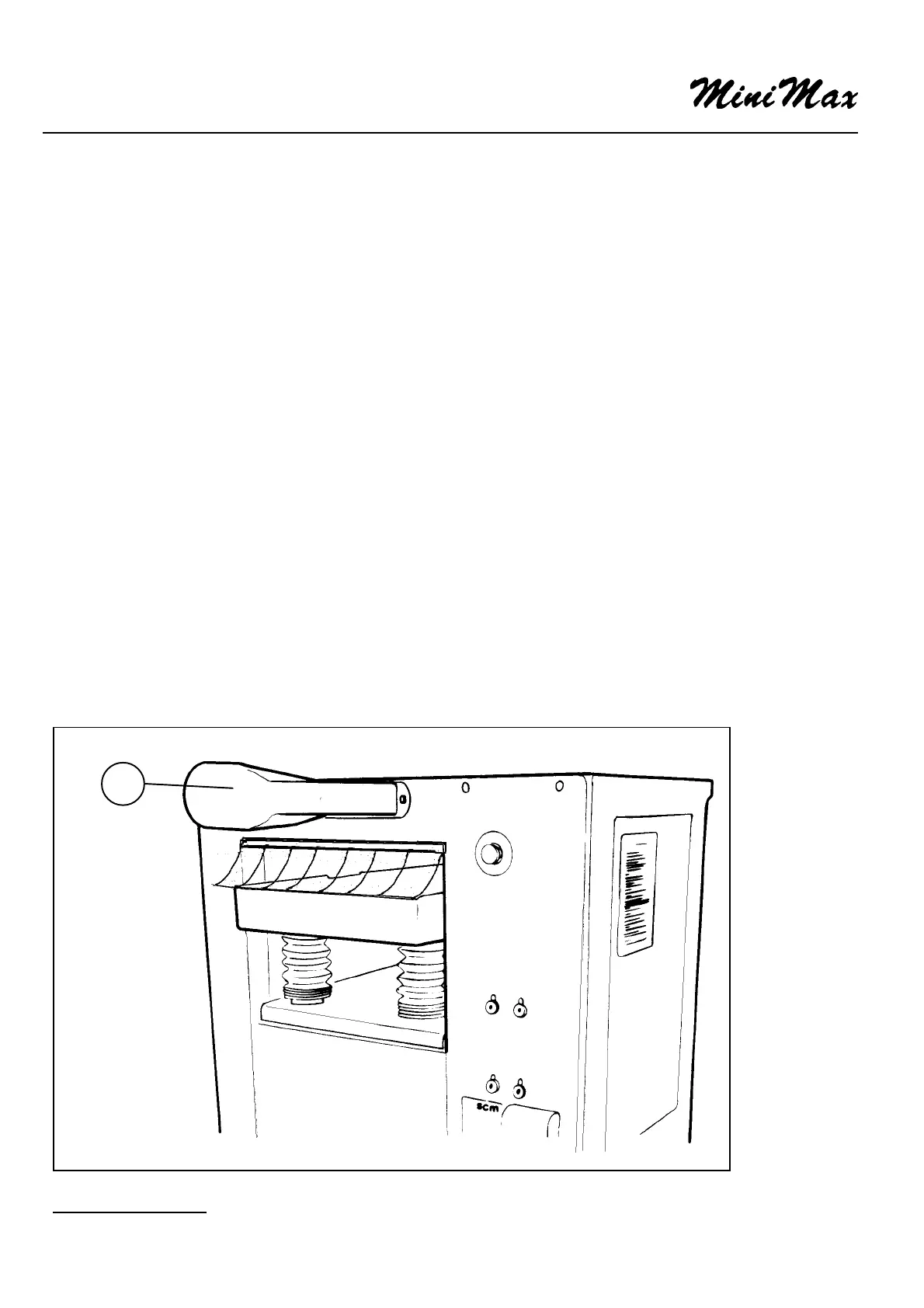

The machine isequipped with a suction hood (C fig.2.4) that ends with a 150 mm fitting
The dust suction system must ensure a flow equal to 1000 m
3
/h at a flow speed at least of 20 m/s.
The right operation of the suction system reduces the risks due to dust inhalation and ensures the safe working.
Other factors which reduce the dust emission in the working environnement:
Correct servicing of tools, machine and dust exhaust system
Correct ratio between cutting speed and feed speed
Correct adjustment of exhaust hood
Correct use of dust protections.
2-5 SAFETY DEVICES
Emergency pushbutton at outfeed
Safety micro-switch on exhaust hood
