MiniMax FORMULA SP1 - Substitution of Belts; Adjusting the Chain Tension

ADJUSTMENTS
9.10 SP1
BCGB9BCGB9
BCGB9BCGB9
BCGB9
C
9.8
9.7.1 SUBSTITION OF BELTS
Before substituting belts, turn switch to zero and write this on a card.
1) Remove cover (F fig.9.6)
2) Loosen screw (Z fig.9.7)
3) By using a lever lift the motor and keeping it in this position withdraw the worn belts, then fit the new ones.
4) Lower the motor and screw down screw (Z fig. 9.7)
5) Stretch the belts as previuosly described.

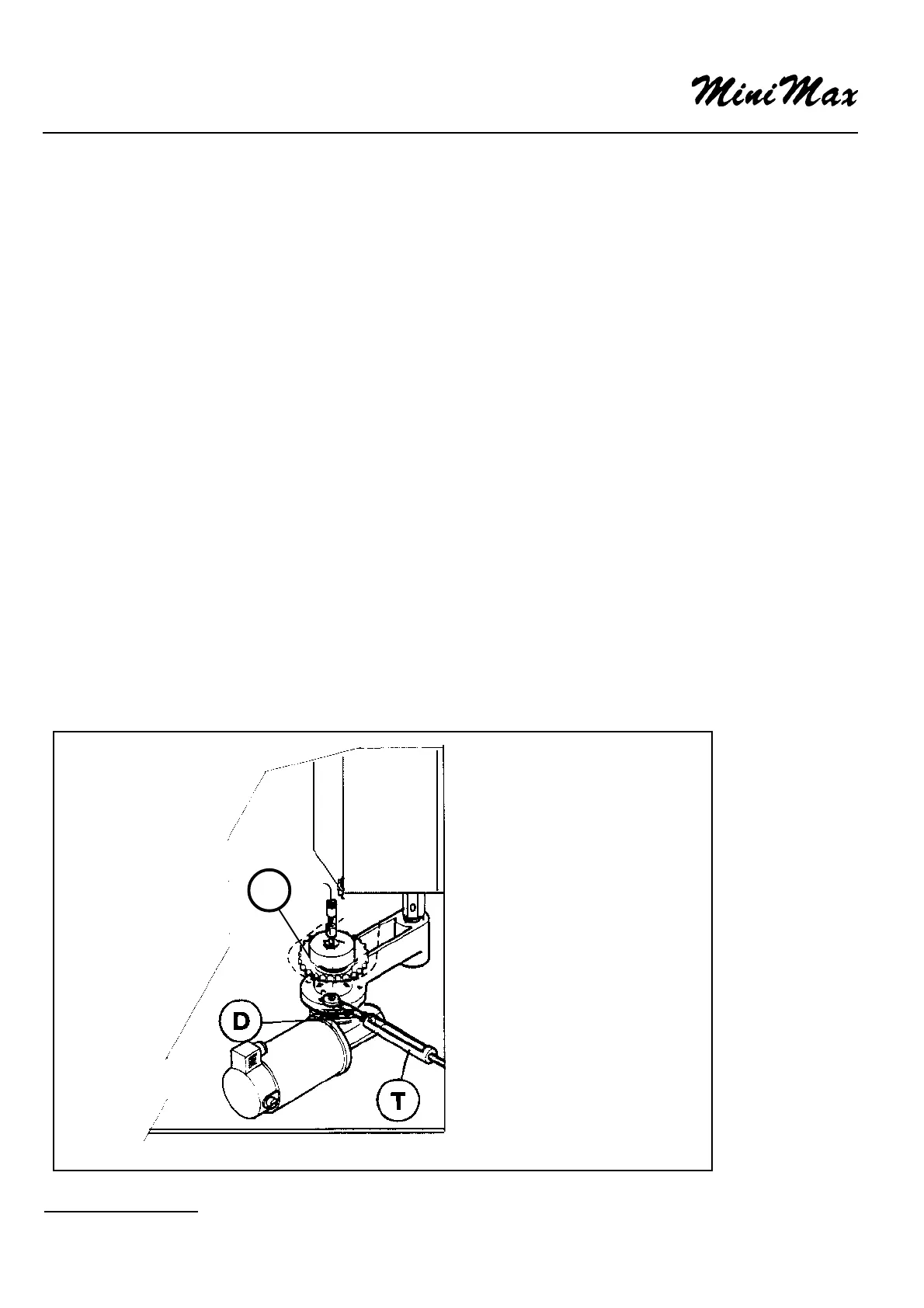

9-8 ADJUSTING THE CHAIN TENSION
After the first 40/60 working hours check the tension of the chain (C fig.9.7).
- Turn main switch to 0 and hang a sign indicating it.
- Take off side cover (F fig.9.6)
- If necessary loosen counternut (D fig.9.8)
- stretch the chain by tie rod (T fig.9.8).
- tighten counternut (D).
