9-6 KNIFE ADJUSTMENT
NOTE: Always wear gloves when handling knives and cutterblock
For adjusting the knife projection proceed as follows:
1) Open the top hood (D fig.9.3)
2) Unscrew knob (C fig. 9.3.)
3) Remove guard (A fig.9.3)
4) Turn selector (F fig. 9.3) to to release motor brake
5) Rest knife setting gauge (B fig.9.4) on the support and fasten it with knobs (P fig.9.4).
6) Manually turn the cutterblock and insert pivot (E fig.9.4) into the groove between gib and cutterblock.
7) Fully loosen screws (T fig.9.5): in this way the knife is pushed against the 2 screws (V fig.9.4) by the springs
in proper seats on the cutterblock.
8) Tighten all screws (T fig.9.5) beginning from the central screw, then alternately tighten the other ones.
9) Carry out the same operation for all other knives.
10) Turn selector (F fig. 9.3.) to to block motor brake
NOTE: max.knife projection from the cutterblock: 1 mm.
IMPORTANT
Keep the knives and gibs always clean to ensure the best performance of the machine.
Remove resin residues, sawings and chips with a hard bristle brush and a suitable diluent.
Never use other different products or synthetic solvents.
With a strong jet of compressed air remove dirt then dry each part.
Clean the worktable with a dry cloth.

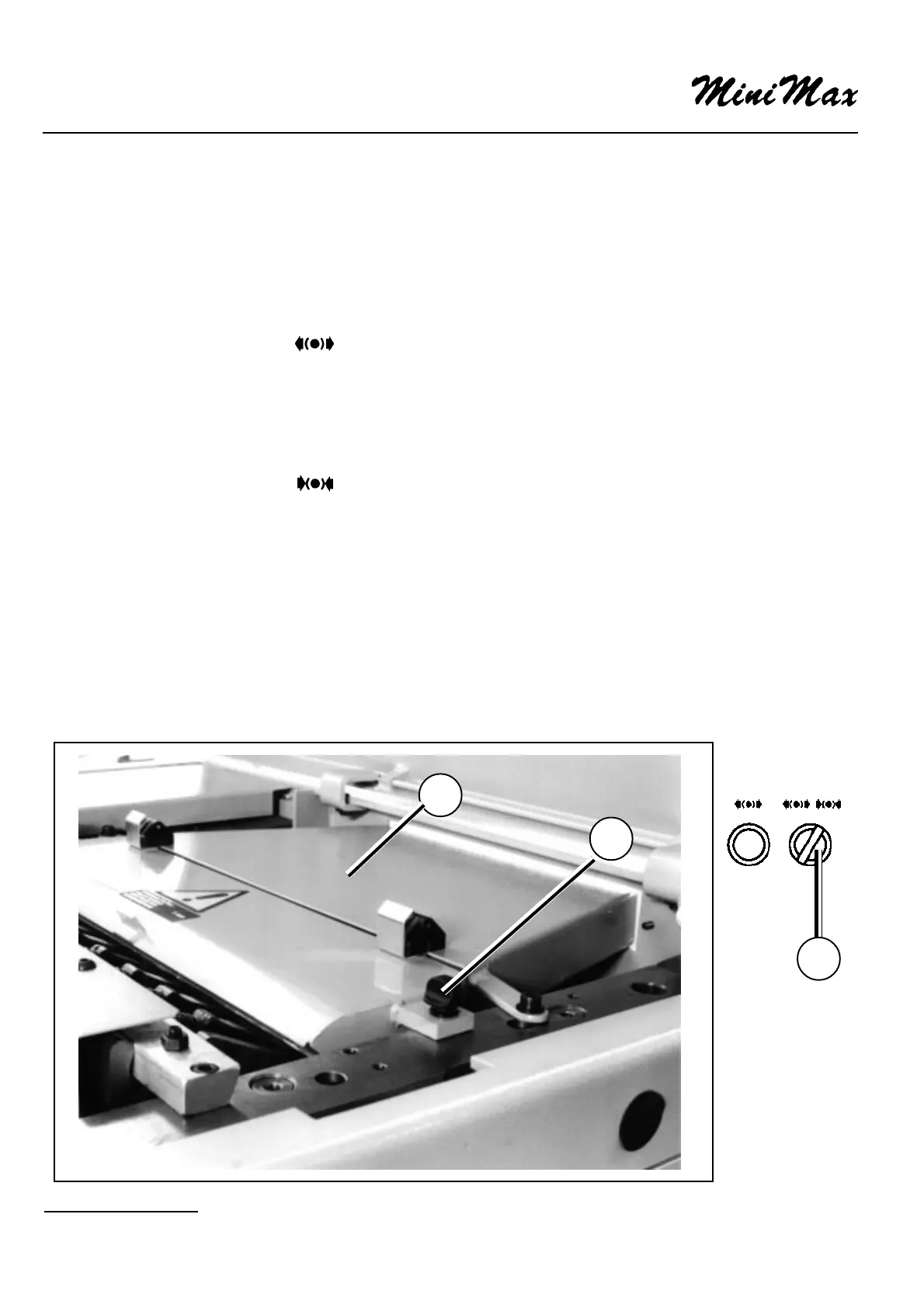

9.3
