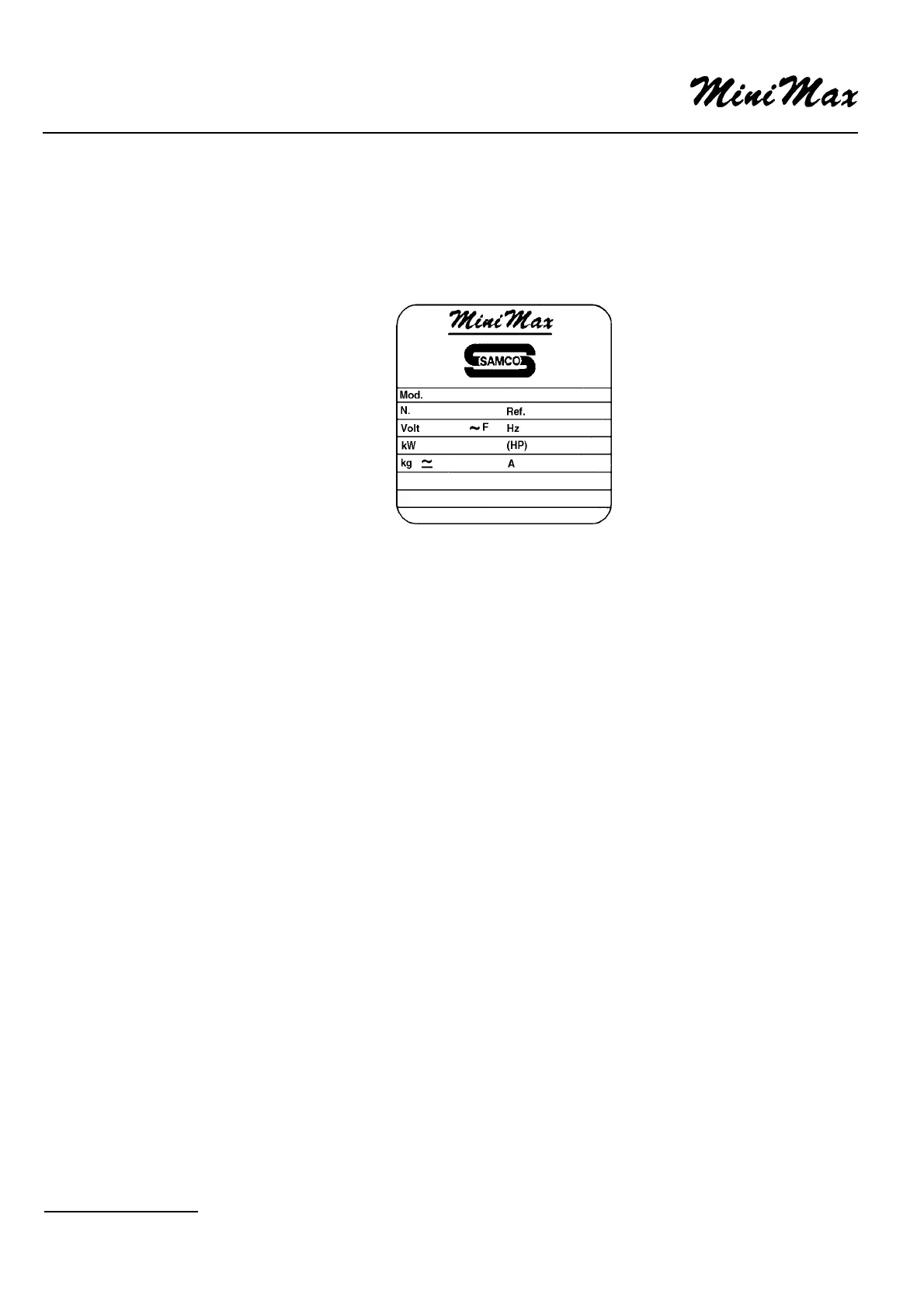

1-3 MACHINE IDENTIFICATION
Machine data are punched on the metallic plate on the machine frame side.
Mod. Machine model
N. Serial number
Ref. Internal reference
kg Gross weight
Volt Voltage (Volt)
F Phase number
Hz Frequency (Hz)
A. Electric input (Ampere)
kW Installed power
1-4 CONDITIONS FOR USE
This machine has been designed for planing solid wood and wood based pieces; any different use of the machine
can cause damages for which the user will be held responsible.
N.B. The machine cannot be used in an environment where explosives are stored.
The machine is designed for use in an industrial environment
DIMENSIONS OF WORKPIECE TO BE PLANED
Max. thickness: 250 mm
Max. length: is not a fixed one. The use of infeed and outfeed table extensions
(not supplied by SCM) and vertically adjustable, is compulsory when
machining workpieces longer than 2000 mm
Max. width: 520 mm
Min. thickness: 3 mm
Min. length: 220 mm
Min. width: 10 mm
