Minuteman e20 - Horizontal Adjustment

17
Machine Overview
12
3
Plate Position 1
(Shipping Position)
Plate Position 2
Plate Position 3
(Fully Extended)

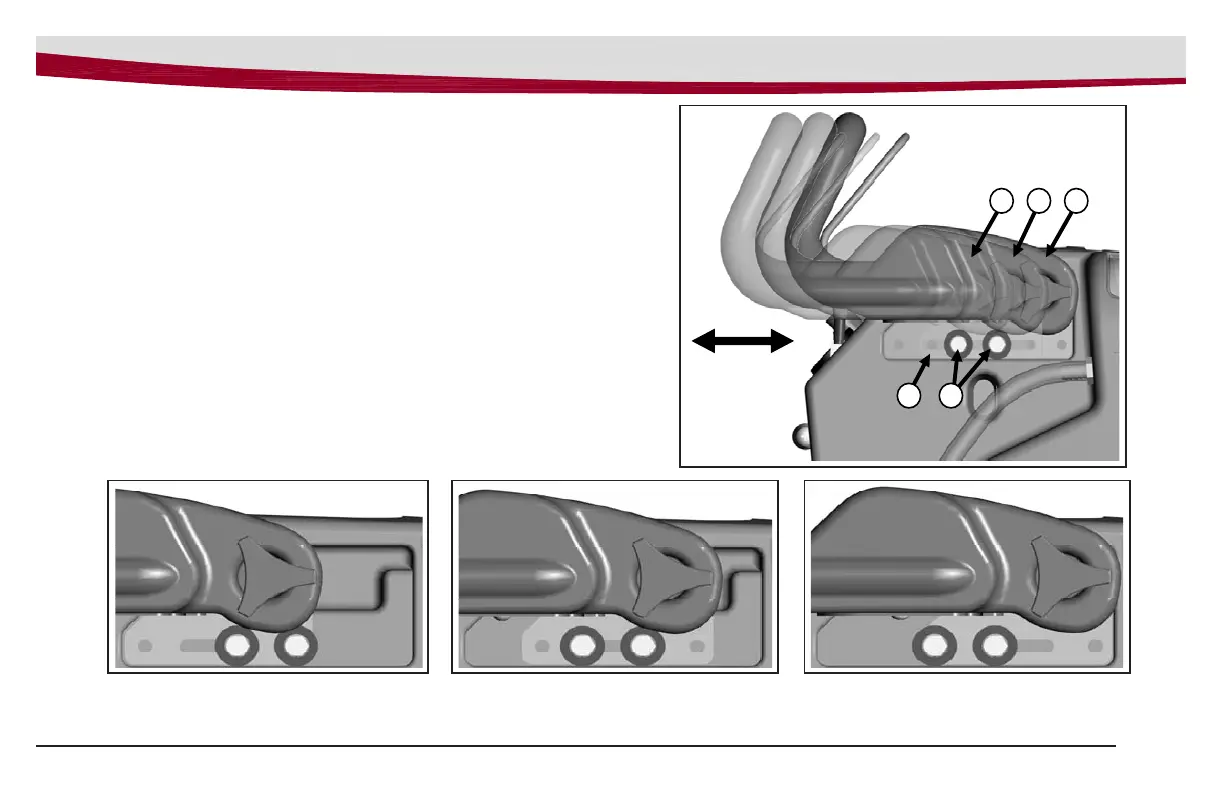

Horizontal Adjustment
The horizontal position can be adjusted by removing the 4 Mounting
Bolts (B) (2 each side) with a 9/16” socket and sliding the Mounting
Plate (P) to one of the 3 available positions. The machine is shipped
from the factory in position 1.
PB
