Machine Overview

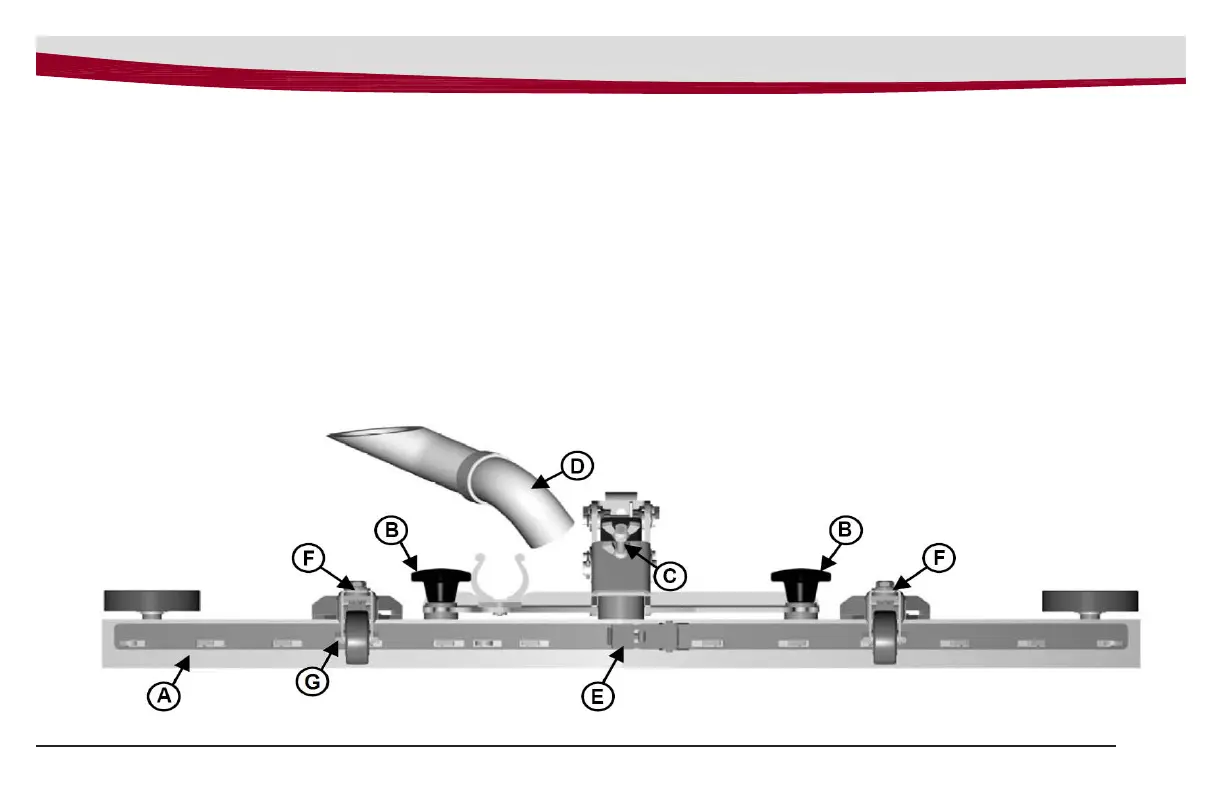

Rear Squeegee
A Squeegee
B Star-shaped knob
C Adjusting screw for angle adjustment
D Suction hose
E Blade fastening latch
F Washers for caster height adjustment
G Caster Wheel Axle
Cleaning the Squeegee
Check the squeegee (A) daily and clean as
necessary.
1. Pull off the suction hose (D).
2. loosen the two star-shaped knobs (B).
3. Remove the squeegee (A).
Changing the Squeegee Blades
Check the inner and outer squeegee blades on
the squeegee (A) weekly for signs of wear. The
squeegee blades can be reused by turning them
(can be turned for 4 total uses).
1. Pull off the suction hose (D), loosen the two star-
shaped knobs (B) and remove the squeegee.
2. Unlock the fastening device (E) and remove the
outer squeegee blade. Turn the squeegee blade
or install a new one, as necessary. Change the
inner squeegee blade in the same way.
