Minuteman e20 - Brush Deck Maintenance

26
Machine Overview
To Install To Remove

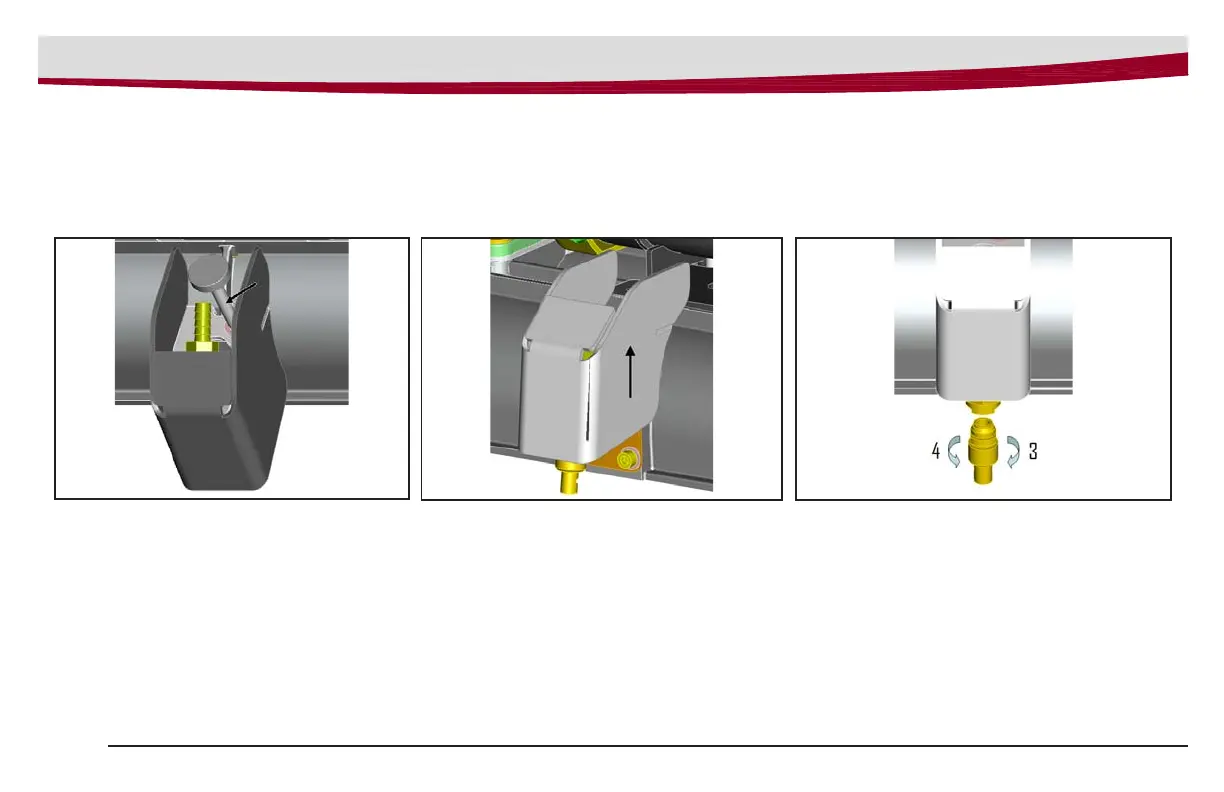

Figure 1 Figure 2 Figure 3
Spray tip removal and installation for cleaning
1. Remove knob located above sprayjet (Figure 1).
2. Pull sprayjet cover up and hold for easy access to spray tip (Figure 2).
3. Remove spray tip by hand by pushing the tip up into the nozzle body and rotate 1/4 turn clockwise (Figure 3).
4. Reinstall by pushing spray tip up into the nozzle body and rotate 1/4 turn counterclockwise until tip will not turn (Figure 3).
NOTE: Ensure that the tip is facing toward the deck.
Brush Deck Maintenance
Sprayjet Maintenance
The sprayjets deliver solution to the floor. The spray tip should be cleaned weekly to ensure good cleaning results.
