Enclosure Installation
TX3 Telephone Access System Installation and Operation Manual 27
2.3 Installing the Heater
For temperatures where the Telephone Access System operates below 0 °C
(32 °F) at any time, a heater must be installed inside the Universal enclosure as
shown in figure 9.
For additional information refer to LT-653 TH-102 Heater Installation
Instructions.

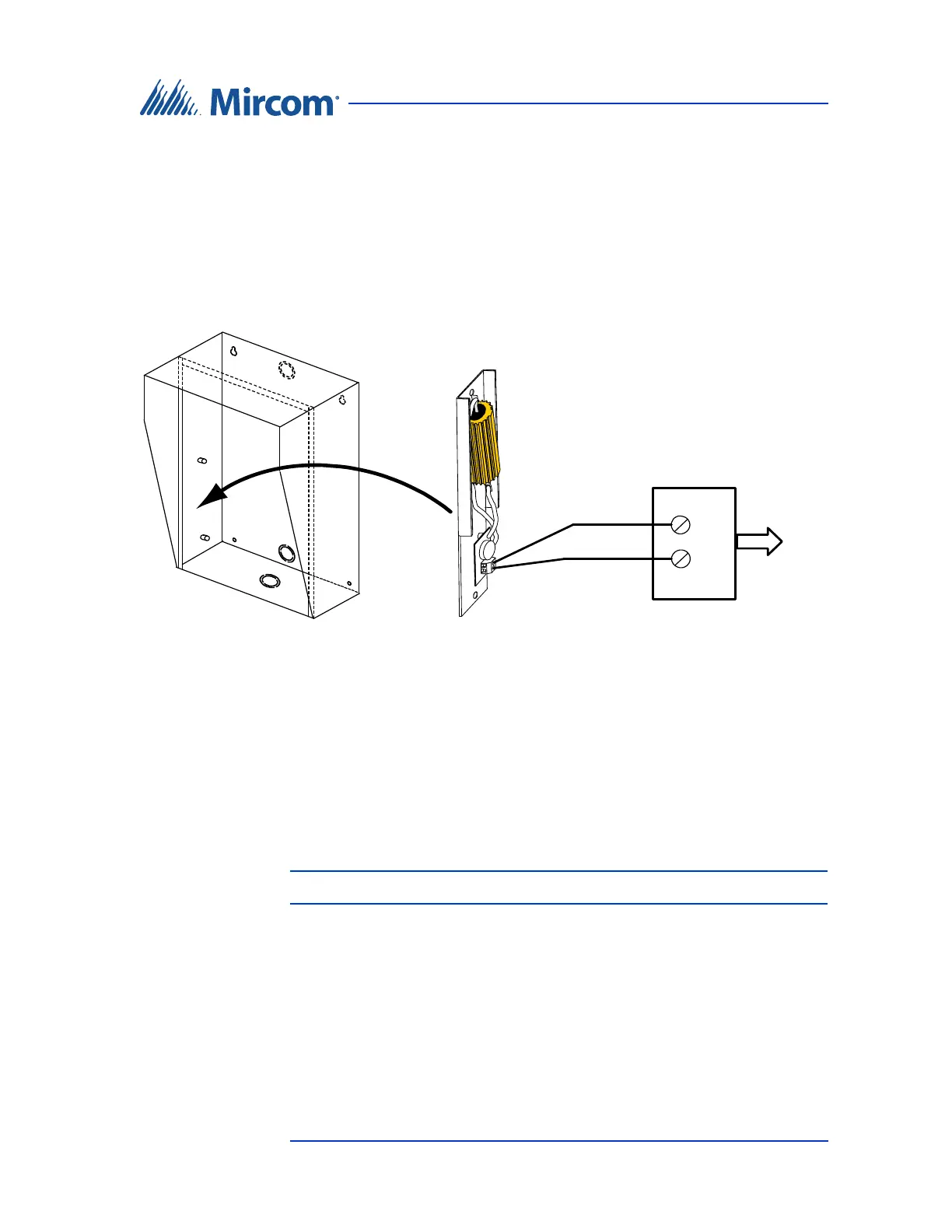

Figure 9. Heater TH-102 Installation Location
To install the heater
1. Place the TH-102 Heater into the bottom left hand corner of the Universal
enclosure and secure using the two supplied spacers and two hex nuts.
2. Connect the TH-102 heater to the PS-24 Transformer 24 Vac terminal
screws using a pair of #18 AWG wires.
Note: The transformer must be installed outside the enclosure.
24V AC
PS-24 TRANSFORMER
18 AWG
TWISTED PAIR
120V AC
60 HZ
UNIVERSAL
ENCLOSURE
TH-102 HE ATER
